REUNION - Cheoy Lee FOR SALE

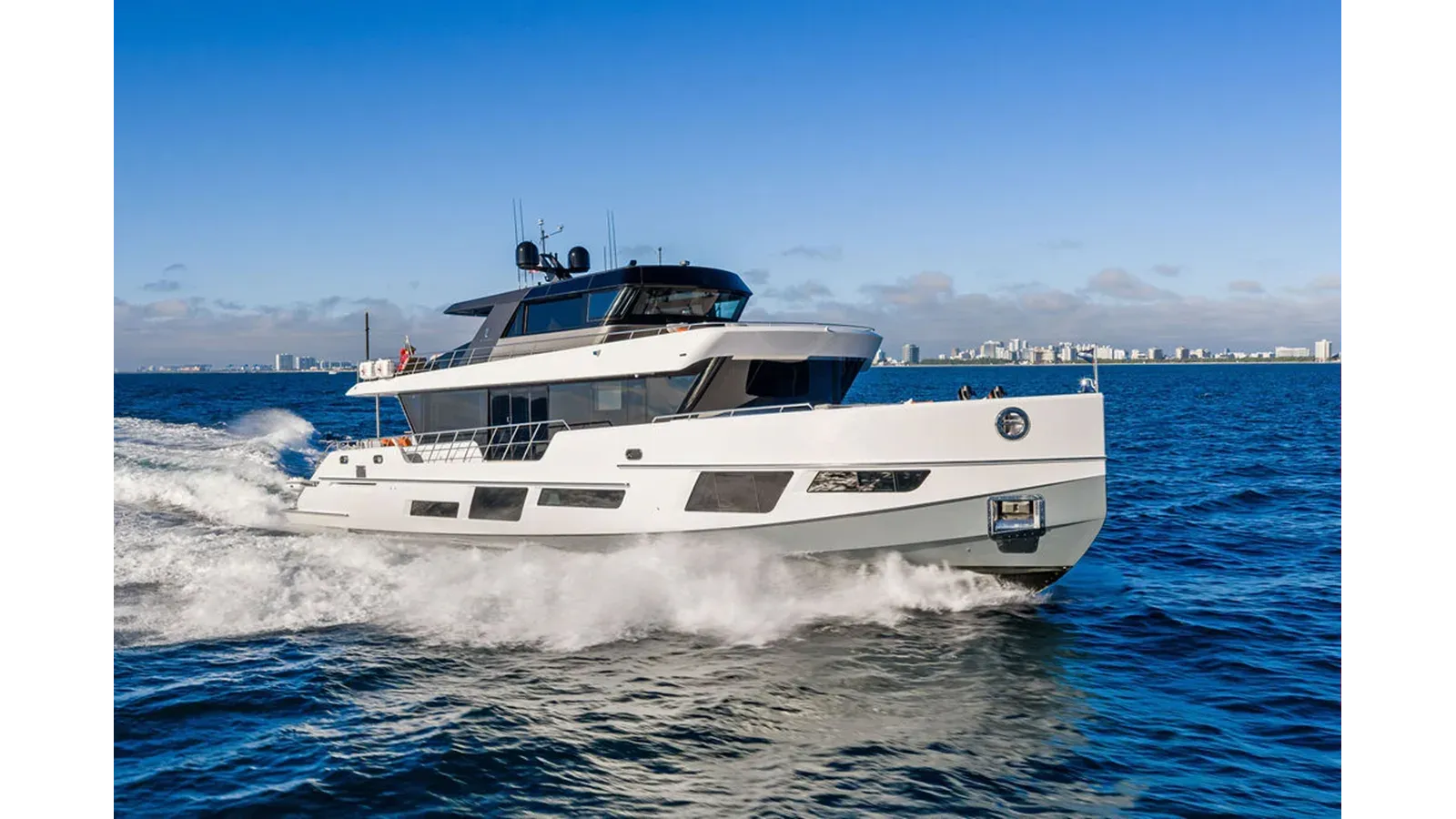

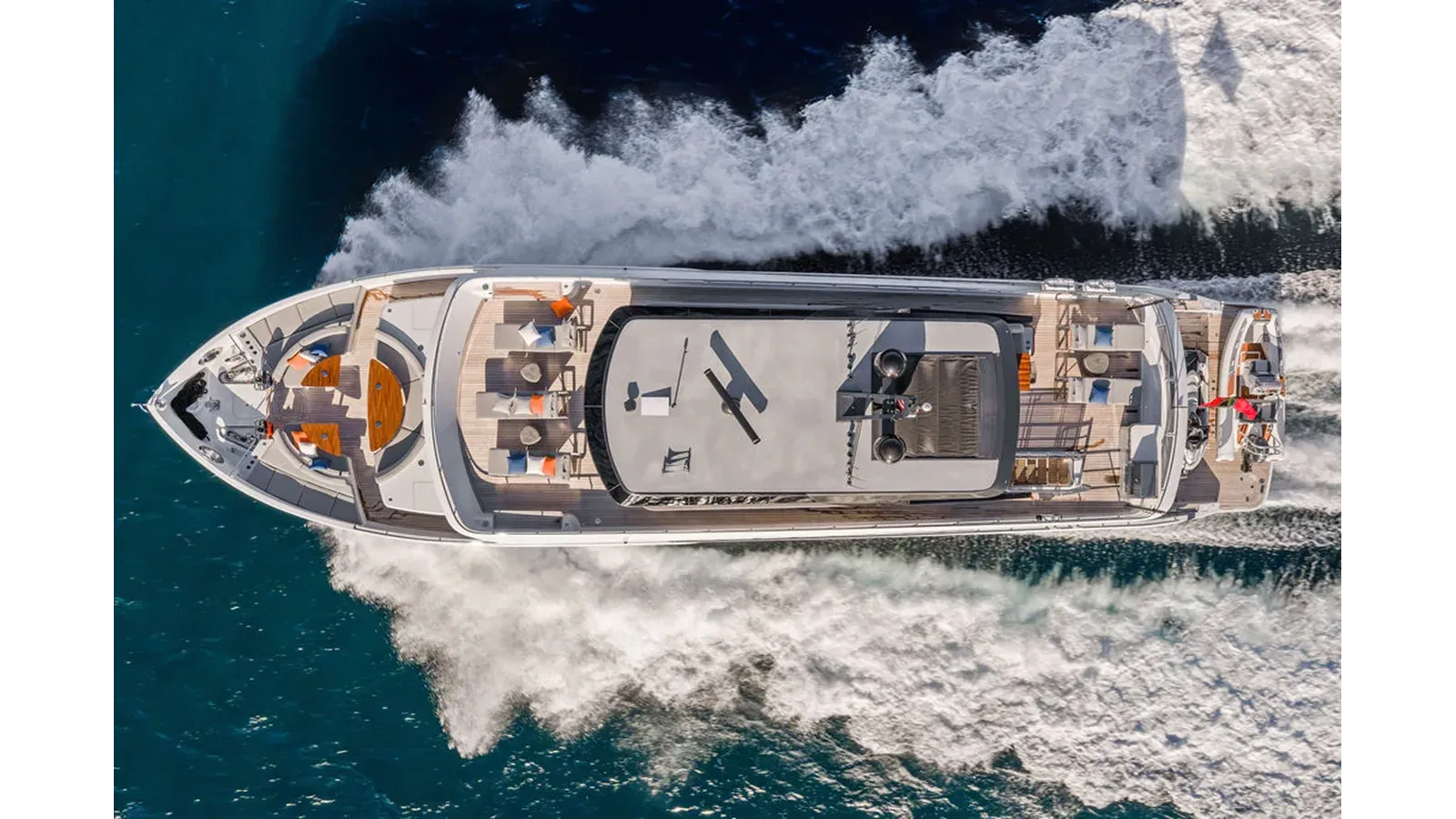

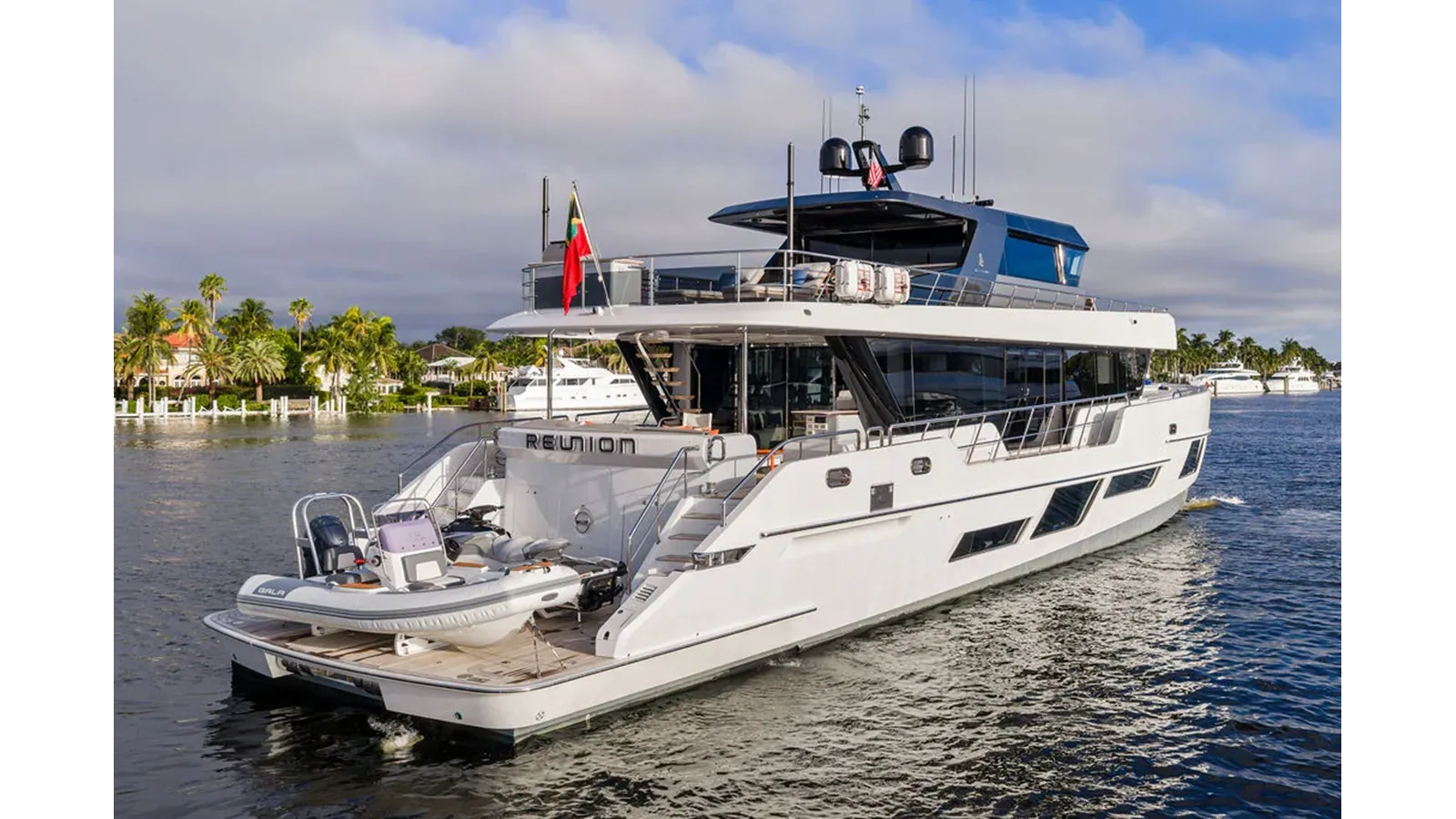

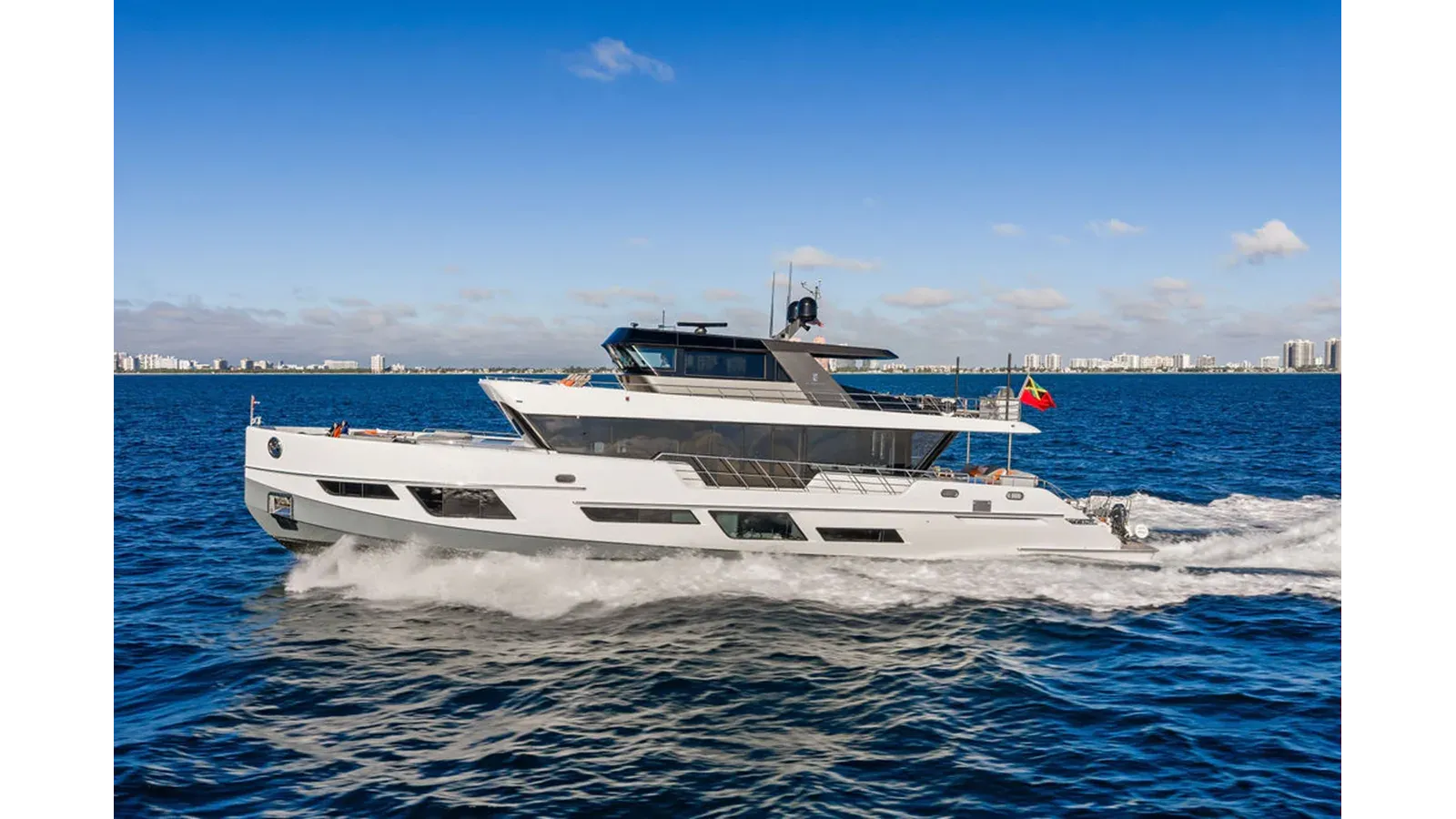

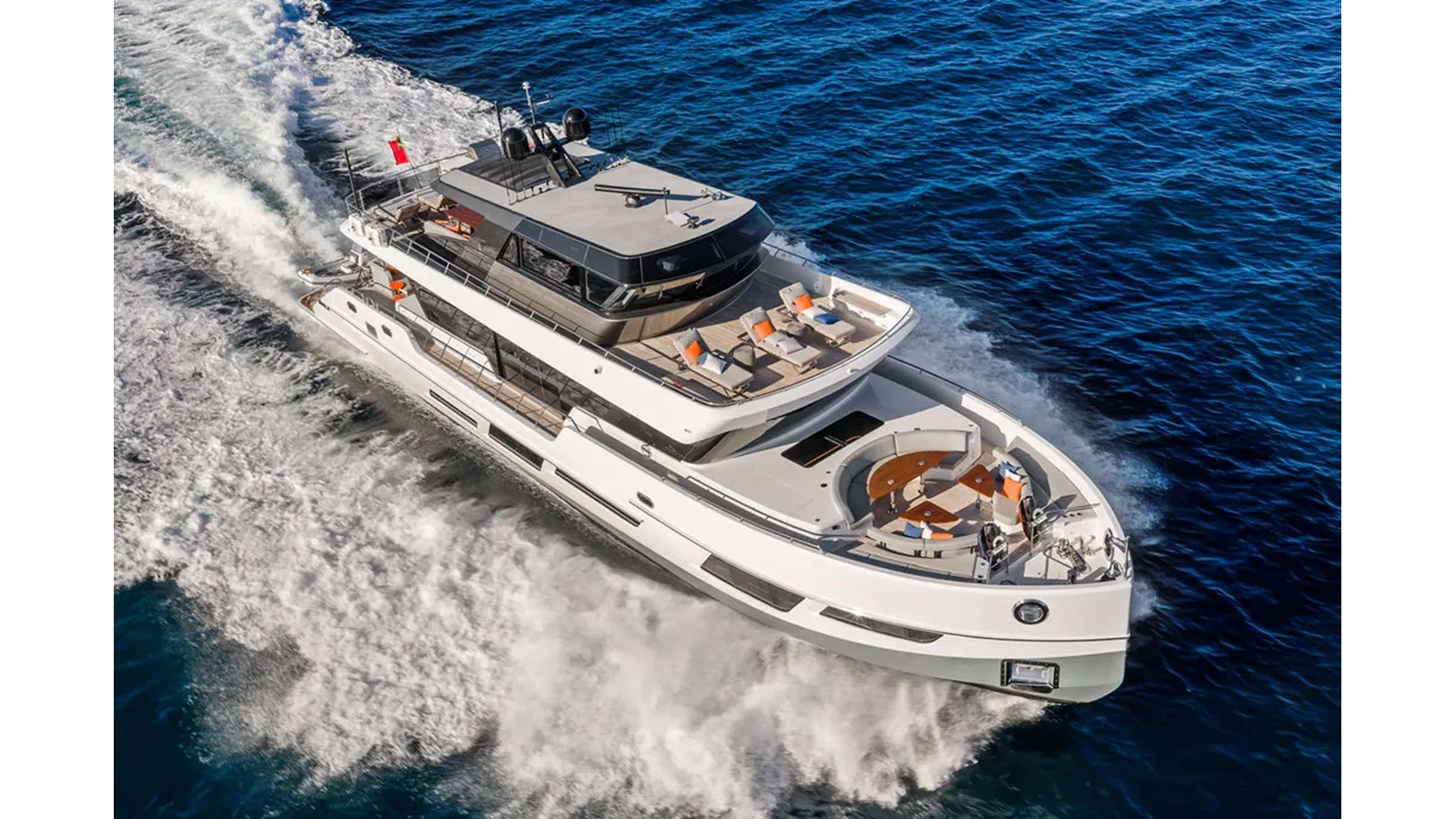

This 2022 CL Yachts CLX96, REUNION, stands as the flagship of the acclaimed CL Yachts X Series, redefining expectations among 90–100 foot flybridge motor yachts by marrying tough, go-anywhere bluewater capability with a loft-inspired interior and expansive social zones uncommon in her class.

Measuring 96'9" (29.50m) LOA with a 24' beam, this luxury motor yacht is driven by twin Caterpillar C32 ACERT diesels for a 25-knot maximum and a 22-knot cruise. Crafted in composite to RINA classification and backed by a 10-year structural hull warranty, she accommodates 8 guests in 4 staterooms plus 4 crew in 2 cabins, equally adept at effortless entertaining on the hook or logging miles on an extended superyacht voyage.

Optional equipment

Refine and personalize performance and comfort with a suite of optional equipment that elevates every passage. A gyro stabilizer anchors the ride, complemented by an upgrade to at-rest fin stabilization for serene comfort at anchor. Precision maneuvering is assured by the SIDEPOWER hydraulic stern thruster, while a set of twelve 60mm carbon fibre poles serves the flybridge foredeck and swim platform. Safety and tender handling are strengthened by a life raft and chocks, together with tender chocks on the swim platform complete with backing plates and deck and flush tie down eyes. Interior convenience includes powered window shades in place of manual and a stacked 24” washer/dryer in the crew lounge. For extended independence, specify a watermaker with choices of BLUE WATER legend 950/2, BLUE WATER legend 1500/2, or BLUE WATER legend 1850/2. Deck operations are eased by a fold down davit (800kgs) positioned under the watertight hatch on the port side of the swim deck. Compliance and connectivity are heightened by RINA C + HULL•MACH; Y Certificate, KVH Trac Vision UHD7 for Direct TV, and Sirius XM satellite radio.

Construction

Crafted with a cored fiberglass hull, deck, and superstructure, complemented by cored fiberglass bulkheads and cabin soles, this yacht employs infused bi-axial and multi-axial E-glass and carbon fibre laminates set in vinylester resin to deliver exceptional strength, stiffness, and durability. Integral fiberglass fuel, fresh water, and holding tanks are engineered with internal baffles and convenient cleaning manholes, while a fiberglass rub rail with stainless steel capping protects the sheer. The glazing suite features laminated tempered glass windows that are tinted throughout, except in the pilothouse to preserve uncompromised visibility. The exterior presents a lustrous ALEXSEAL finish with ALEXSEAL non-skid applied to all exterior decks, and is elevated by teak decking on the aft deck, swim platform, flybridge deck, side deck, and foredeck. All deck hardware is fabricated from 316 stainless steel for superior corrosion resistance. Below the waterline, a SEAHAWK epoxy barrier system is applied to the hull bottom and safeguarded by two coats of SEAHAWK antifoul bottom paint. The build is validated by a RINA Hull Construction Certificate.

Deck hardware

Commanding ground tackle is handled by two hydraulic MAXWELL VWC 4000 windlasses fitted with 1/2” gypsies, rope capstans, and chain stoppers, matched to two 80 kg HHP Pool Type anchors and two 250’ lengths of 1/2” high-test galvanized chain, with local windlass controls complemented by a remote at the helm station. The side deck overhangs feature walkway lighting, while polished chrome courtesy lights and step lights illuminate the moulded stairs, and a fresh water anchor wash down stands ready for quick cleanups. Mooring and line handling are assured by four stainless steel mooring bollards and six stainless steel fairlead/spring cleats, all set beneath robust 1.25” stainless steel rails; a stainless steel burgee flag staff graces the bow alongside a stainless steel flag staff, and boarding gates to port and starboard on the aft deck ease embarkation. Practical details include step plates at deck entrances, scuppers draining to the boot top, and foredeck hatches providing storage and chain locker access, while 60 mm sockets on the flybridge and swim platform accept sunshade poles, with the sunshade and poles optional. For secure aft deck handling, two MAXWELL 85 TDC Vertical capstans with local controls complete the specification.

Interior finishes

A refined Portofino walnut interior sets the tone, complemented by painted ceilings throughout, with the exception of the lower deck foyer and the champagne lounge ceiling. Hardwood floors grace the guest accommodation, while the salon and pilot house showcase stained teak and holly. Surfaces are elevated with CORIAN, where specified, in a Solid Series colour selection, and durable quartz countertops enhance the galley and wet bar. Crew areas benefit from resilient AMTICO flooring, and both indoor and outdoor seating are upholstered for enduring comfort. In the guest heads, sintered stone tiles finish both walls and floors. The specification is completed by a loose furniture package including chairs and a chaise lounge, together with a soft goods package including a bed cover, a runner, and a throw pillow.

Electrical systems

The yacht’s electrical architecture is anchored by a CZONE monitoring and alarm system overseeing 220/110 VAC, 50/60 Hz and 24/12 VDC electrical panels, with the main panels in the engine room and sub-panels distributed throughout the yacht. Night operations are enhanced by an ACR 100 searchlight with dual station remote control, LED navigation lights, and LED illumination throughout the interior and exterior, including cabinet and step lighting dimmable in key areas, complemented by automatic wardrobe lights. Emergency lights activate automatically upon loss of the primary lighting system and are supported by an independent DC power supply, while GFI-protected AC outlets serve the galley, heads, and exterior.

Energy storage and charging are engineered for redundancy, starting with two 24 VDC 8D battery banks dedicated to engine starting and ship service, two 24 VDC 4D battery banks for generator starting, and one 24 VDC 4D battery bank for electronics paired with a 60 A 12 VDC VANNER power supply for 12 VDC electronics. Charging is provided by one 24 VDC 60 A battery charger, one 24 VDC 95 A battery charger, and one 24 VDC 45 A battery charger, and system flexibility is enhanced by a battery parallel system at the helm station. Shore power management features two GLENDINNING Cablemaster shore power cable retrieval systems, 230 VAC 100 A, supplied with two 100 ft. cables, and is safeguarded by two 100 A isolation transformers for the shore power systems with a paralleling controller, plus generator/shore power selector switches and a shore power polarity indicator.

Protection and grounding are comprehensive, with a copper bonding system tying all through hull fittings and major metal components to zinc anodes, a Dynaplate grounding plate and strap feeding pilothouse and flybridge ground terminal boards, and voltmeters and ammeters monitoring the supply circuits. For a dramatic presence after dark, six underwater lights complete the specification.

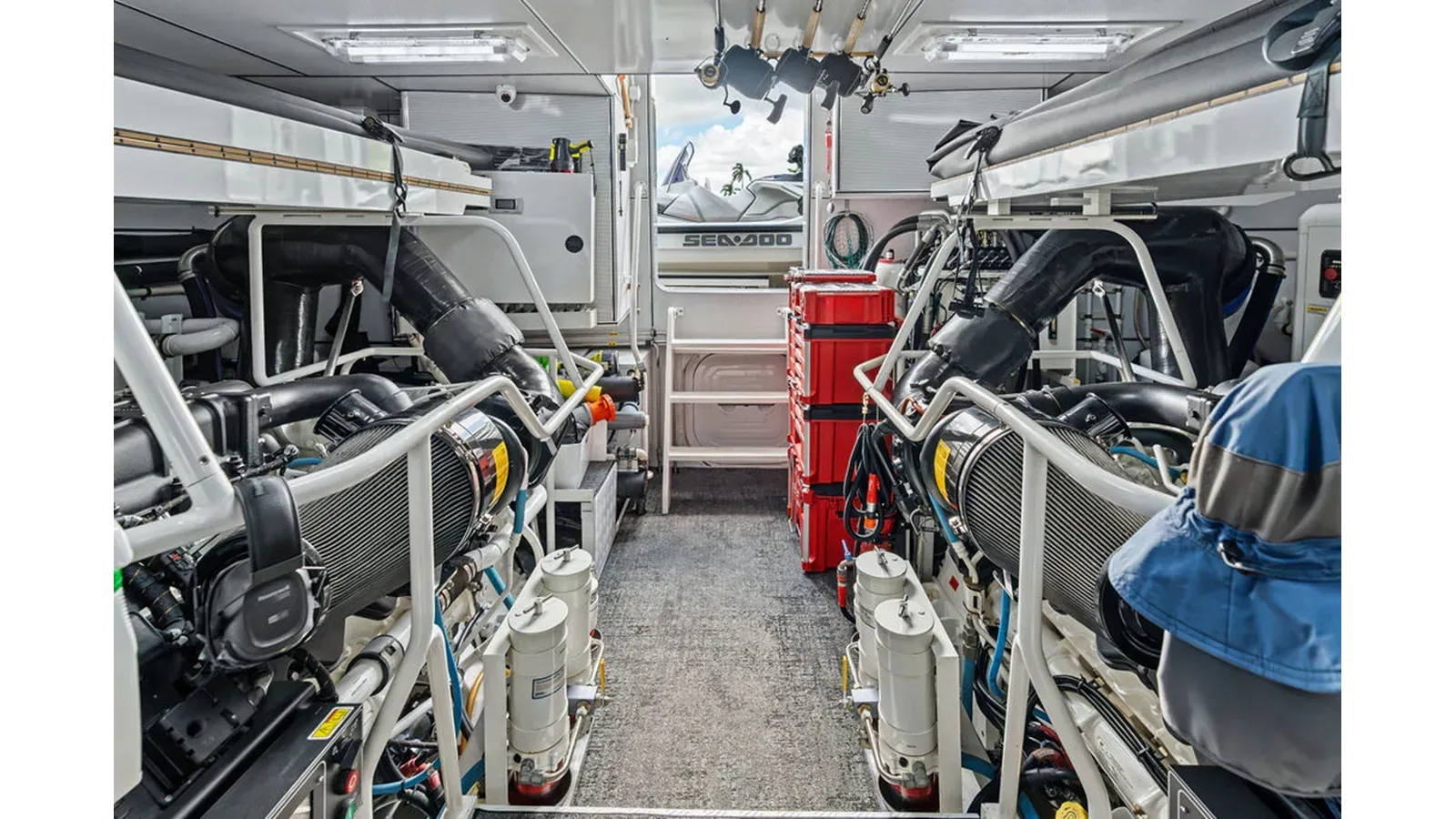

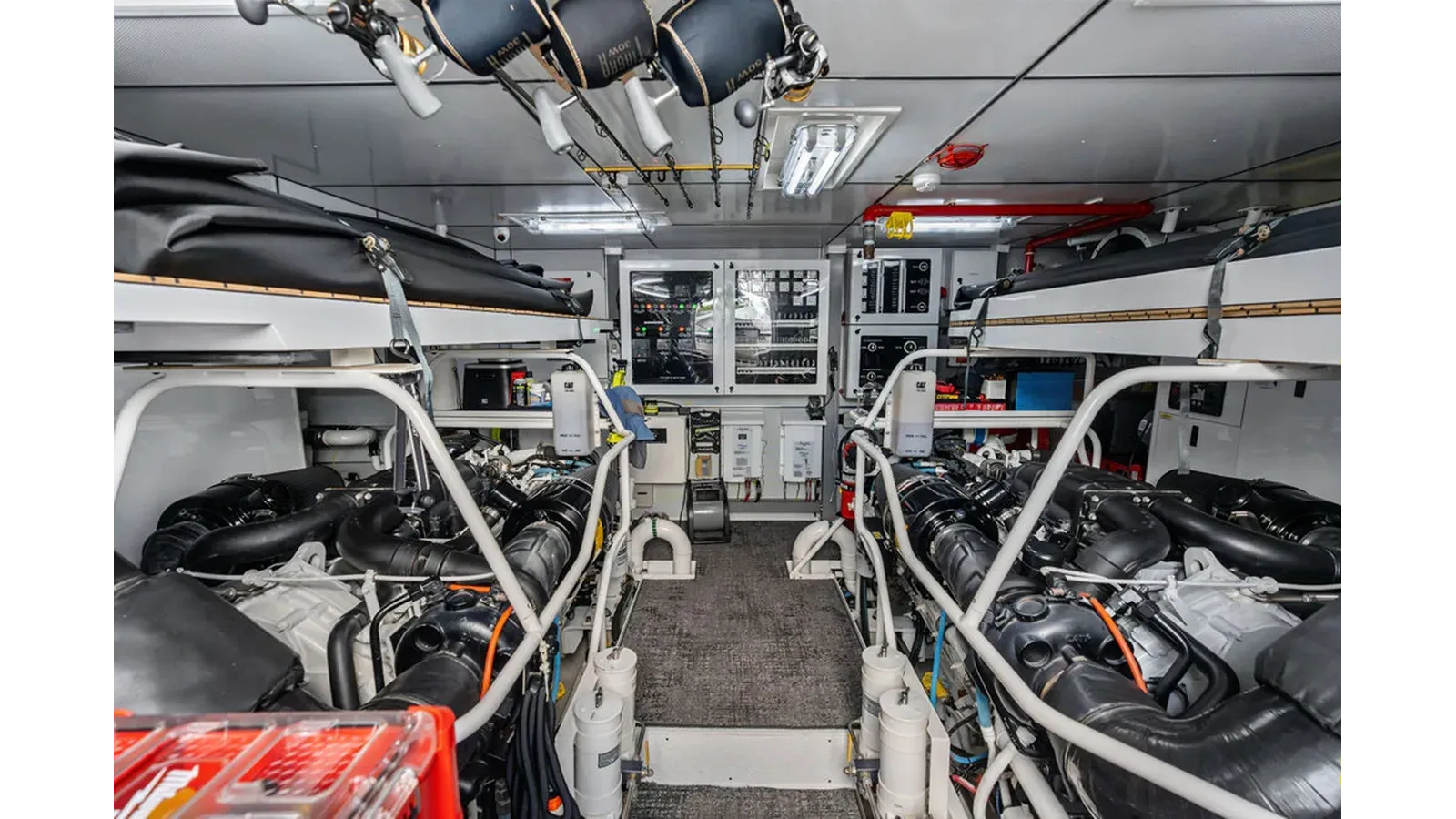

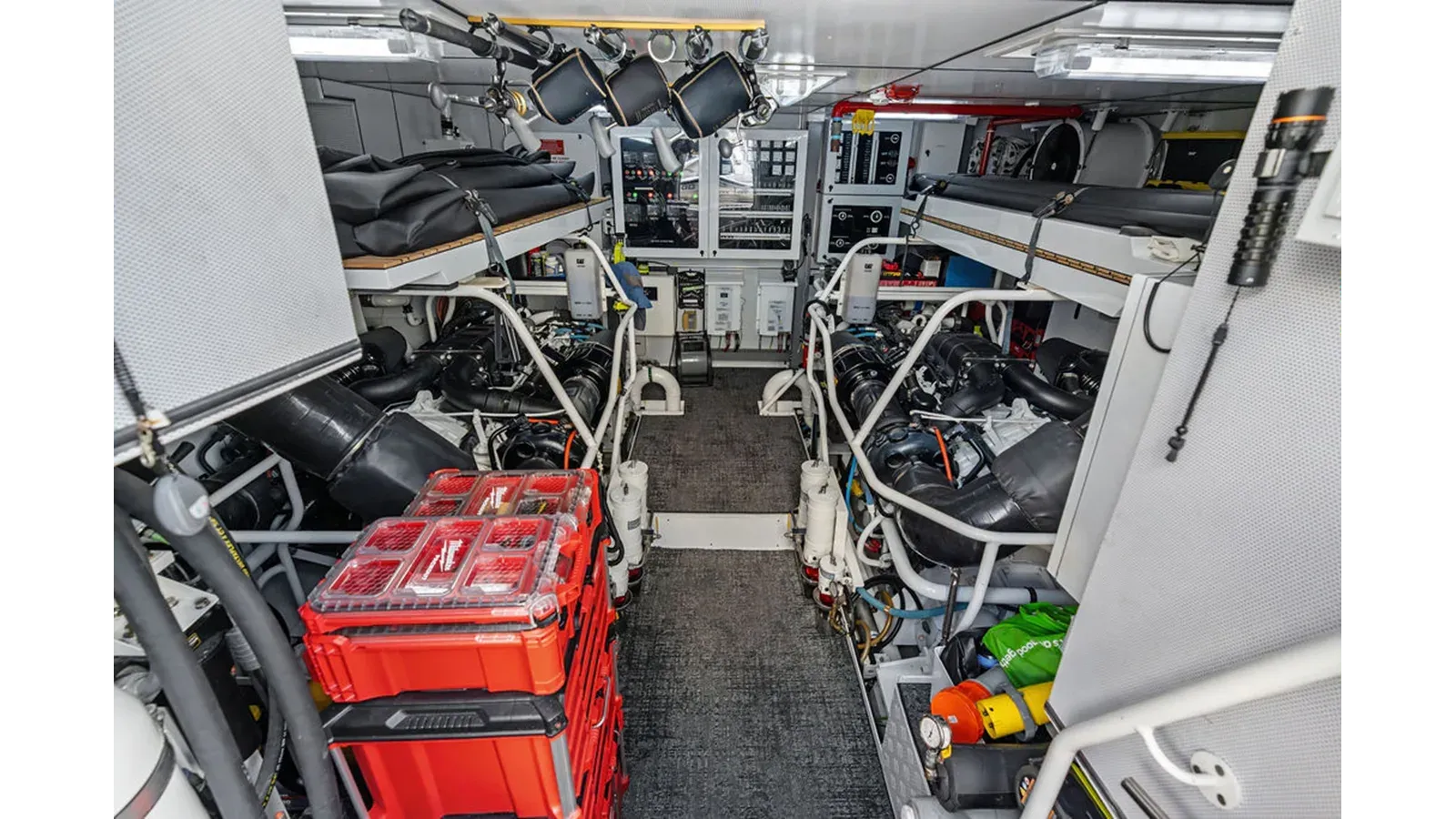

Engine room & machinery

At the heart of this yacht, twin CATERPILLAR C32 ACERT diesel engines, each delivering 1,900bhp, are fresh water cooled with 24vDC starting and are matched to ZF3050A reverse/reduction gearboxes; full engine warranty runs through January 25, 2028. Locally mounted start/stop instrument panels for the main engines and generators put control immediately to hand, while underwater exhausts with bypass and fiberglass mufflers keep operations smooth and composed. DELTA T engine room ventilation via air/water demisters promotes optimal airflow and a clean, dry machinery space.

Electrical power is assured by twin KOHLER generators, 45/53kW, housed in sound guards and governed by a Decision-Maker 3500 paralleling controller for automatic start, stop, parallel, and load share between generators. Comfort is maintained by 220vAC reverse cycle chilled water air conditioning (except engine room), and generator discharge is hushed by CENTEK combo generator mufflers, air/water separator type, with hull side exhaust. Fire protection consists of a manually and automatically actuated FM200 fire extinguisher system; upon system actuation audio/visual alarms sound, engines, generators, fuel lift pumps, fuel transfer pumps, and blowers are shut down and hull side ventilation dampers are closed.

Confident handling comes from a SIDEPOWER hydraulic bow thruster, a SIDEPOWER underway fin stabilizer system, and an OPTIMUS power steering system. Service and reliability are further elevated by a REVERSO lube oil change system with manifold and hoses to all engines and gearboxes, and by RACOR filters for main engines and generators. Domestic comforts include two 28 gallon water heaters with a hot water ring line and circulating pump for instant hot water, a HEADHUNTER Mach 5 water pump and accumulator tank for the fresh water pressure system, and a water filter (sediment and charcoal) unit for the whole system, complemented by a sink with fresh water hose bib. Safety and convenience are enhanced by automatic bilge pumps with electronic level detectors for each compartment, a fuel management system consisting of fuel shut-off valves and a fuel transfer pump with meter system, and comprehensive fuel, fresh water, black water and grey water tank monitoring. The black water holding tank system features a macerator pump for pump out of the holding tank direct overboard, or to a vented deck fitting for shore side disposal. The vessel is prepared for an ECOMAR sewage/grey water treatment system, including mounting, plumbing and electrical systems, and prepared for a watermaker, including mounting, plumbing and electrical systems.

Engine room infrastructure includes GROCO bronze raw water strainers for all engines and sea water pump intakes, seacocks on all through hull fittings below the waterline, fiberglass battery boxes, battery voltmeters, and comprehensive noise and vibration attenuation for the engine room space. Running gear features AQUALOY 22 or equal propeller shafts, stainless steel rudder blades, Nibral propeller shaft struts, and Nibral propellers, five-blade, class S, dynamically balanced. Precision interfaces are ensured by VESCONITE Hilube shaft bushings and TIDES MARINE rudder bushings, with TIDES MARINE shaft seals completing the assembly.

Illumination and protection are provided by AQUA SIGNAL LED overhead lights, a smoke detector, a heat detector, and AC GFI outlets. Practicality and safety are further underscored by a watertight entrance door from the crew area and a watertight emergency escape hatch from the engine room to the VIP stateroom.

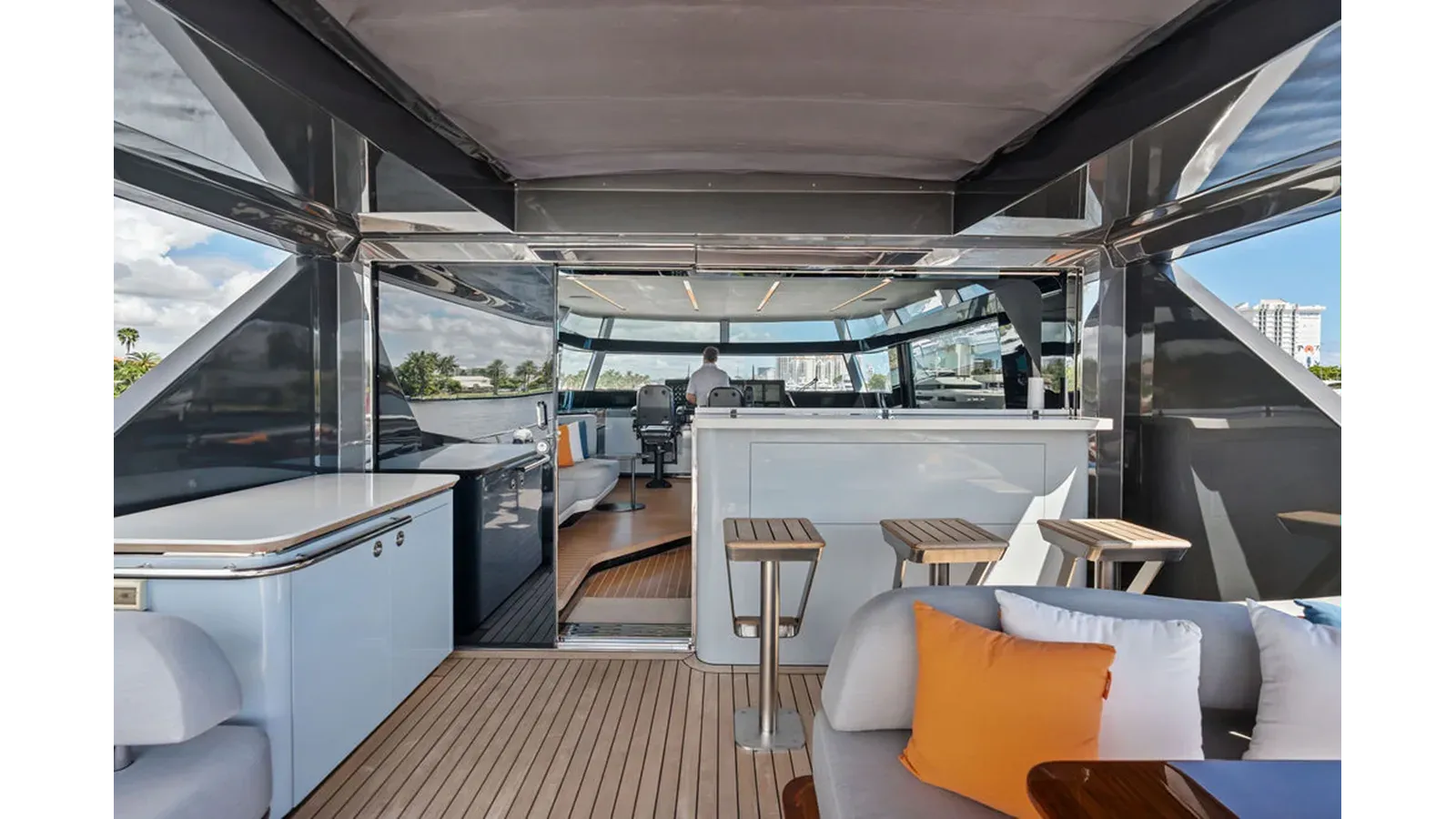

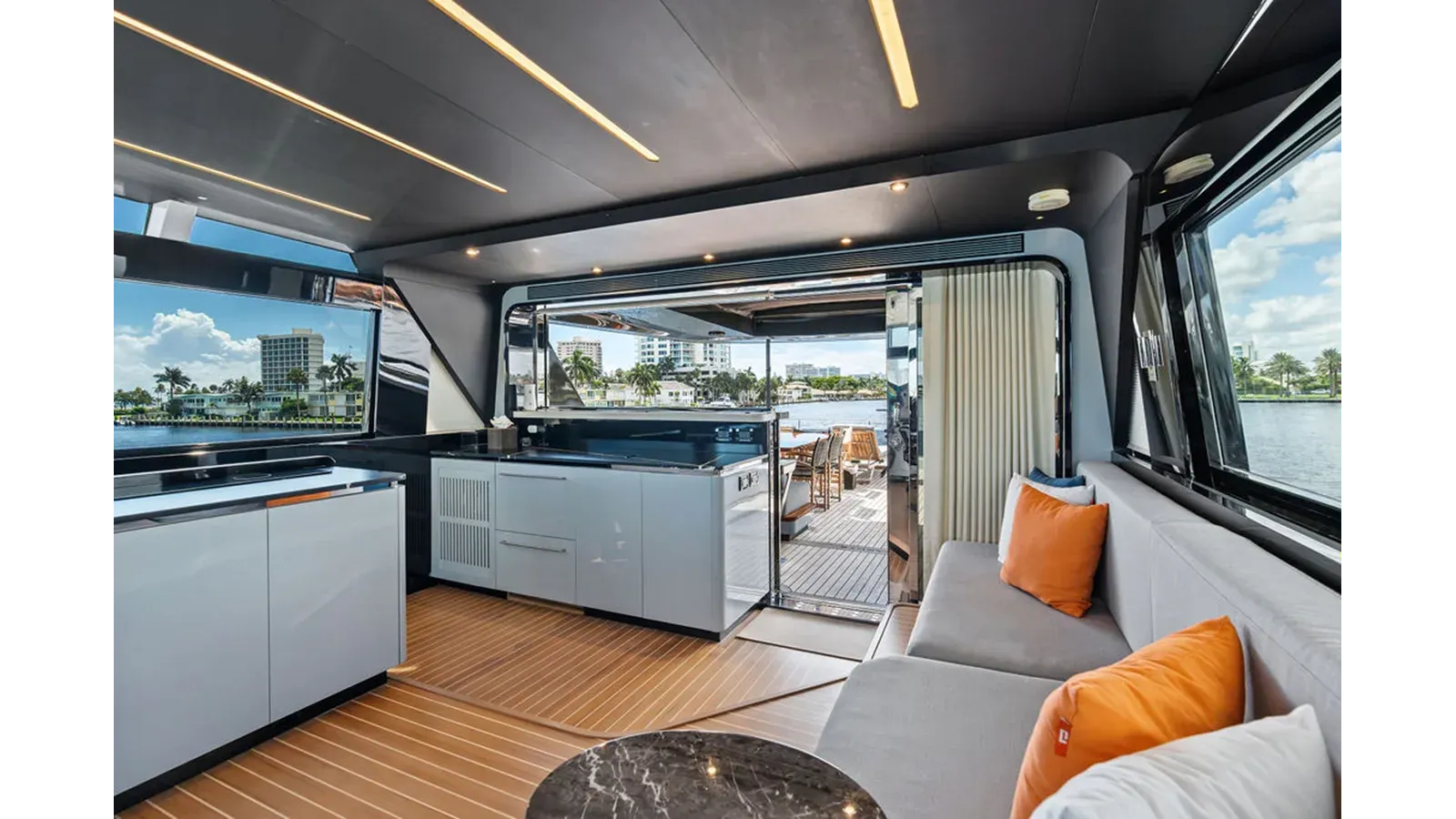

Pilothouse/flybridge

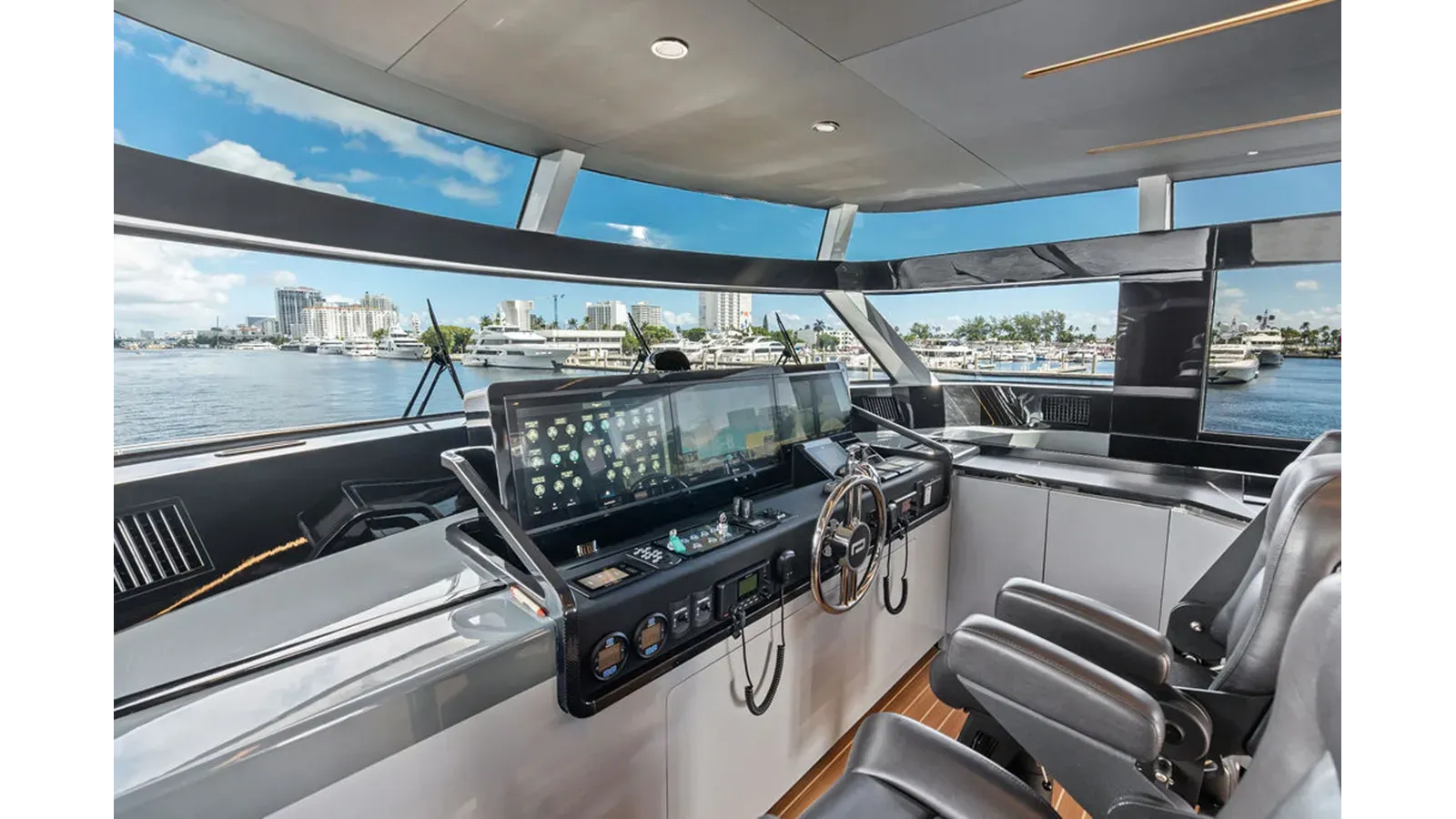

Command comes effortlessly from a helm engineered for precision, where SEASTAR Optimus electro-hydraulic power steering pairs with MATHERS MC2000-2 electronic engine controls and three 22-inch multi-function displays set within a dedicated instrument and electronic console complete with engine instrumentation and alarms. Navigation and situational awareness are enhanced by a RITCHIE five-inch compass with light, dimmer, and cover, while a custom stainless steel steering wheel, two STIDD helmsman’s seats with vinyl covers, CZONE monitoring system (see Electrical Systems), and both AC outlets and USB power outlets ensure comfort and control. The pilothouse is further equipped with a remote control for the anchor windlass, windshield wipers with a freshwater wash system, overhead lights with dimmer control, red night lights with dimmer control, a windshield defroster, and a ZF remote engine control plug-in, one forward and one aft.

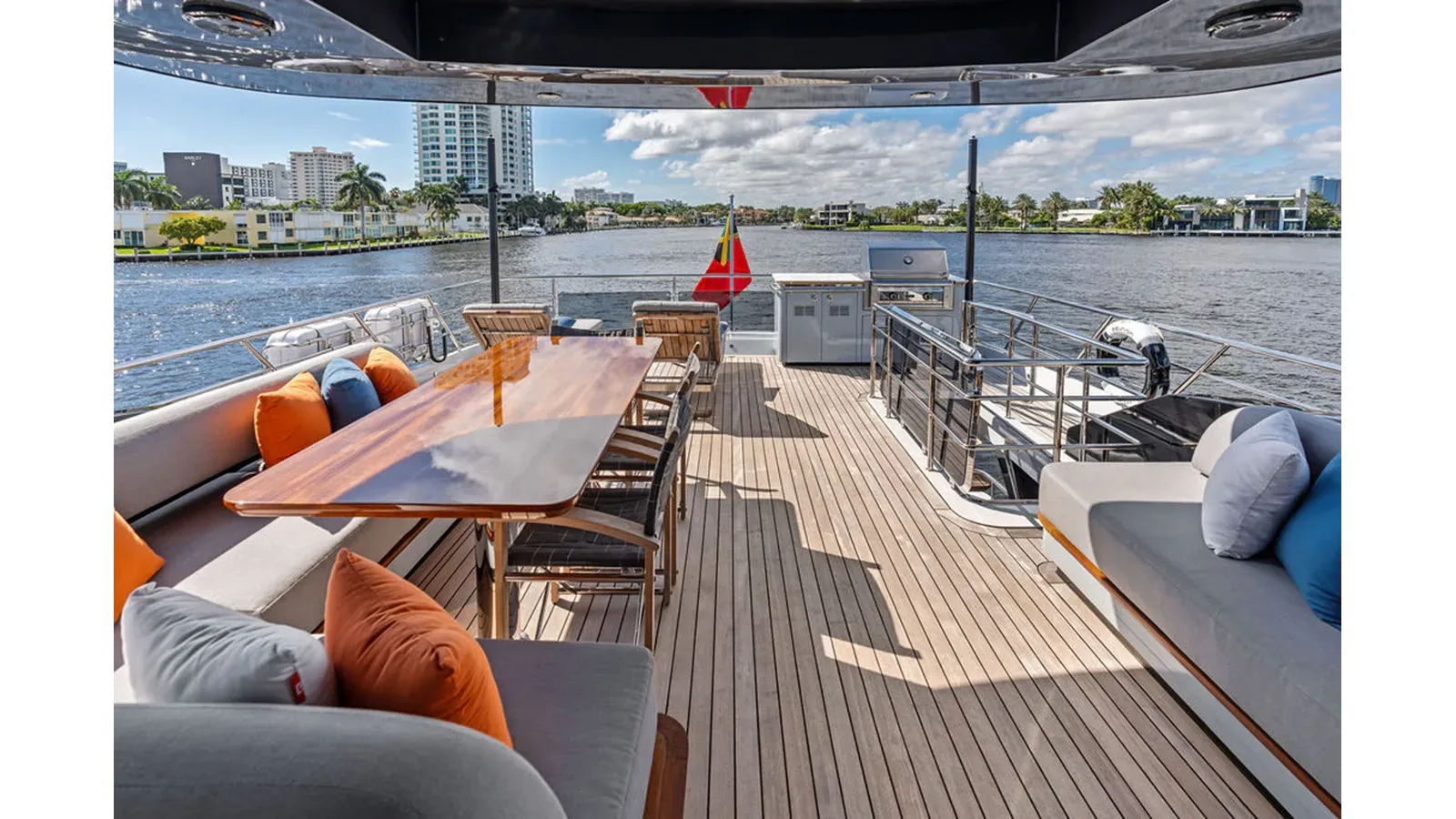

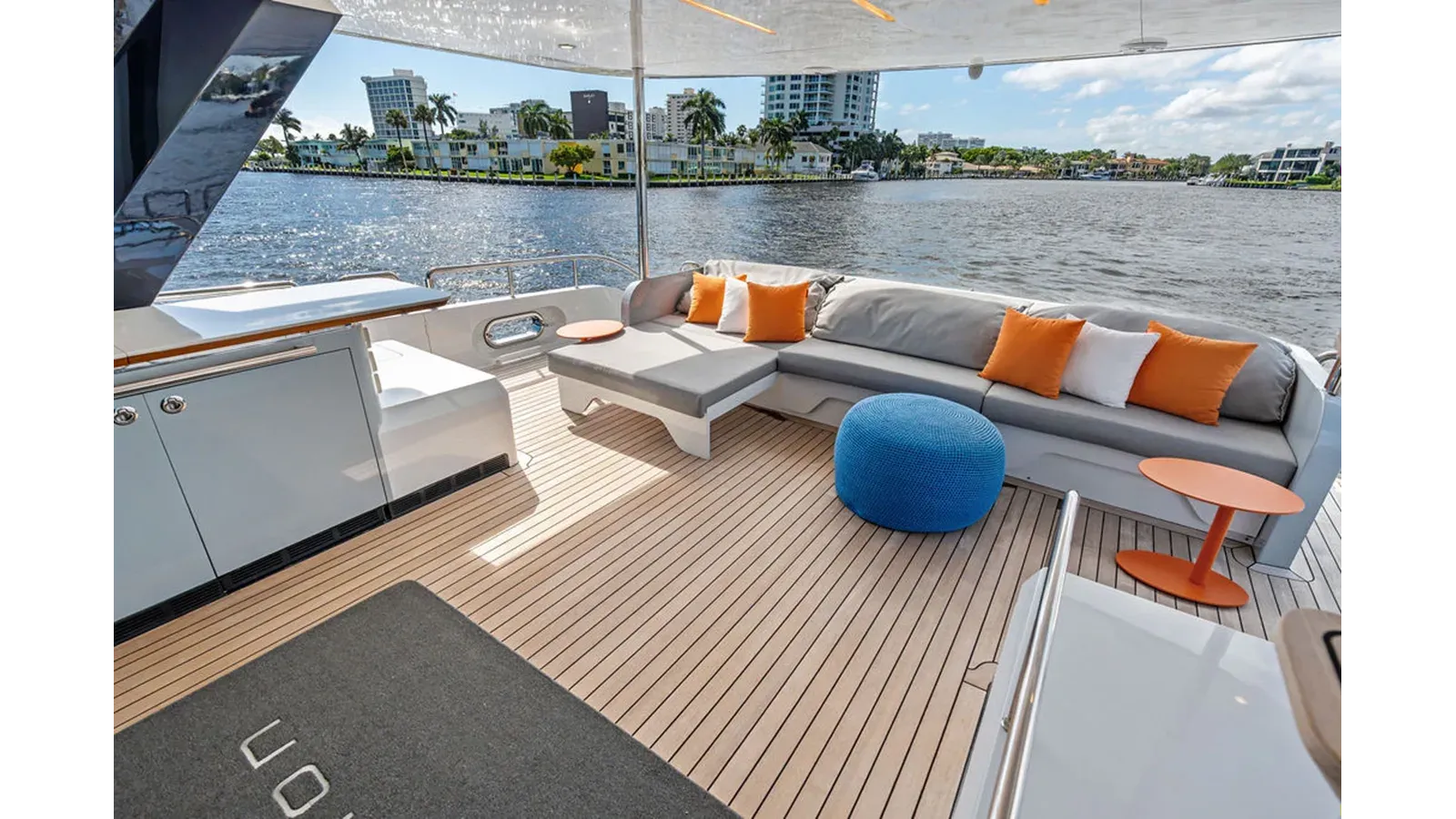

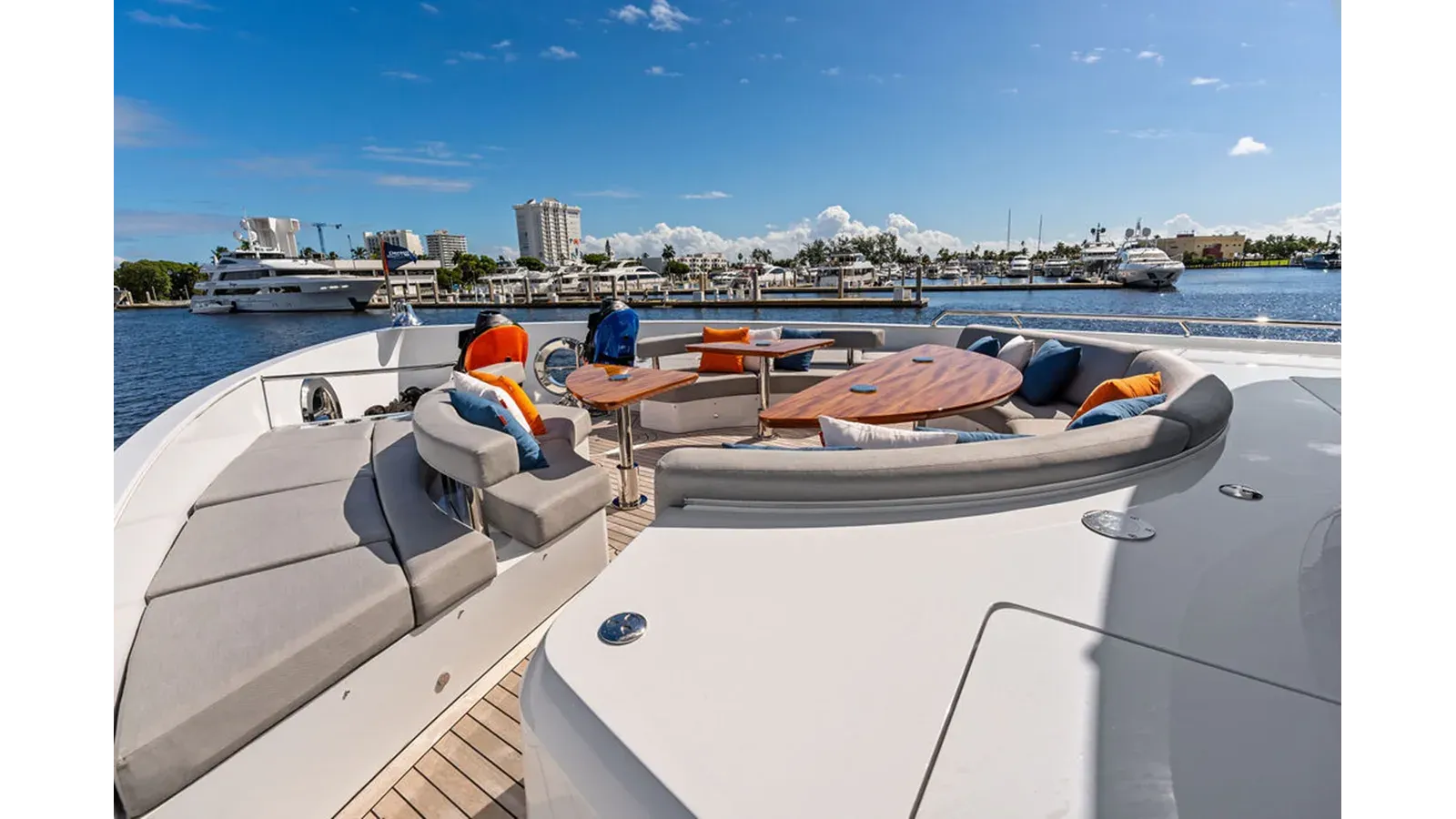

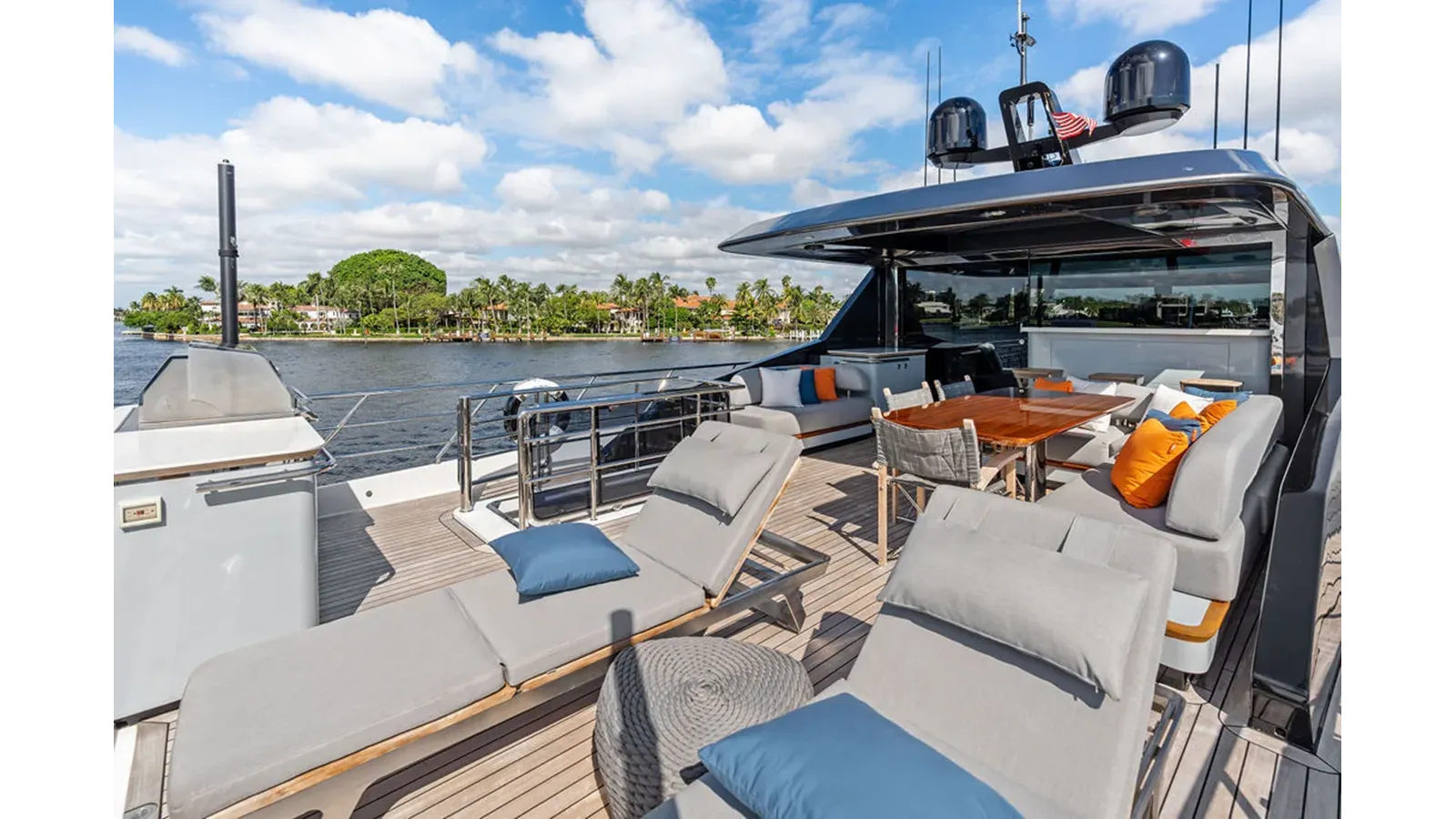

Thoughtful design details define the social heart of the flybridge, where stainless steel rails encircle a teak deck that invites relaxation. On the starboard side, a fiberglass L-shaped lounge with upholstered cushions gathers around an oiled teak tabletop on stainless steel pedestals, complemented by cup holders and pop-up mood lights on the forward Portuguese terrace, port and starboard. A wet bar with a CORIAN top and sink with cold-water faucet, U-LINE fridge, and ice maker keeps refreshments at hand, while an upholstered settee and a pop-up cabinet ready for a fifty-inch TV elevate the experience. A painted fiberglass storage cabinet with an upholstered settee to port is finished with a CORIAN countertop, and three bar stools face the action. Sockets for awning posts add flexible shade options, a fabric sunroof for the aft overhang expands open-air lounging, and a stereo with speakers sets the perfect soundtrack.

Access and safety are equally refined, with a stainless steel/acrylic hatch and a stainless steel staircase with teak steps leading to the aft deck, secured by stainless steel rails and a gate. Scuppers and a drainage system efficiently channel water to the lower deck, and a lightning arrester system, a combined smoke/CO detector, and courtesy lights at deck level add reassuring protection day or night. Utility is close at hand thanks to a fresh water washdown hose bib inside a storage cabinet, a painted fiberglass cabinet with provision for a gas BBQ beneath a CORIAN countertop, and an AC GFI outlet. For clear command beyond sundown, an ACR 100 quartz halogen searchlight with remote dual-station control and a twin trumpet air horn stand ready.

The pilothouse is beautifully framed by fixed adhesion type tinted tempered/laminated glass windows set within recessed window boxes with manual window blinds, a stainless steel frame tempered-glass hinged door, and up/down electric windows on the aft bulkhead and on the pilothouse port and starboard sides. An internal staircase connects seamlessly to the main salon, completing a space where form, function, and flawless craftsmanship meet.

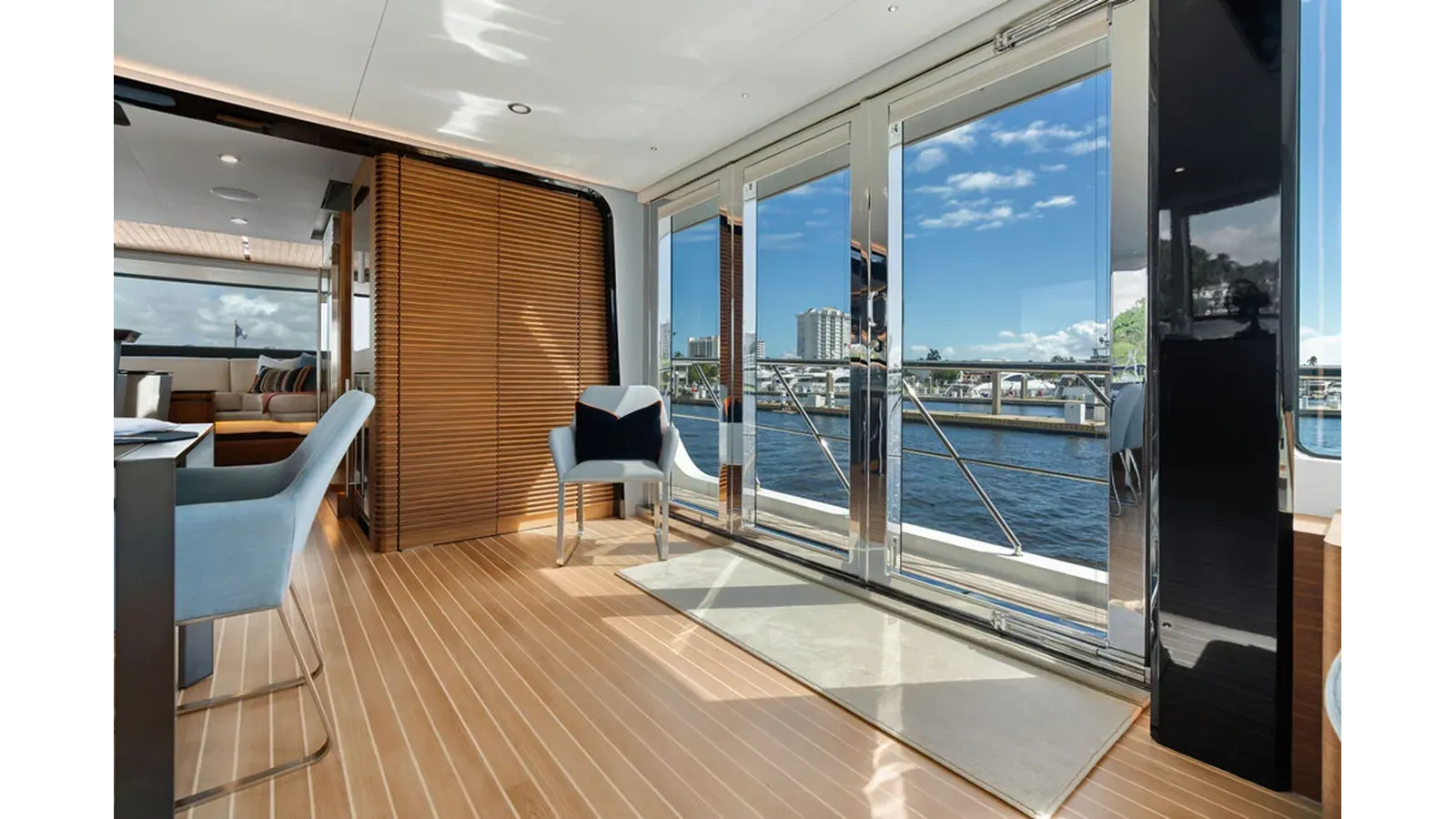

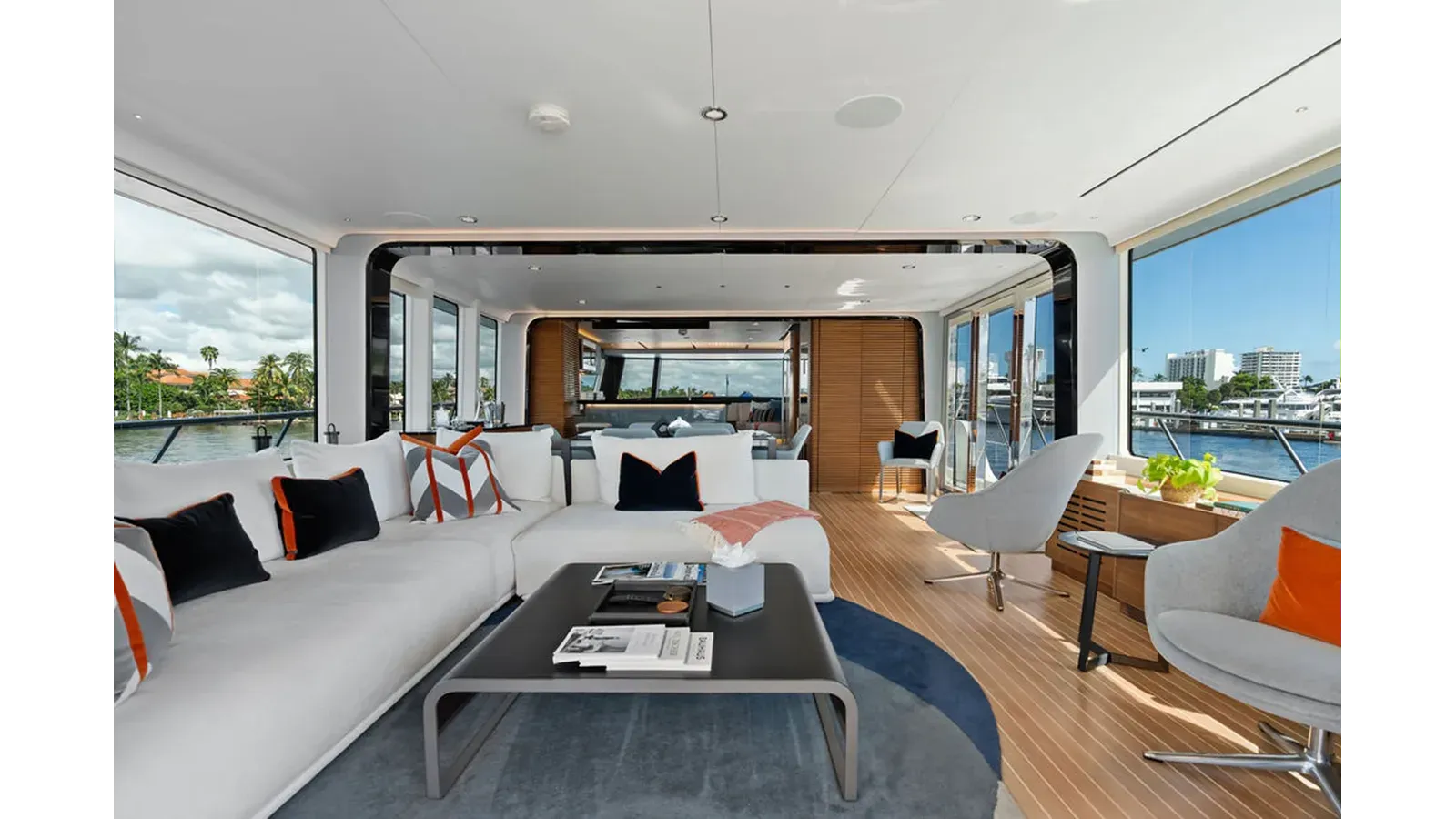

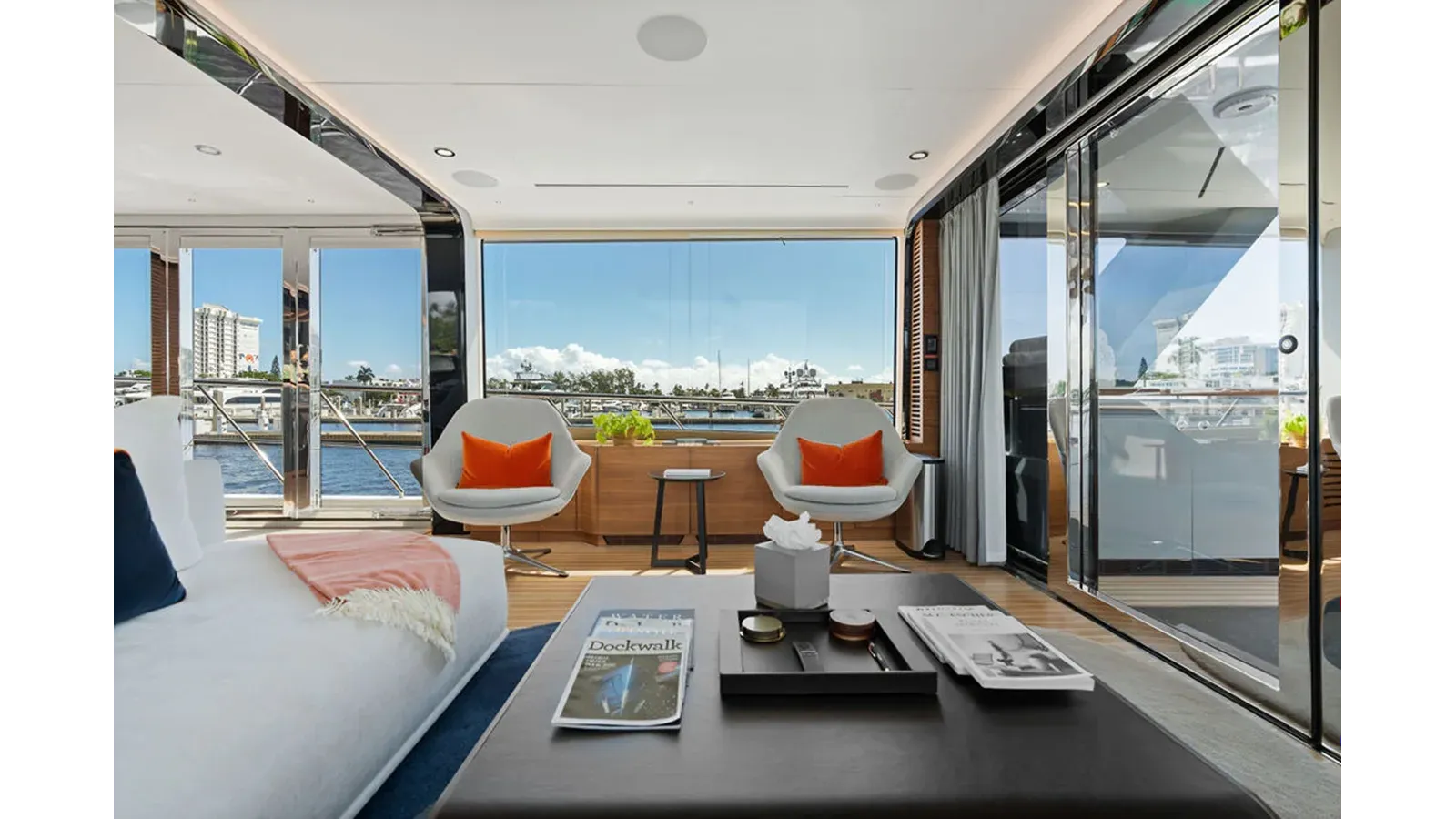

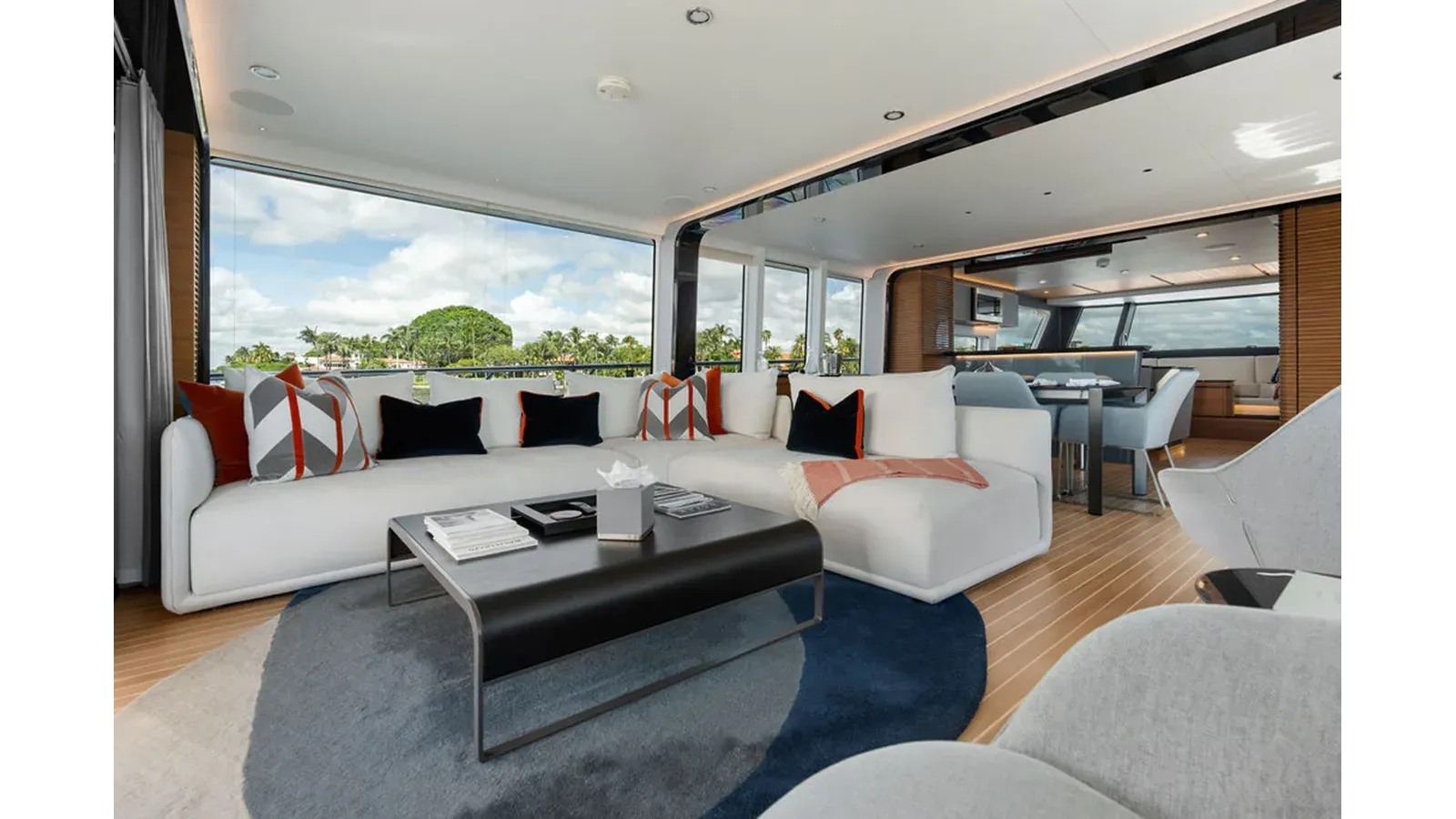

Salon/dining room

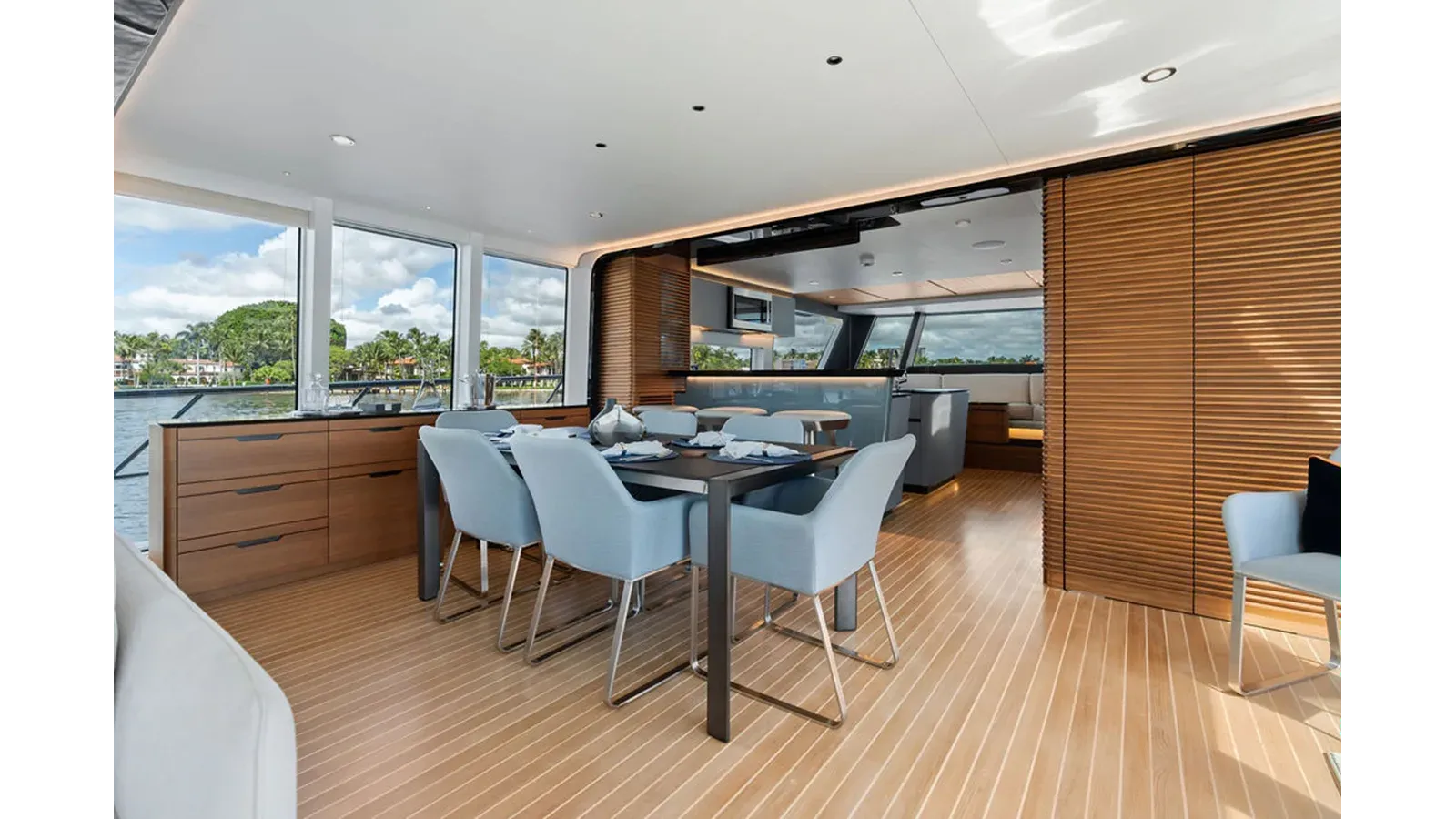

The salon and dining room are framed by fixed adhesion type tinted laminated tempered glass windows that bathe the space in natural light, while recessed window boxes with manual window blinds provide effortless privacy and glare control. Atmosphere is finely tuned by ceiling lights with dimmer control and switch, complemented by valance and floor lighting with switch. Entertainment is immediate with a fold-down 65-inch TV complete with stereo and speakers, supported by an HDMI socket for seamless connectivity. Comfort and conviviality are enhanced by an upholstered settee, an extendable dining table, a dining buffet unit, and three bar stools, with storage cabinets on the port and starboard house side incorporating two wireless phone chargers for convenient power. Everyday practicality is assured with AC outlets and USB power outlets. Flow to the exterior is effortless through an electric stainless steel framed, tempered glass sliding door to the aft deck and a stainless steel framed, tempered glass folding door to the starboard side deck, while peace of mind is ensured by a combined smoke and CO detector.

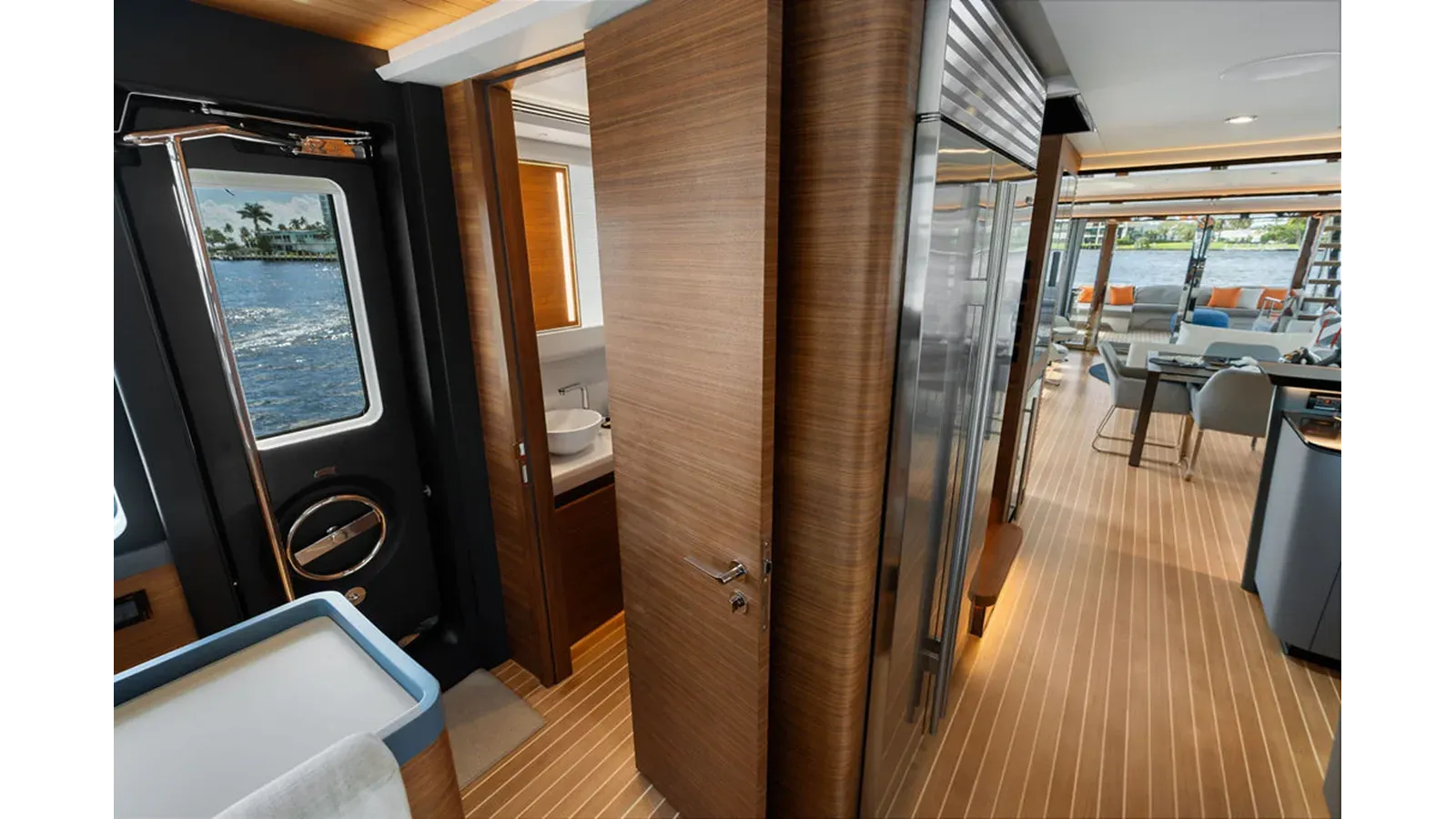

Day head

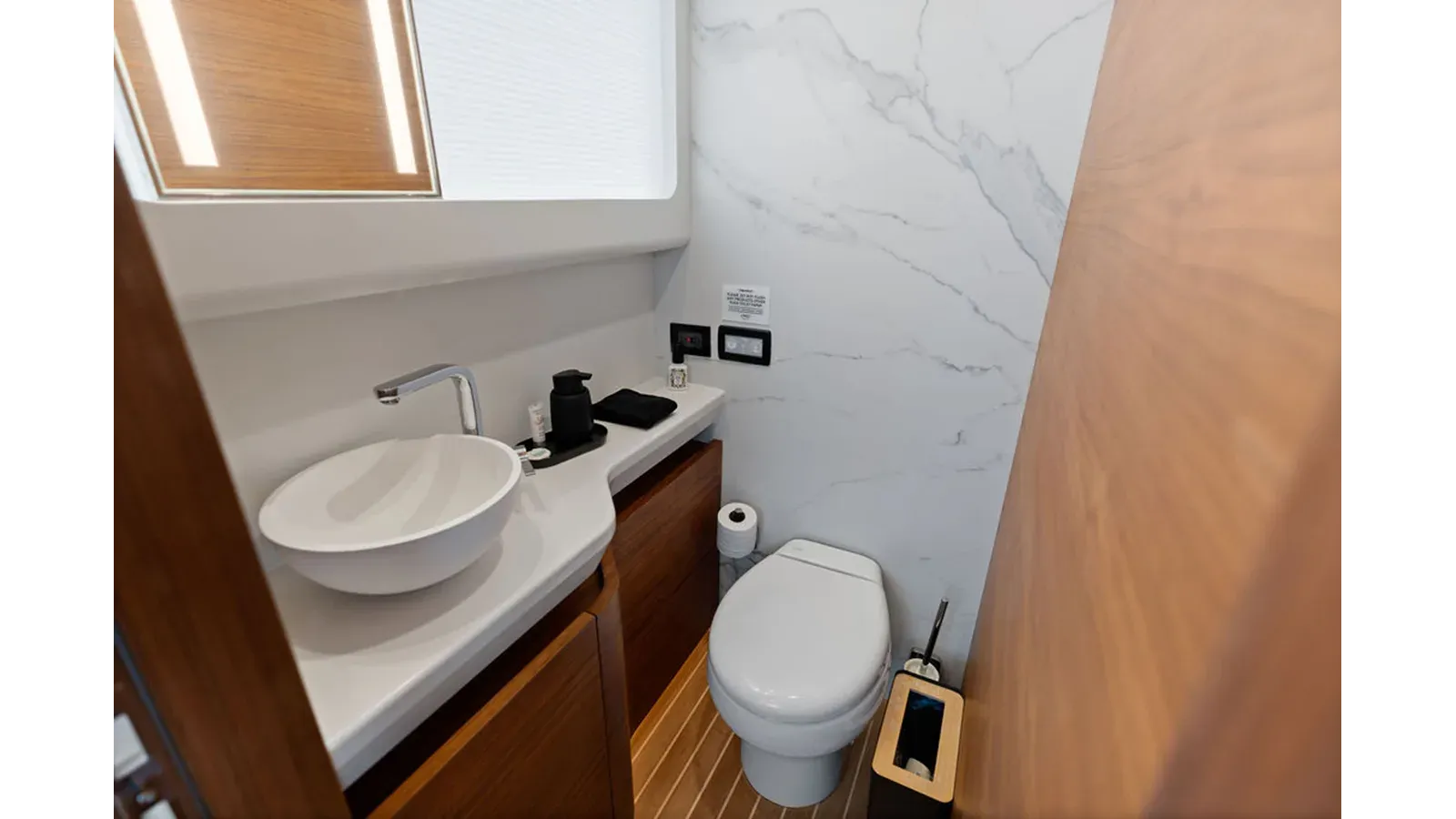

The day head is appointed with a CORIAN countertop and backsplash paired with a contemporary vessel sink, complemented by a hot and cold faucet and a storage cabinet beneath. A TECMA electric head with fresh water flush ensures clean, efficient operation, while an exhaust blower promotes rapid ventilation. Thoughtful illumination is provided by overhead lights controlled with a dedicated switch, and a lighted vanity mirror elevates daily rituals. Practical convenience is completed by an AC GFI outlet for essential appliances.

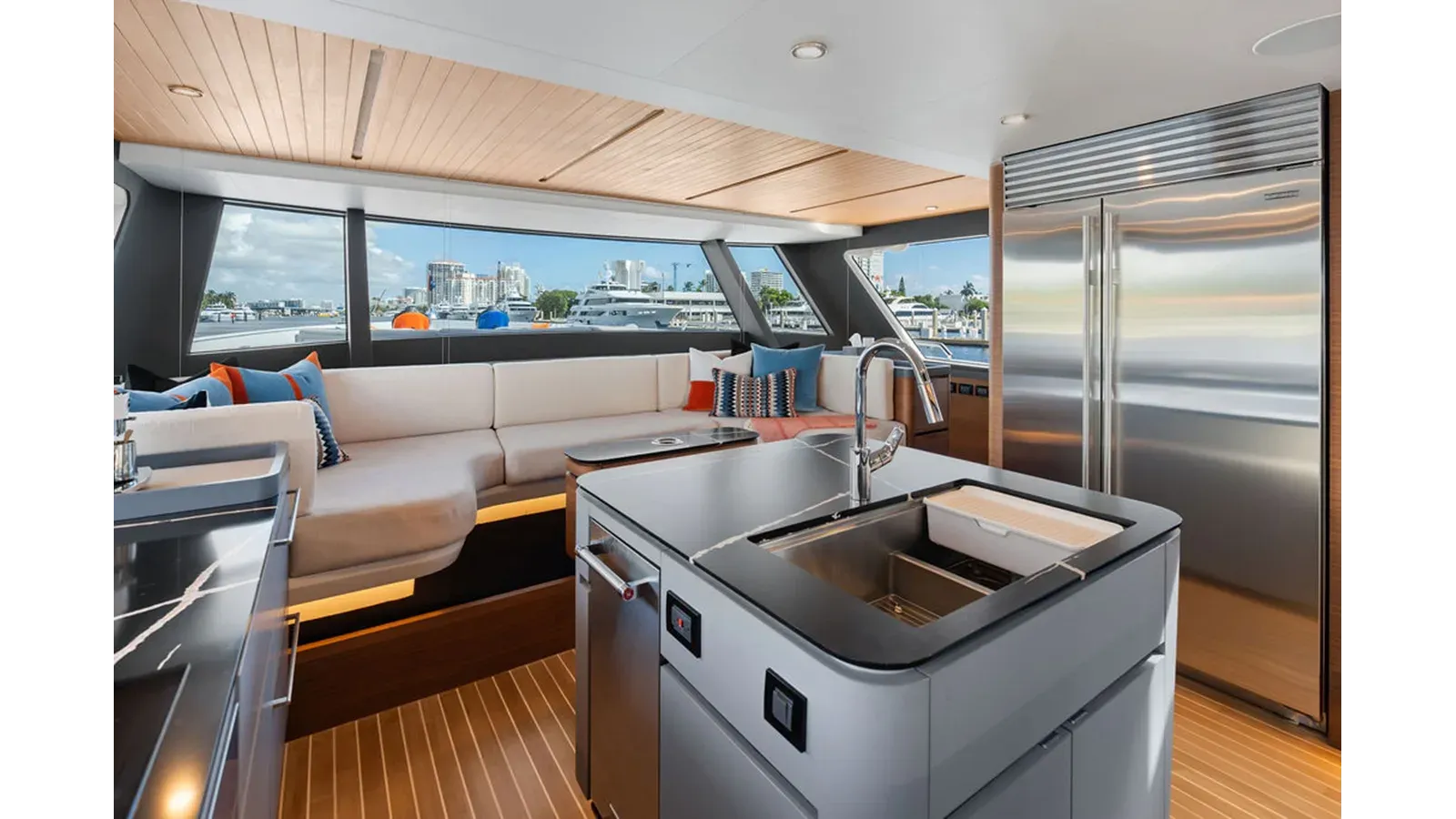

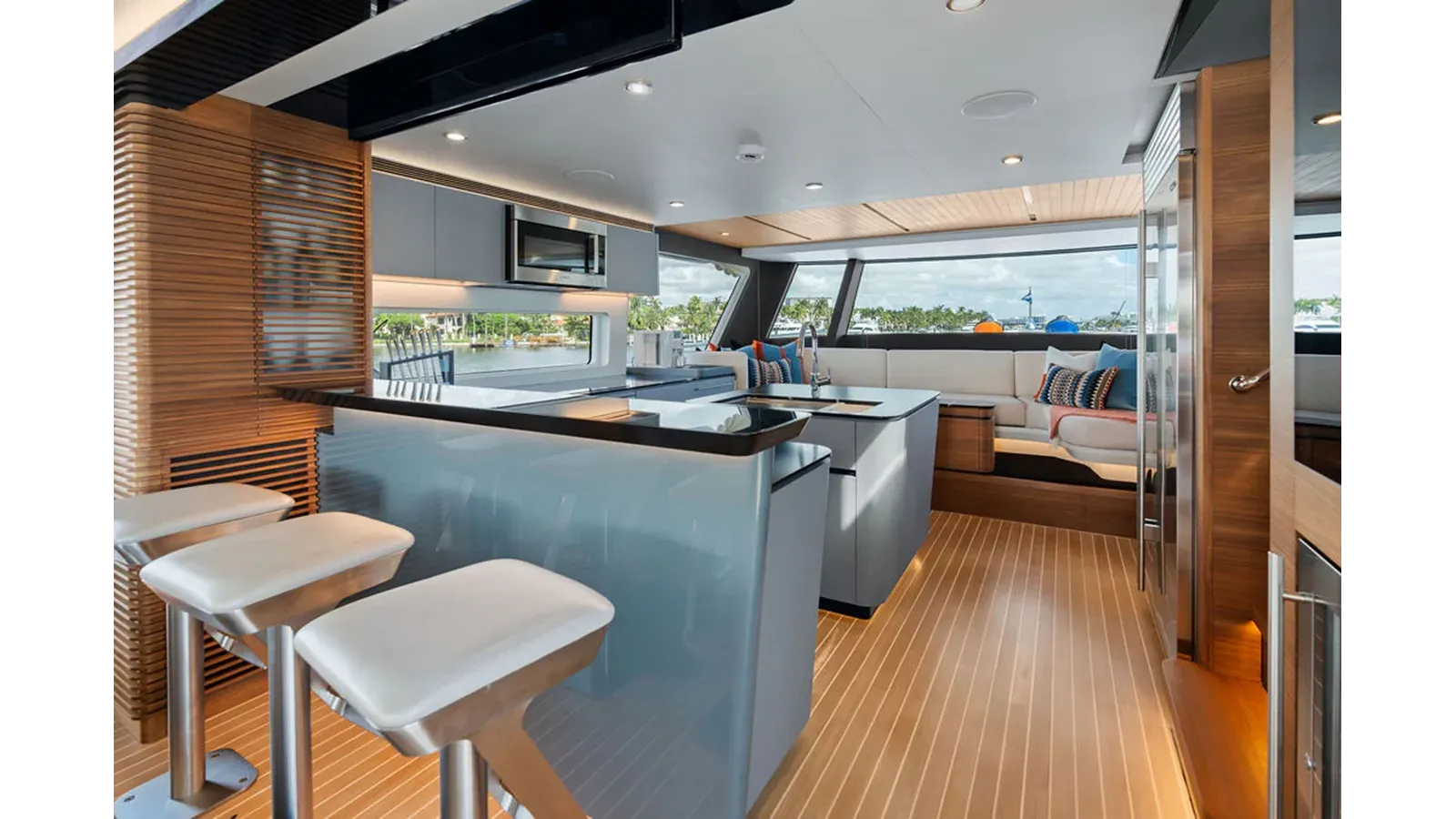

Galley & dinette

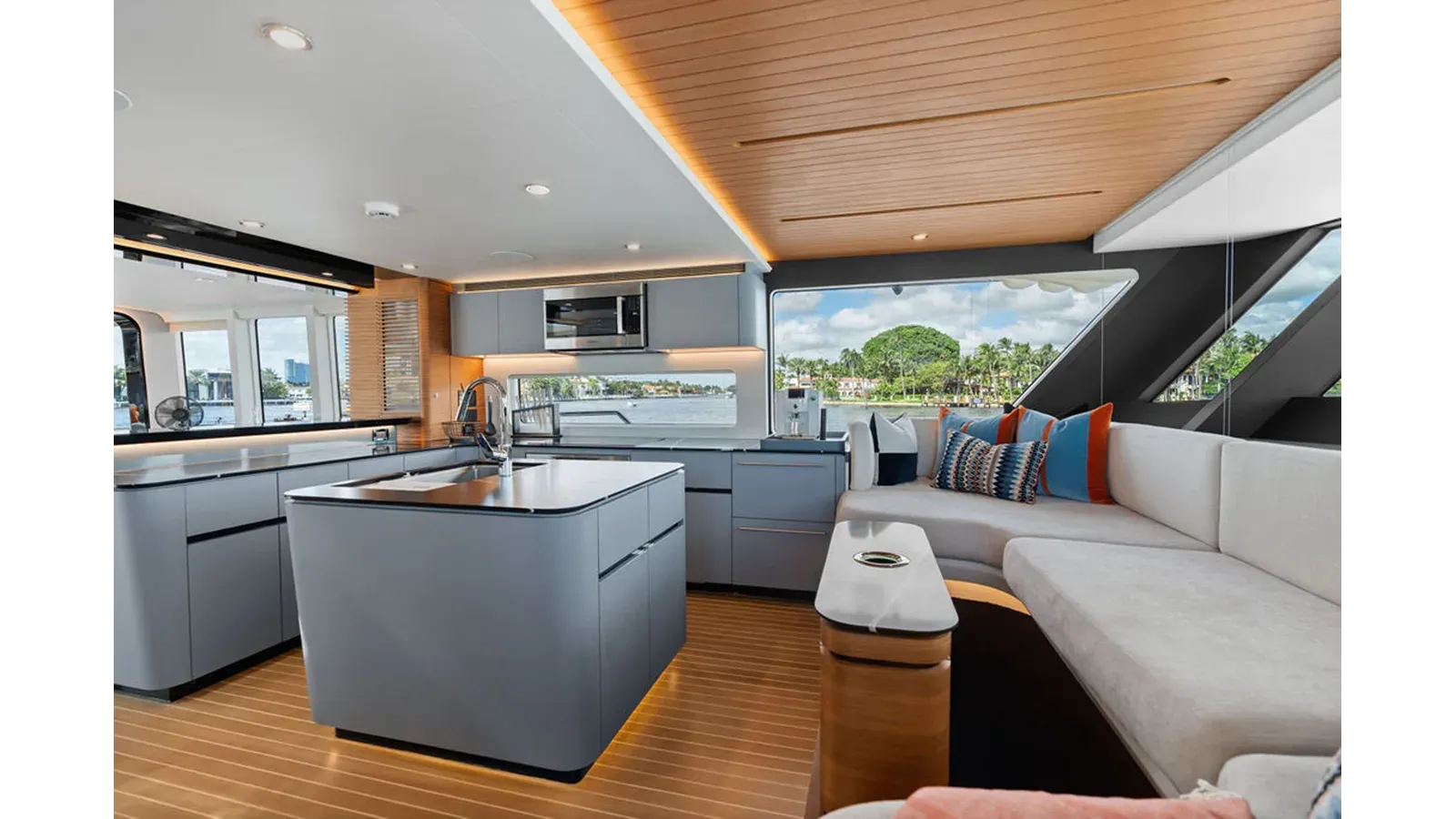

The gourmet galley is anchored by a suite of Bosch appliances, including a 27-inch oven, a 27-inch built-in microwave with hood, a 27-inch cooktop, and a 24-inch dishwasher. Cold storage is expansive with a Sub-Zero 42-inch standing refrigerator/freezer paired with a Sub-Zero 24-inch drawer freezer, while an undercounter U-Line ice maker and a dedicated wine cooler stand ready for effortless entertaining. A Fenix-clad galley island and matching upper and lower Fenix cabinetry with drawers below the quartz countertop provide durable, fingerprint-resistant work surfaces and abundant stowage, all served by a stainless steel double sink and a hot and cold faucet with a removable spray handle. Cleanup is simplified by a trash compactor and garbage disposal, and task illumination is refined with overhead lights featuring dimmer control and under-cabinet lighting, with recessed window boxes fitted with manual blinds adding both daylight and privacy. Power and safety needs are equally well considered with USB power outlets, AC GFI outlets, a combined smoke/CO detector, and a conveniently located electrical subpanel.

Opposite, the social heart of the deck flows into a refined bar crowned with a Corian bar top, a slide-out bottle rack, and a wine glass cabinet positioned above the wine cooler for immediate service. The Champagne lounge invites lingering with a U-Line champagne cooler, dedicated glass storage, an oiled teak ceiling overhead, and a soft carpeted floor underfoot, while three-panel electric blinds at the front windscreen tailor the ambiance at a touch. Comfort and connectivity are assured by an upholstered settee, a wireless phone charger, and a stereo with speakers, and circulation is thoughtfully arranged with a wood staircase leading to the lower deck and a second wood staircase rising to the helm station and skylounge.

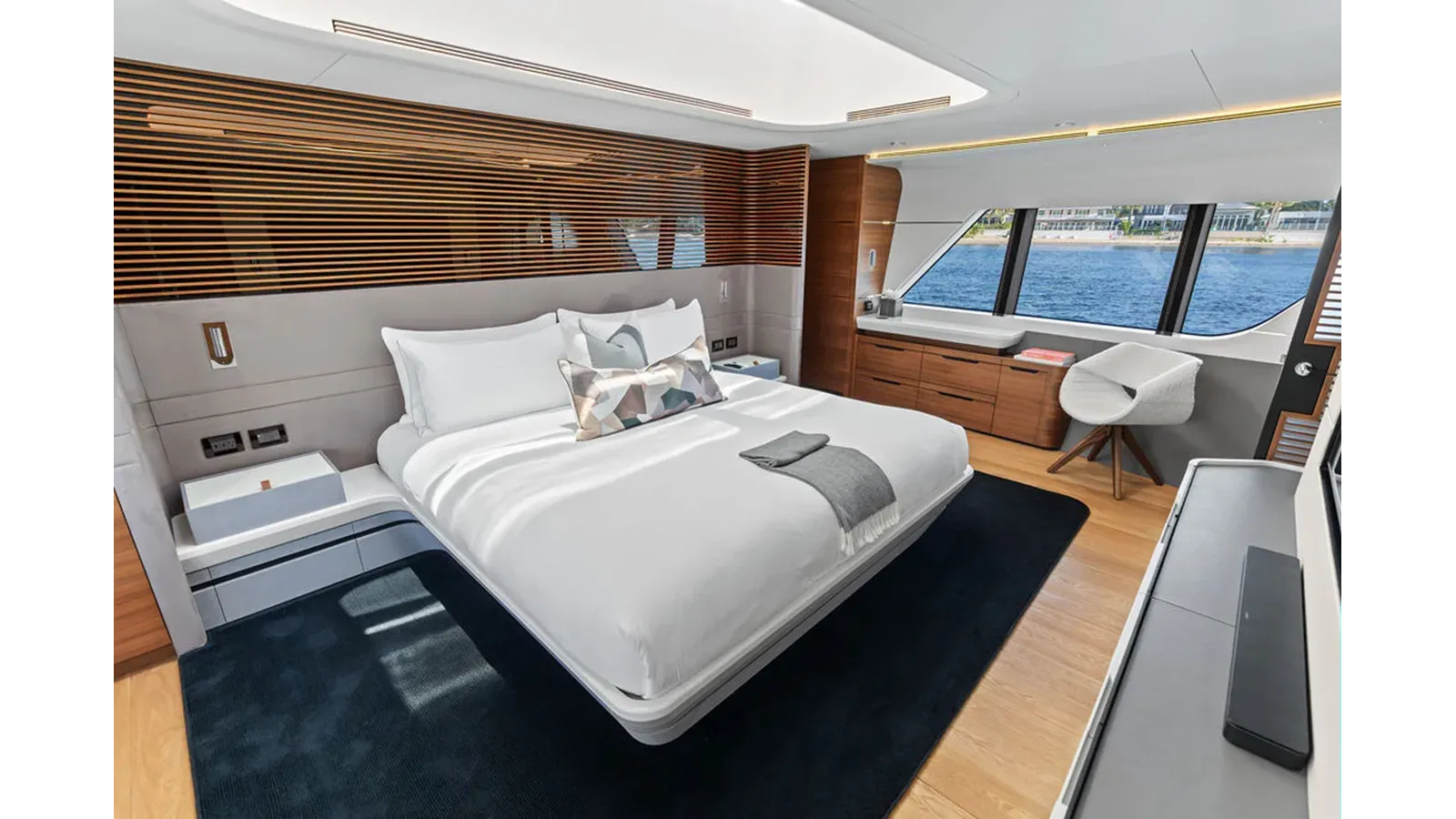

Master stateroom

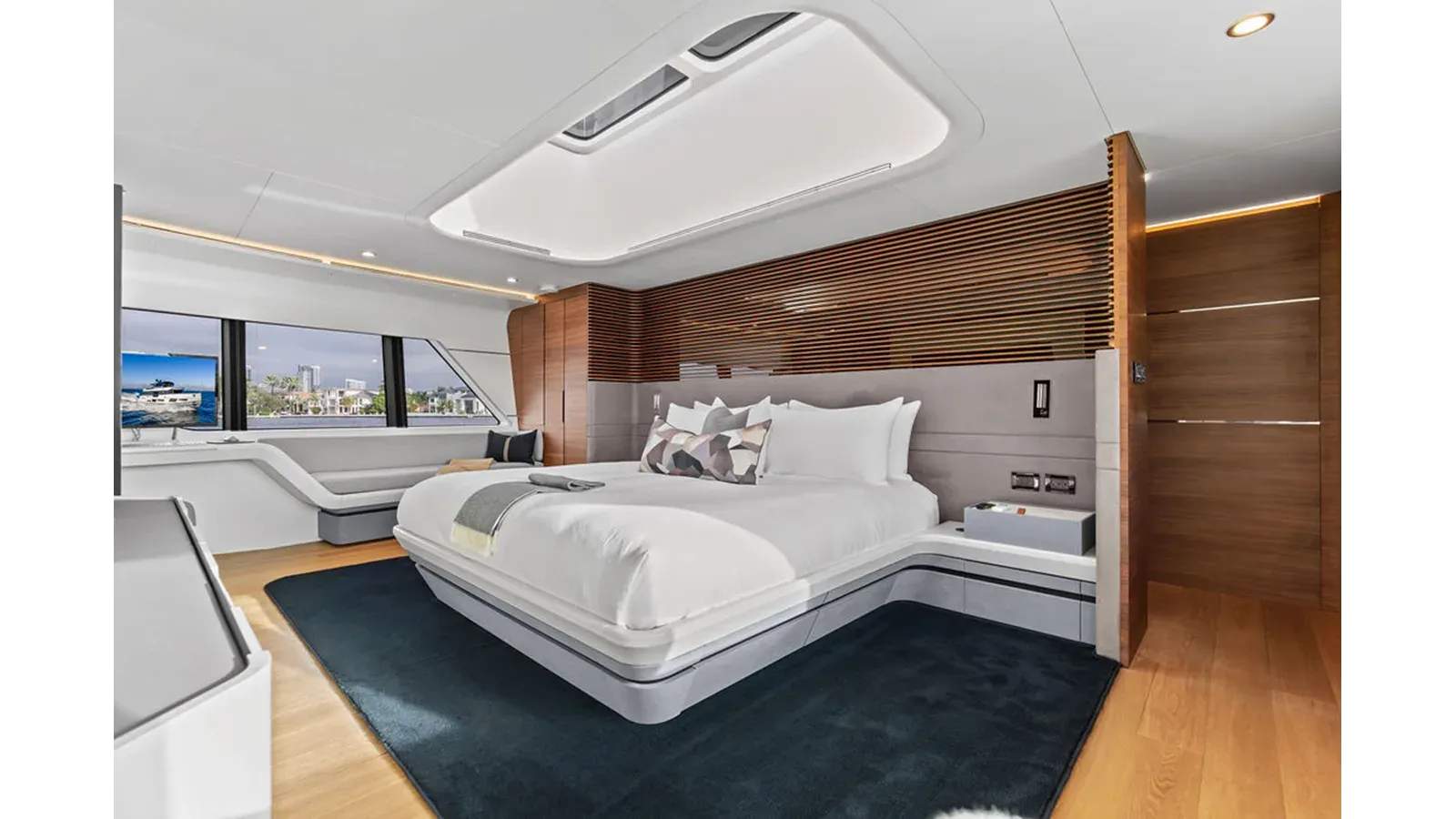

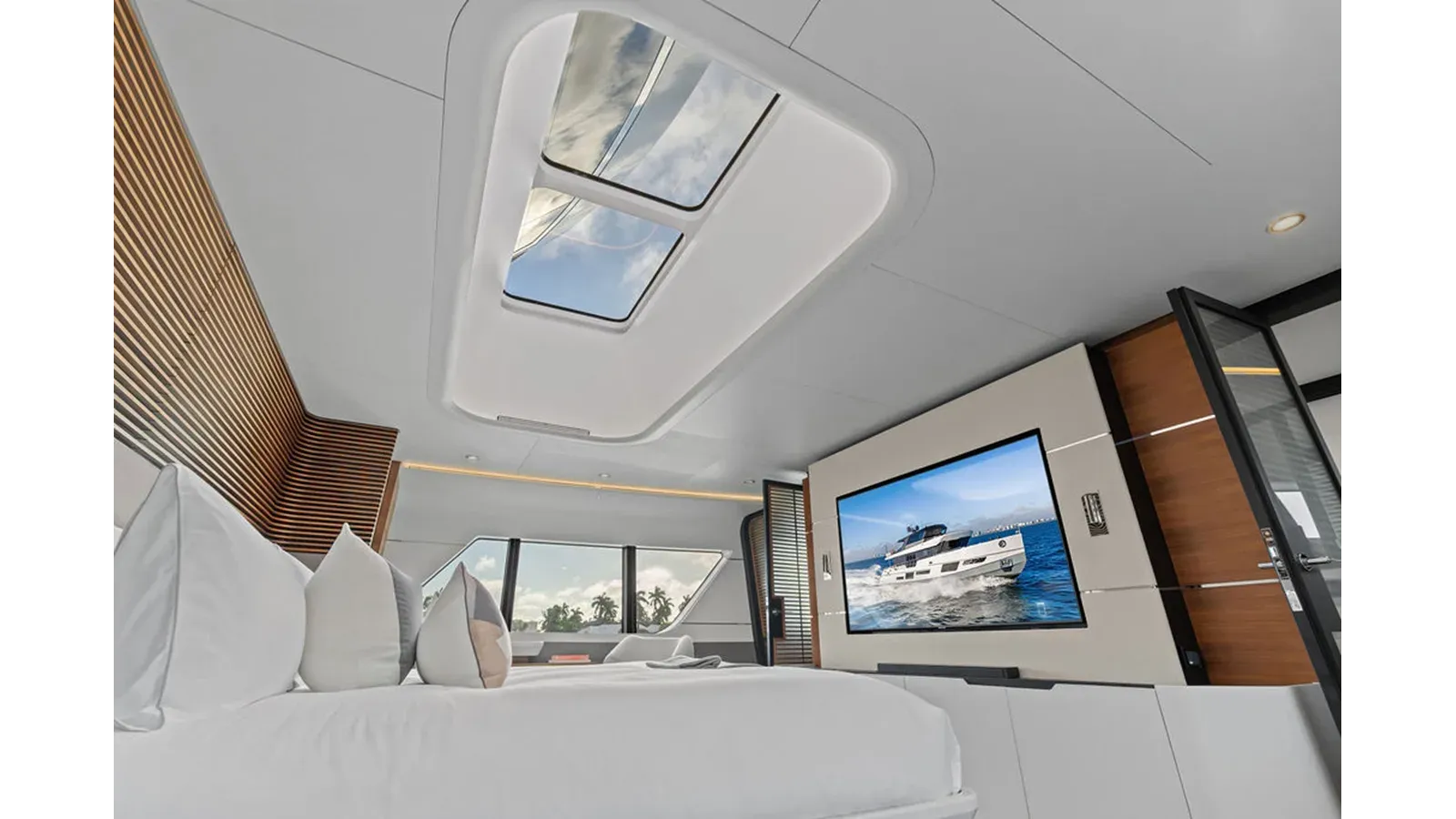

A sanctuary of understated luxury centers on a king berth with storage drawers beneath, framed by a carpeted perimeter that softens every step. Natural light pours in through fixed hull side windows and an overhead skylight with an electric blind, while a recessed window box with a manual shade offers effortless privacy. Thoughtful appointments include two night tables and a built-in recess for a 65-inch TV complemented by a sound bar, a storage cabinet below, and wall lights on each side to set the mood. Safety and security are assured with a combined smoke/CO detector and a small safe. Wardrobe needs are met by a walk-in closet, cedar lined on the back surfaces and finished with a mirror on the closet door, alongside generous storage cabinets. Daily rituals are elevated by an upholstered settee and a vanity unit with mirror. Illumination is finely tuned through ceiling lights with dimmer control and switch, valance lights and floor lights with switch, and two reading lights with individual switches. Modern convenience comes courtesy of USB power outlets, AC outlets, and an HDMI socket, while an Isotherm refrigerator in the master stateroom foyer keeps refreshments perfectly within reach.

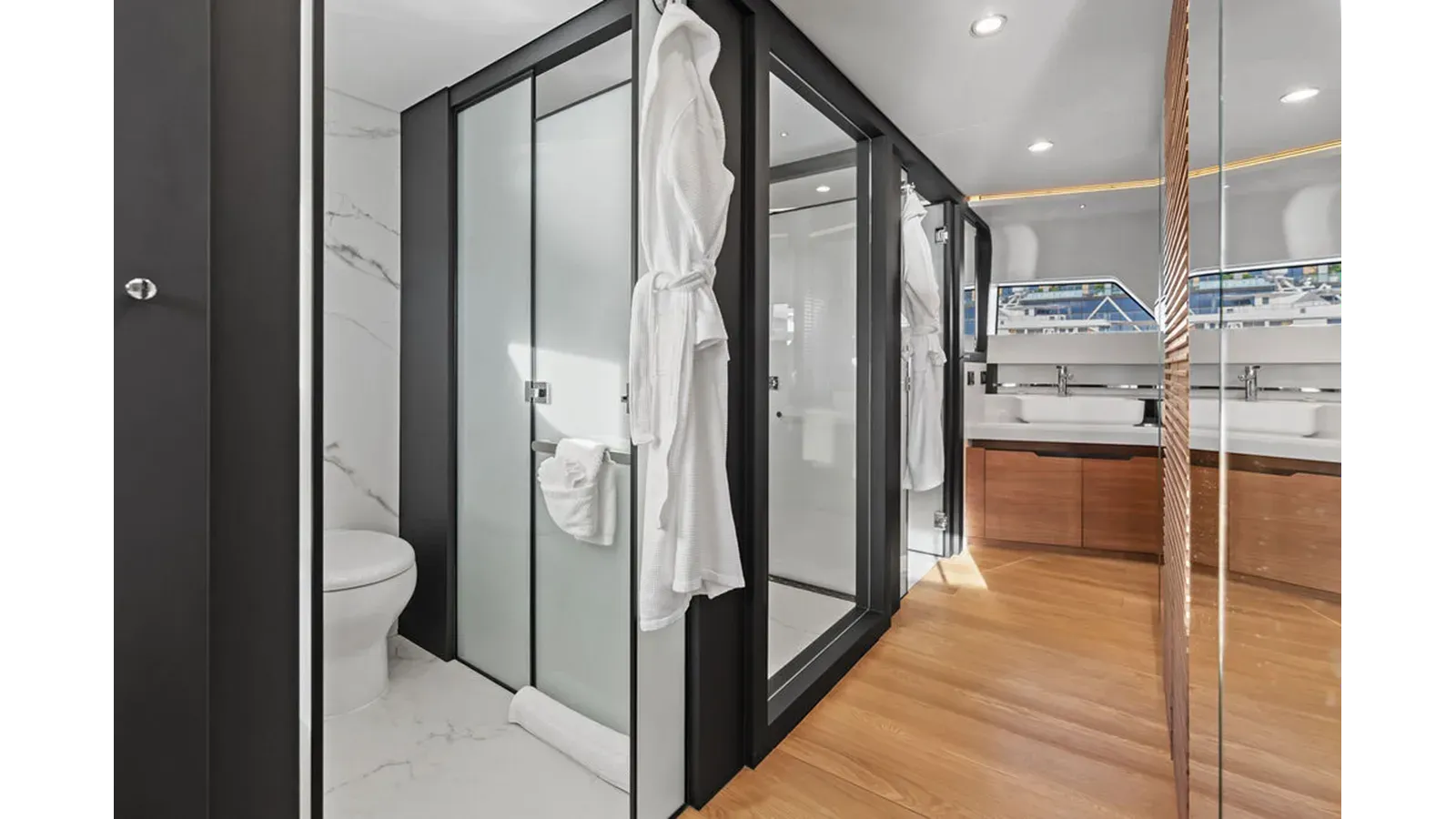

Master head

The master head is illuminated by ceiling lights with a convenient switch, setting a refined tone for a space that balances luxury and function. His and her heads are divided by a smart glass partition and appointed with two TECMA electric heads with fresh water flush, all finished with sintered stone walls and floor. A spacious stall shower continues the theme with a smart glass enclosure, a hinged door, and matching sintered stone walls and floor. His and her CORIAN vanity tops with wash basins are complemented by quality faucets and bath accessories, with lighted mirrors above and medicine cabinets below for organized elegance. Practical comforts include exhaust blowers and AC GFI outlets, while safety is assured with an emergency escape from the shower to the foredeck via a watertight hatch. Natural light filters through fixed hull side windows, and a recessed window box with manual shade allows for tailored ambiance.

VIP stateroom

The VIP stateroom centers on a queen island berth with storage drawers beneath, flanked by two night stands, and complemented by a vanity with mirror and an upholstered settee. Generous storage is provided by a storage cabinet and a wardrobe, cedar lined on the back surface with a mirror on the door. Illumination is thoughtfully layered, featuring ceiling lights with switch, valance and floor lights with switch, and two reading lights with switches, while fixed hull side windows and a recessed window box with manual shades invite natural light as desired. Entertainment and connectivity are seamlessly integrated with a recess for a 55” TV with sound bar, with wall lights on each side, supported by USB power outlets, an HDMI socket, and AC outlets. A combined smoke/CO detector enhances safety, and a virtual skylight crowns the space with an airy, contemporary ambiance.

VIP head

Thoughtfully appointed, the VIP head is illuminated by ceiling lights with a switch and features a stall shower with a glass door and sintered stone wall and floor. A lighted mirror over the wash basins pairs with a medicine cabinet under the wash basins, while a CORIAN vanity top with wash basin, complemented by refined faucets and bath accessories, underscores the level of finish. Practicality meets comfort with exhaust blowers and a TECMA electric head (fresh water flush) set in its own head compartment with a glass door and sintered stone wall and floor. Natural light filters through fixed hull side windows, enhanced by a recessed window box with manual shade, and everyday functionality is assured with an AC GFI outlet and a counter balanced door. The look is completed by the durability and elegance of a sintered stone floor.

Port guest stateroom

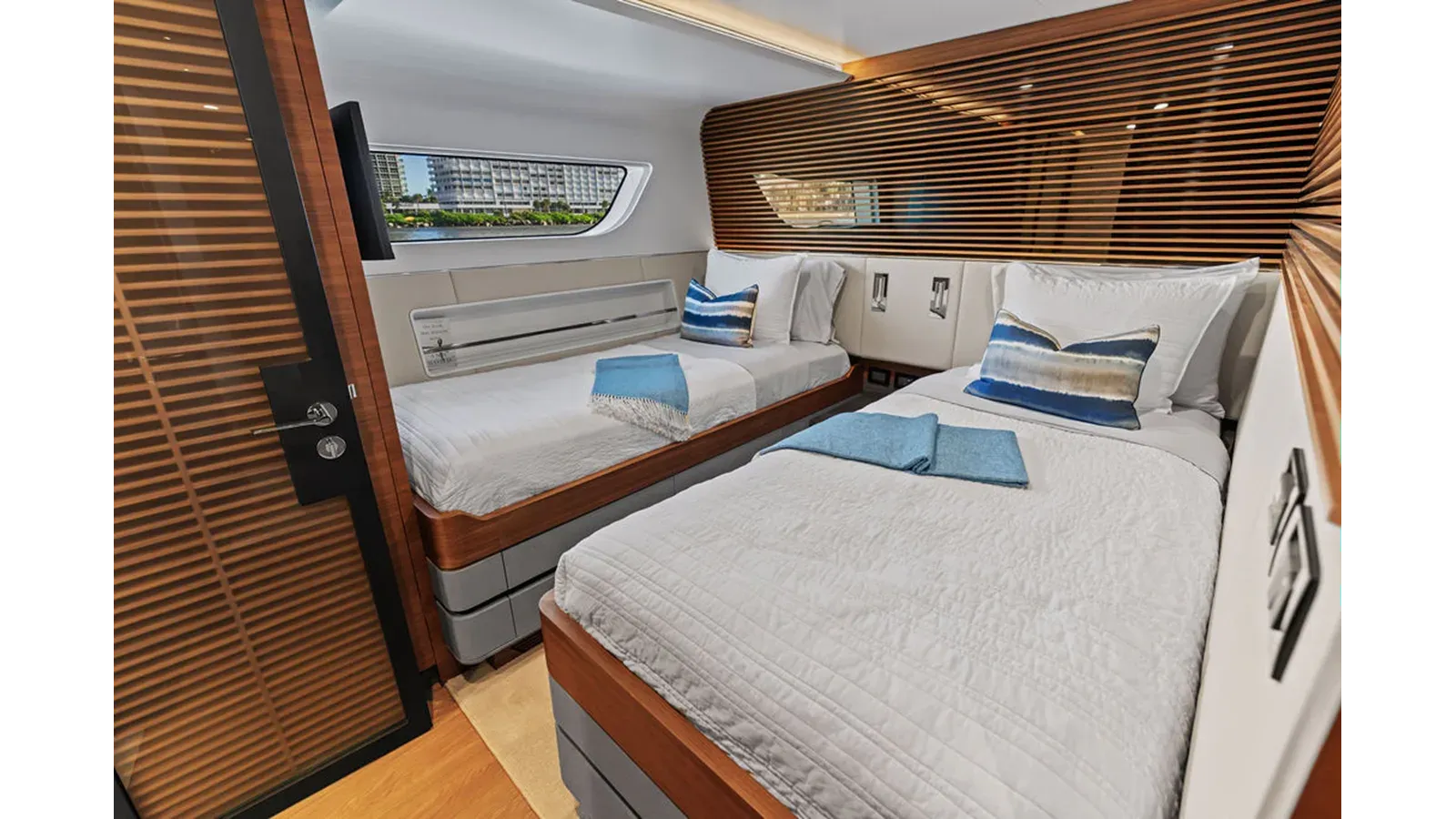

Designed to welcome guests with adaptable comfort, the port guest stateroom features convertible twin berths with storage drawers beneath and a carpet runner between them, complemented by a night stand. Safety and ambiance are thoughtfully addressed with a combined smoke and CO detector, ceiling lights with a dedicated switch, valance and floor lights with their own switch, and two reading lights, each with its own switch. Natural light filters through a fixed hull-side window, which is paired with a recessed window box and a manual shade for privacy. Stowage is generous with a wardrobe, cedar lined on the back surface and finished with a mirrored door. Entertainment and connectivity are comprehensive, including a 24-inch TV with sound bar, USB power outlets, an HDMI socket, and AC outlets.

Port guest head

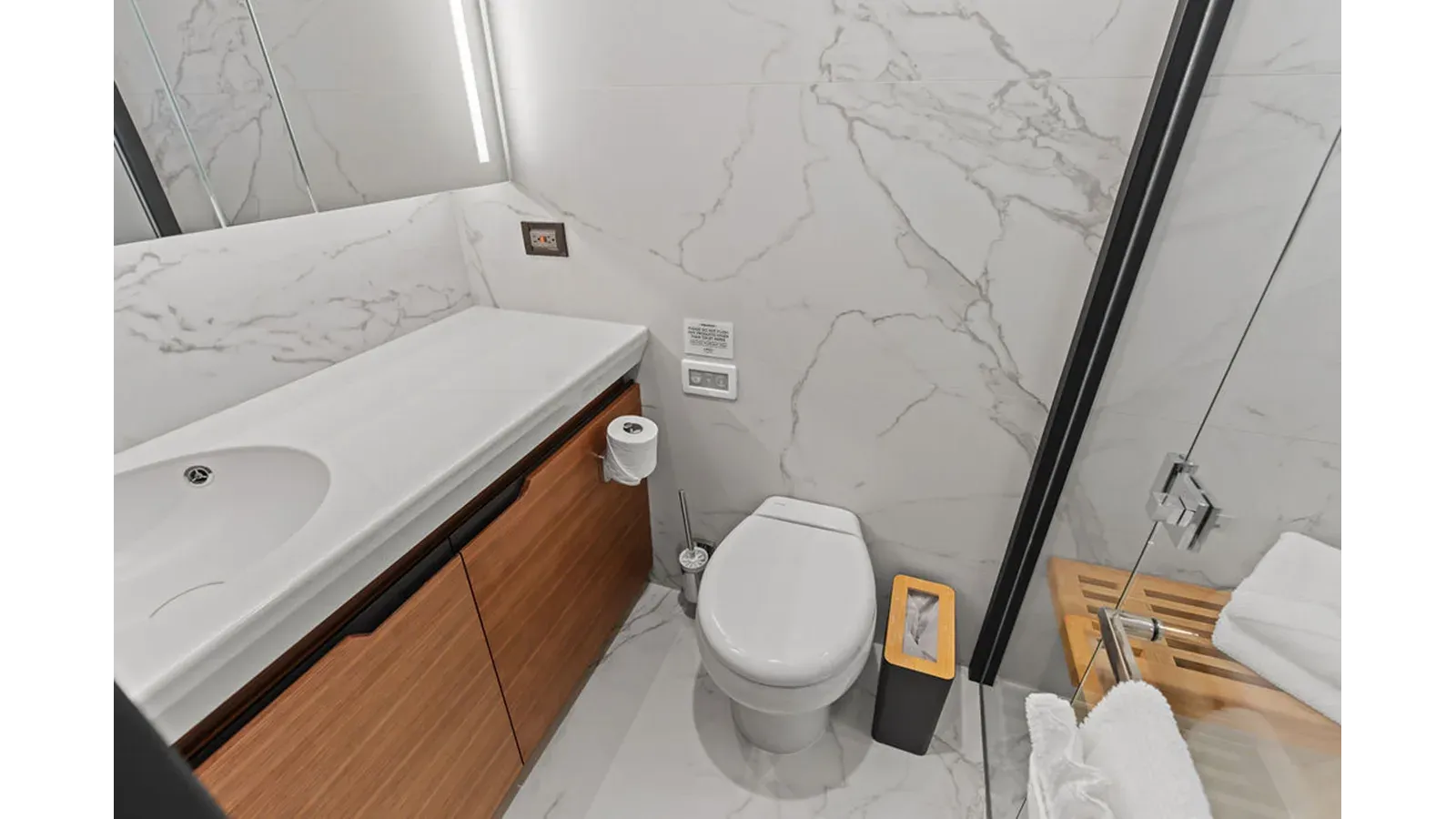

The port guest head is thoughtfully appointed with ceiling lights controlled by a dedicated switch, a TECMA electric head with fresh water flush, and a stall shower enclosed by a frameless glass door with sintered stone walls and floor. A CORIAN vanity top with wash basin is complemented by faucets and bath accessories, a lighted mirror over the wash basin, and a medicine cabinet. Natural light enters through a fixed hull side window, while a recessed window box with manual shade ensures privacy. Practical features include an exhaust blower for ventilation, an AC GFI outlet for power needs, and a sintered stone floor that extends the luxurious finish throughout.

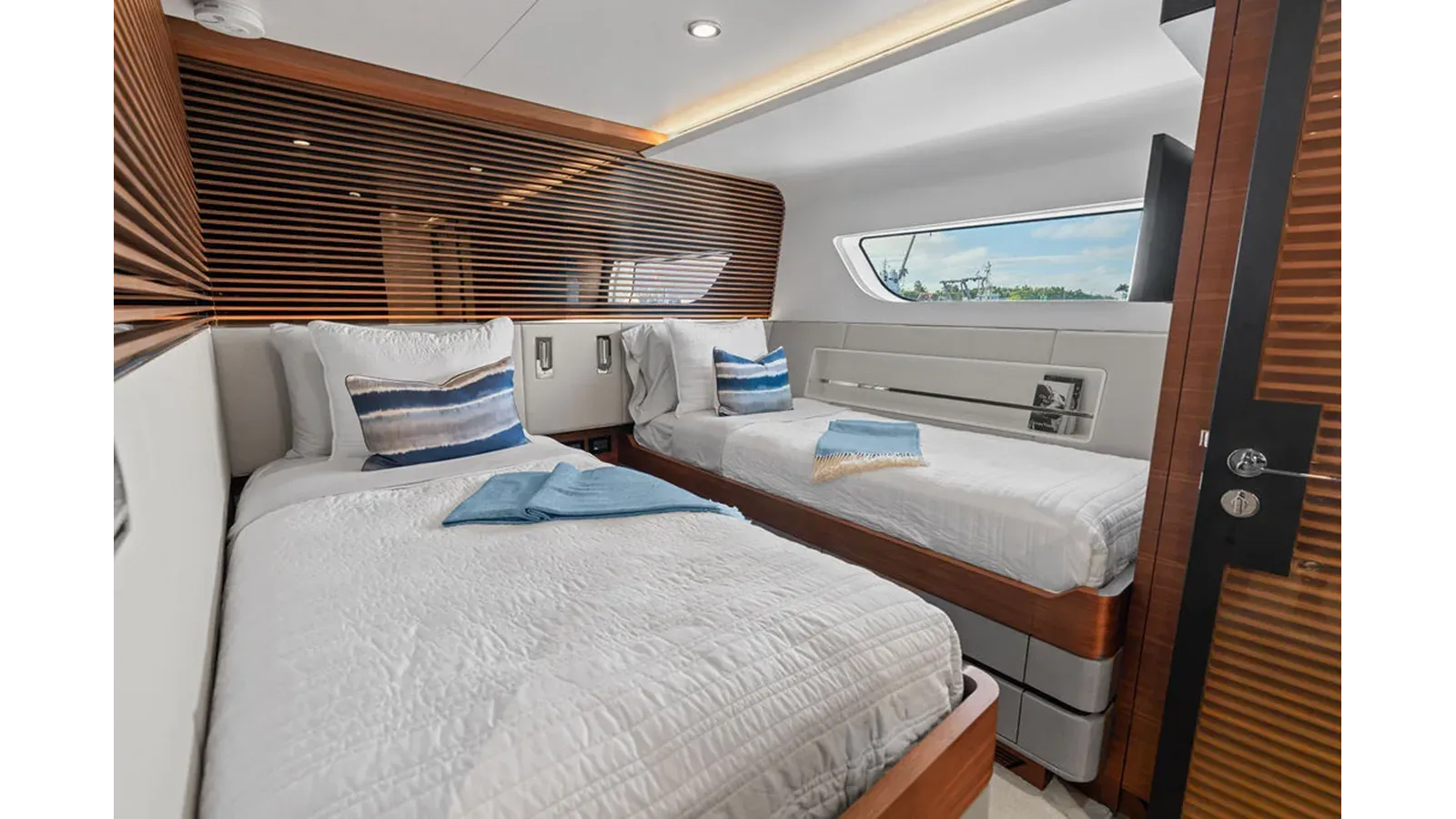

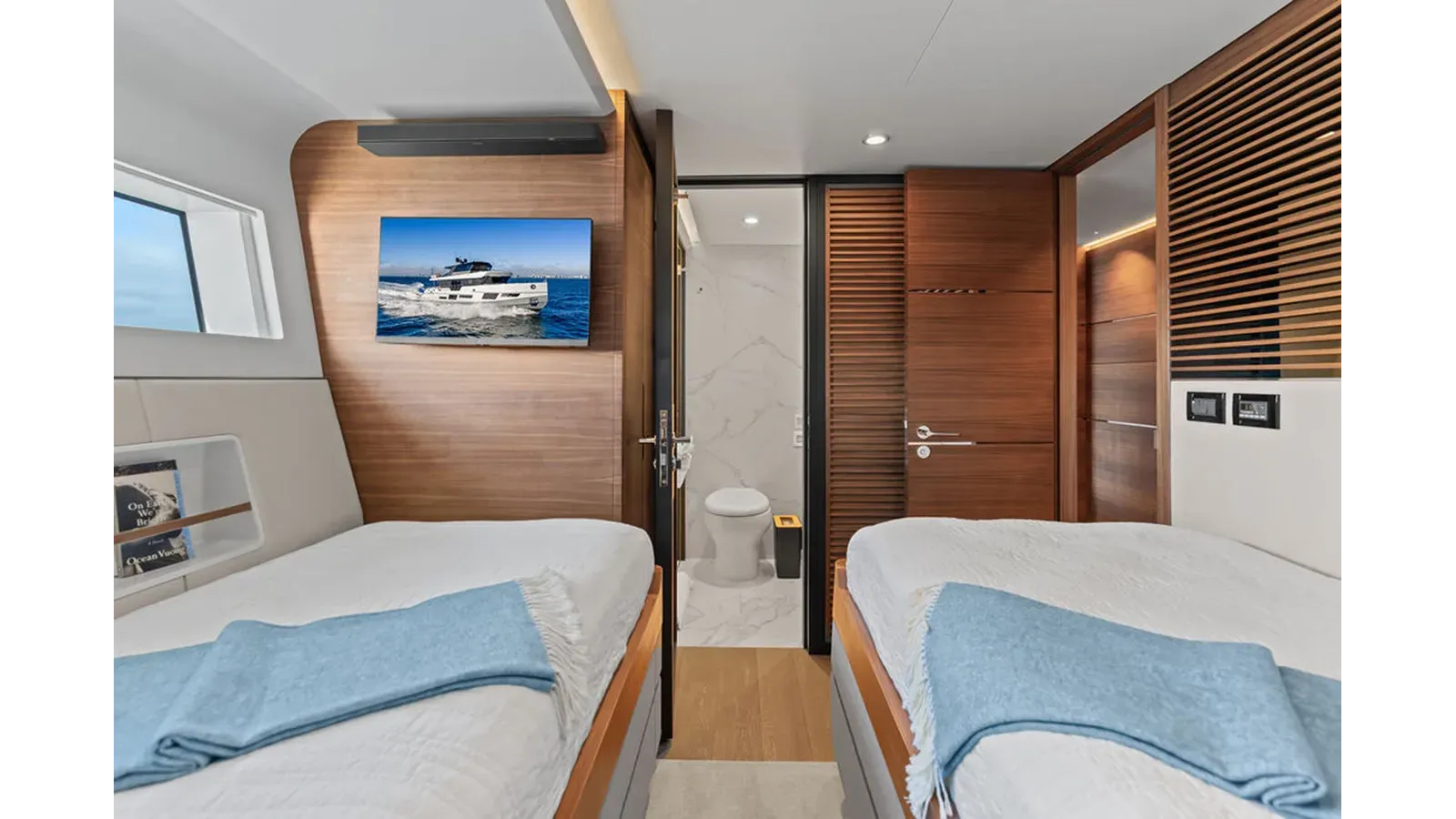

Guest stateroom

Thoughtfully appointed for comfort and versatility, the guest stateroom features convertible twin berths with storage drawers beneath and a carpeted space between, complemented by a night stand for personal essentials. Safety and serenity are assured by a combined smoke/CO detector, while a wardrobe—cedar lined on the back surface and finished with a mirror on the door—keeps attire fresh and organized. The ambiance is refined by layered illumination, including ceiling lights with a convenient switch, valance and floor lights with their own switch, and two focused reading lights with individual switches. Natural light pours through a fixed hull-side window, softened as desired by a recessed window box with a manual shade. For entertainment, a 24-inch TV with sound bar stands ready, and modern connectivity is at hand with USB power outlets, an HDMI socket, and AC outlets.

Stateroom guest head

Thoughtfully designed, the stateroom guest head blends contemporary finishes with practical comfort. Overhead ceiling lights, controlled by a convenient switch, illuminate a CORIAN vanity topped with a wash basin, complemented by refined faucets, bath accessories, and a lighted mirror. Storage is close at hand in a discreet medicine cabinet. A spacious stall shower, enclosed by a frameless glass door, showcases sintered stone walls and a matching floor, while the room itself continues with a sintered stone floor for a cohesive, upscale look. Ventilation and natural light are provided by an exhaust blower and a fixed hull side window set within a recessed window box fitted with a manual shade. Power needs are met by an AC GFI outlet, and everyday ease is elevated by a TECMA electric head with fresh water flush.

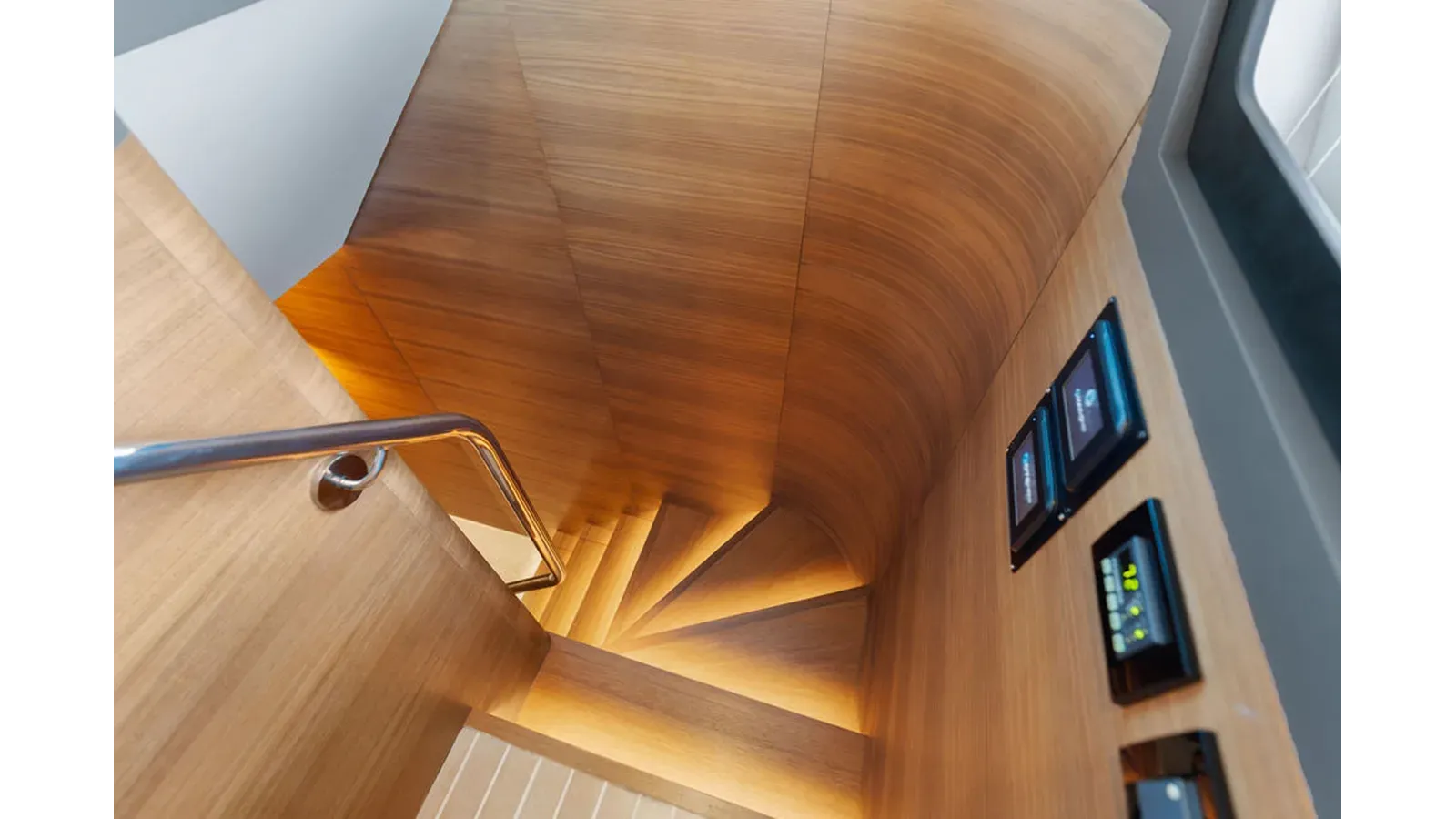

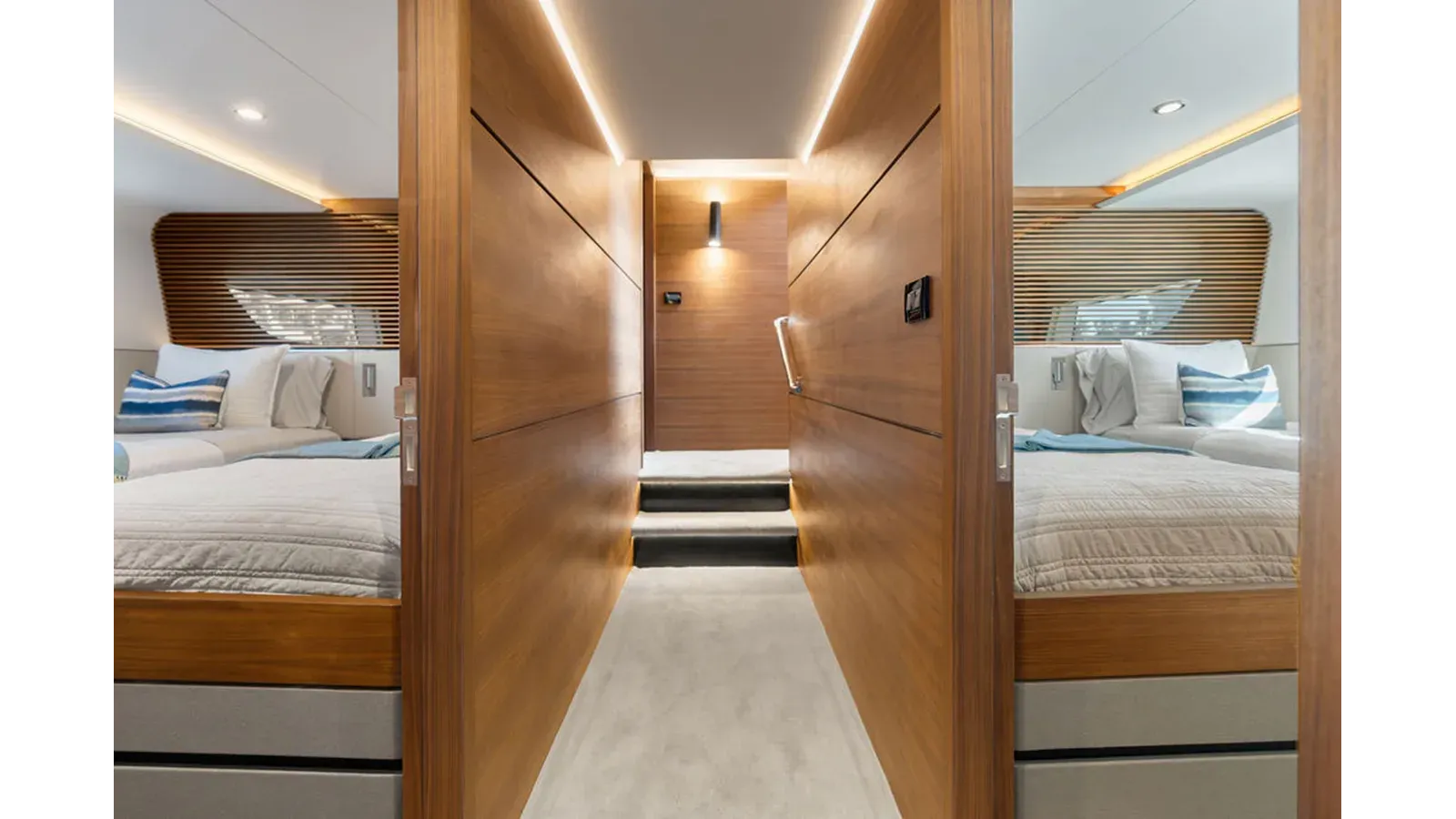

Below deck foyer/passageway

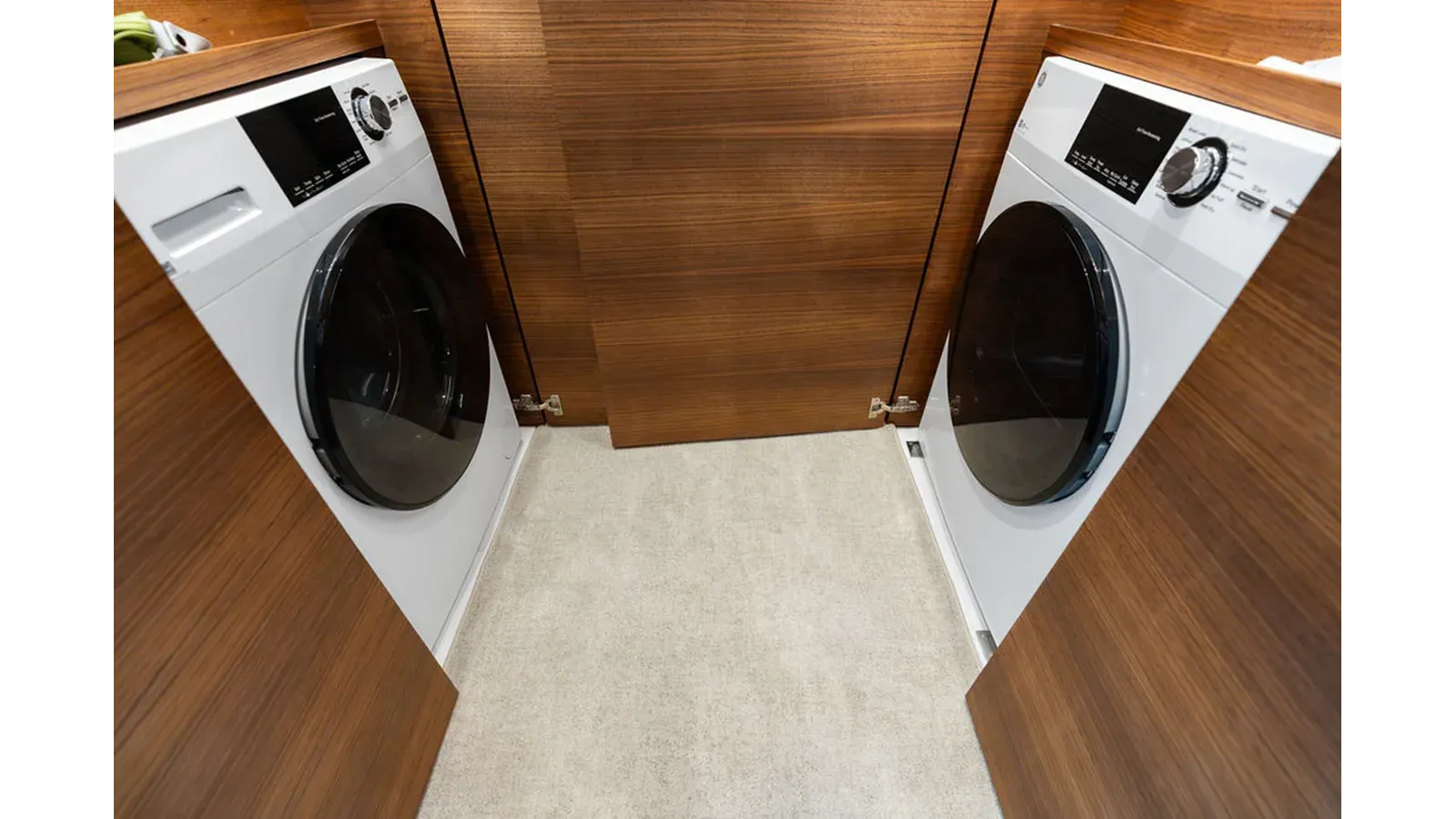

Thoughtfully designed for comfort and convenience, the foyer and passageway feature a built-in 27-inch GE washer paired with a matching 27-inch GE dryer to streamline onboard living. Soft carpeting underfoot enhances comfort and quiets footfall, while a wall sconce adds warm accent illumination and switch-controlled ceiling lights deliver bright, practical lighting exactly when needed.

Port crew stateroom

Thoughtfully appointed for comfort and utility, the port crew stateroom offers upper and lower berths and the peace of mind of a combined smoke/CO detector. A wardrobe, cedar-lined on its back surface, keeps gear fresh, while lighting is both functional and flexible with ceiling lights on a dedicated switch and two reading lights with their own switches. Natural light pours through a fixed hull-side window, complemented by a recessed window box with a manual shade for privacy. Entertainment is ready with provision for a 24-inch wall-mounted TV with sound bar, and power needs are met by USB power outlets and an AC outlet. Underfoot, the AMTICO floor provides durable, easy-care elegance befitting a hardworking crew space.

Captain's stateroom

The captain’s stateroom features a double berth set beside a fixed hull-side window and a recessed window box with a manual shade, welcoming natural light or privacy on demand. Entertainment is delivered by a 24-inch wall-mounted TV paired with a sound bar, while everyday convenience is ensured by USB power outlets and an AC outlet for effortless charging. A wardrobe with a cedar-lined back surface offers refined storage, and a fold-down writing desk provides a tidy workspace when needed. Illumination is both ambient and task-focused, with ceiling lights controlled by a switch and a dedicated reading light with its own switch. Safety and finish receive equal attention, highlighted by a combined smoke and CO detector and the durable, elegant AMTICO floor.

Crew head

Thoughtfully appointed, the crew head features ceiling lights with a dedicated switch that illuminate a painted interior over resilient AMTICO flooring. A TECMA electric head with freshwater flush pairs with a stall shower for everyday convenience, while a CORIAN countertop with sink sits beneath a mirrored medicine cabinet. Refined faucets and coordinating bath accessories complete the space, supported by an exhaust blower for ventilation and an AC GFI outlet for practical utility.

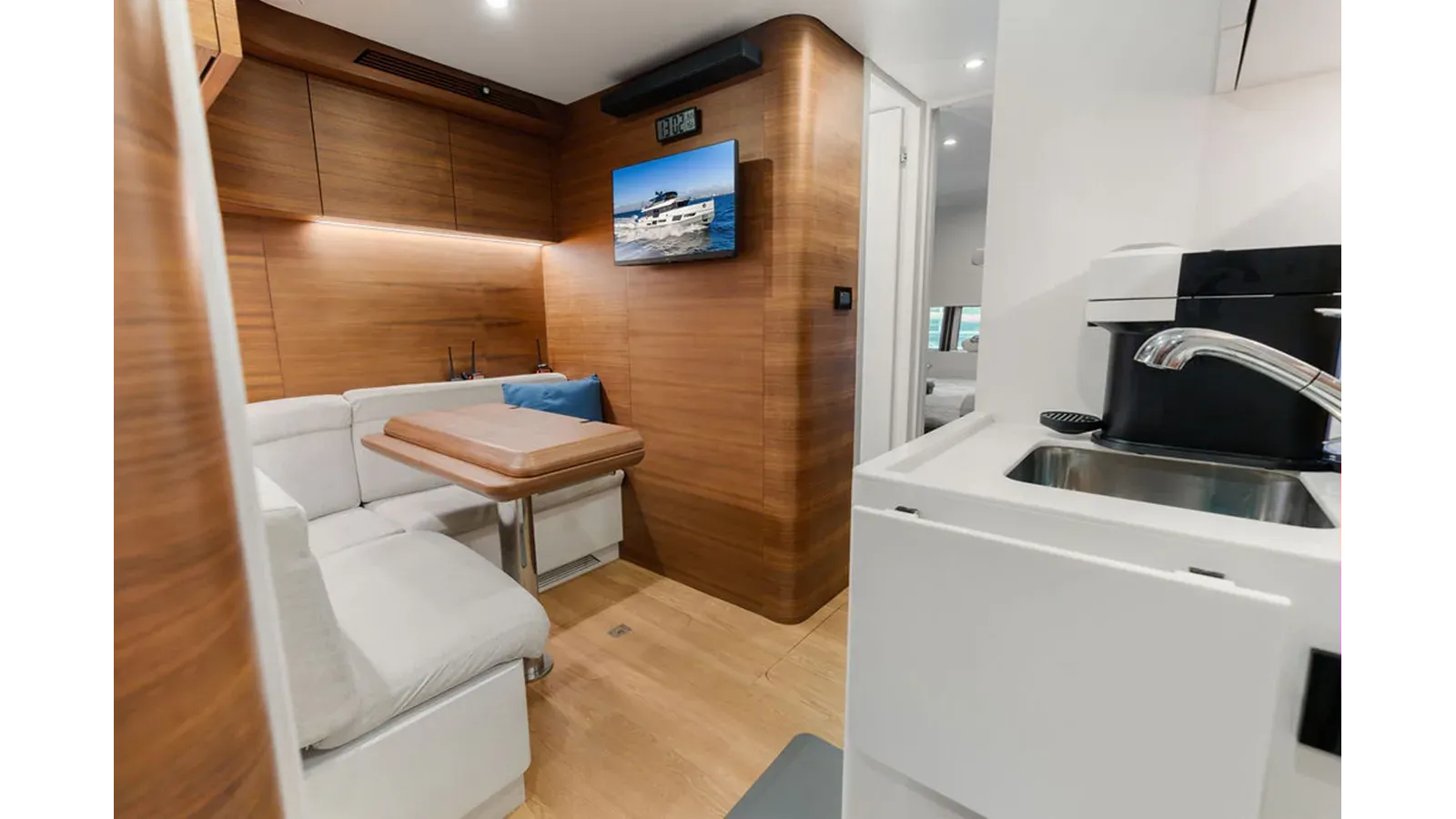

Crew lounge

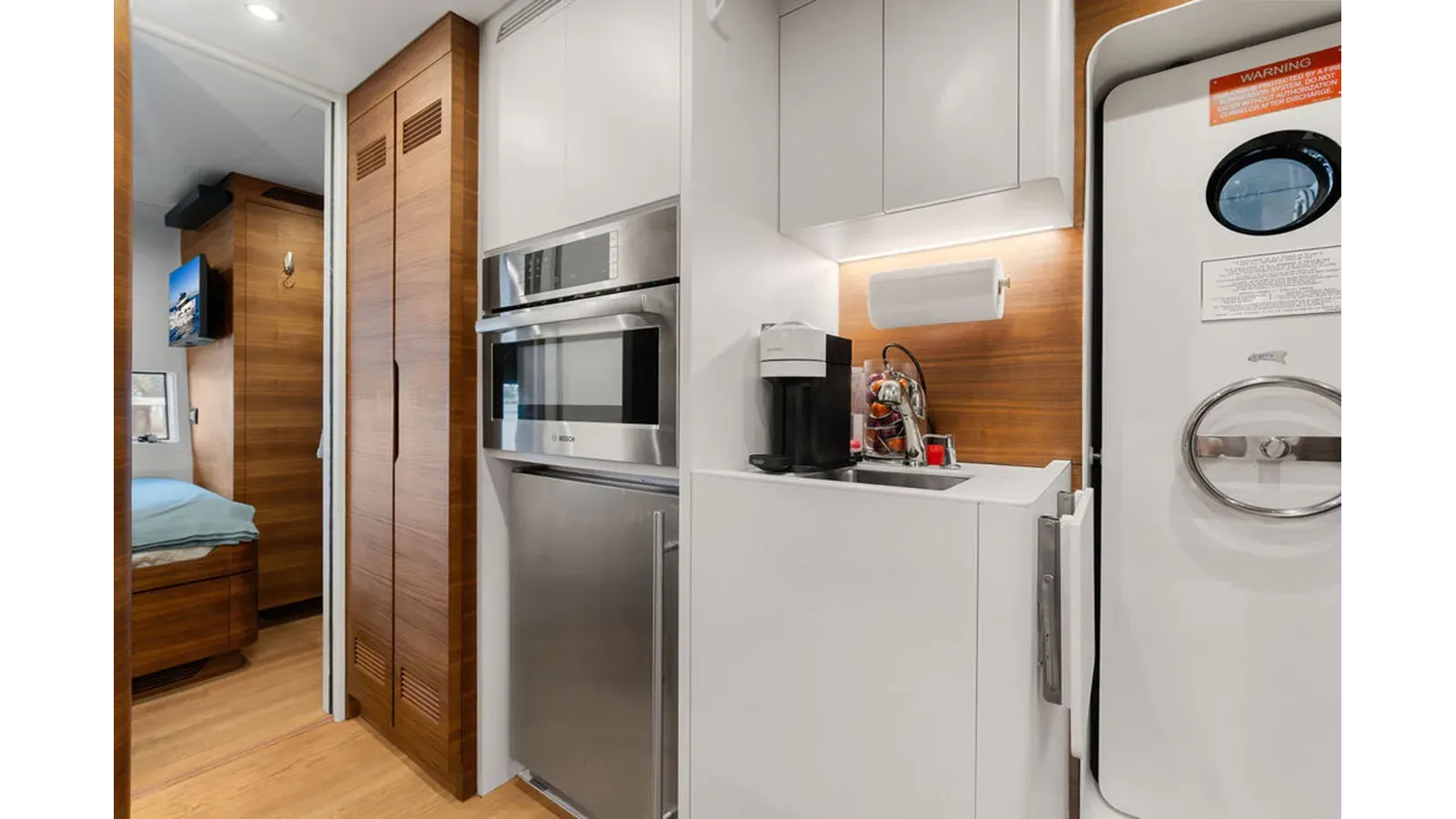

The crew lounge invites relaxation with an upholstered settee and CORIAN table, complemented by a cabinet with a CORIAN top that integrates a sink and faucet, refrigerator, and microwave oven. Entertainment is provided by a twenty-four-inch wall-mounted TV with sound bar, while practical touches include ceiling lights with switch, AC outlets, and USB power outlets. A watertight door leads directly to the engine room, and a staircase to the aft deck is crowned by a stainless-steel–framed tempered-glass sliding hatch. The space is finished with durable AMTICO flooring and benefits from comprehensive GARMIN/CZONE monitoring.

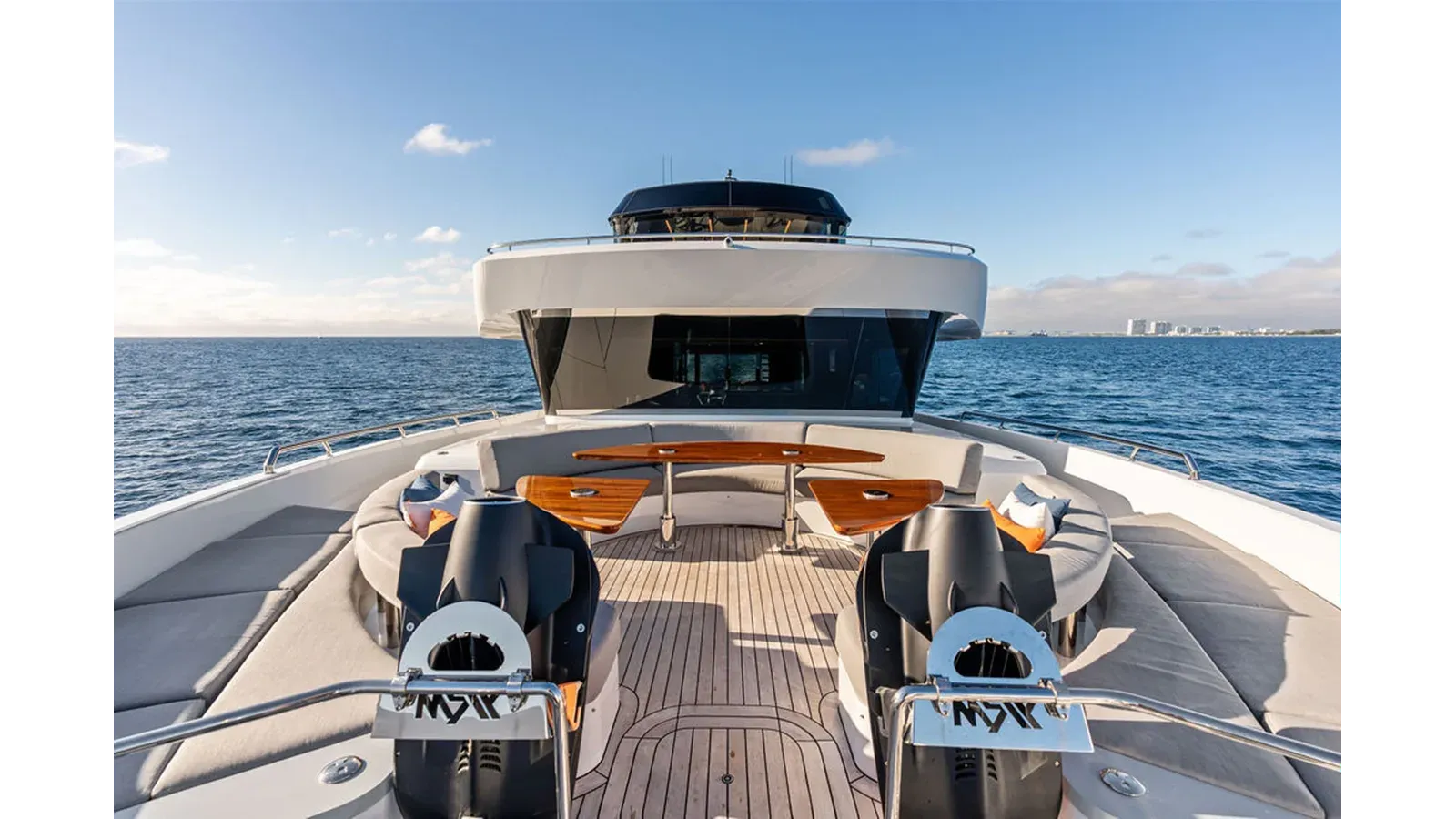

Foredeck/side deck

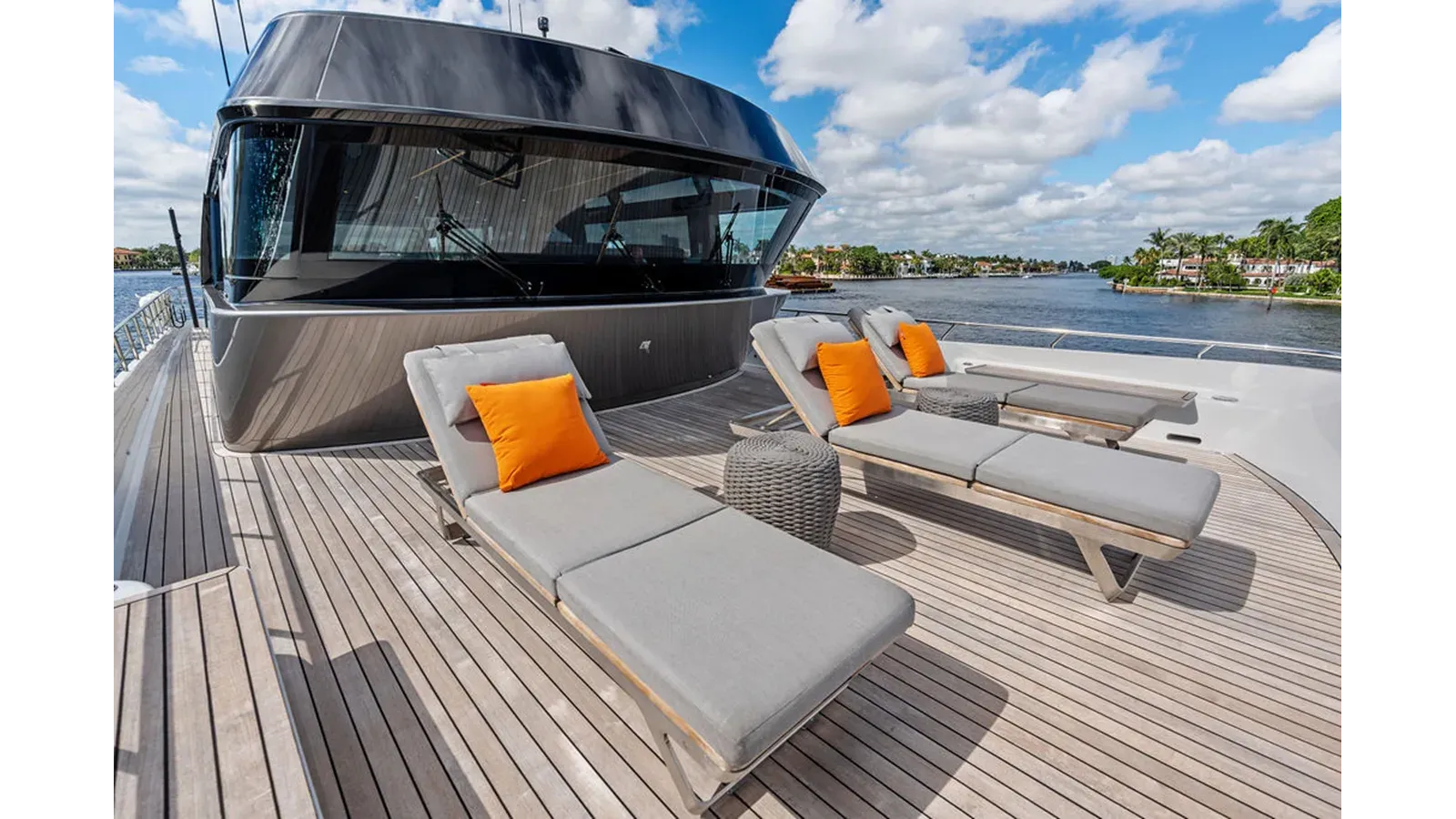

The foredeck and side decks invite relaxation with convertible sun pads surrounding an inviting sun lounge, all set atop a beautifully finished teak deck. Pop-up courtesy lights to each side of the sun lounge, complemented by additional deck-level courtesy lighting, create a refined evening ambience. Entertaining is effortless with three drop-down oiled teak coffee tables and stainless steel cup holders, while a stereo and speakers provide the perfect soundtrack. Practicality is equally assured with ample storage lockers, including a dedicated storage locker for the sea stairs, and discreet sockets for the awning post to enable swift deployment of shade.

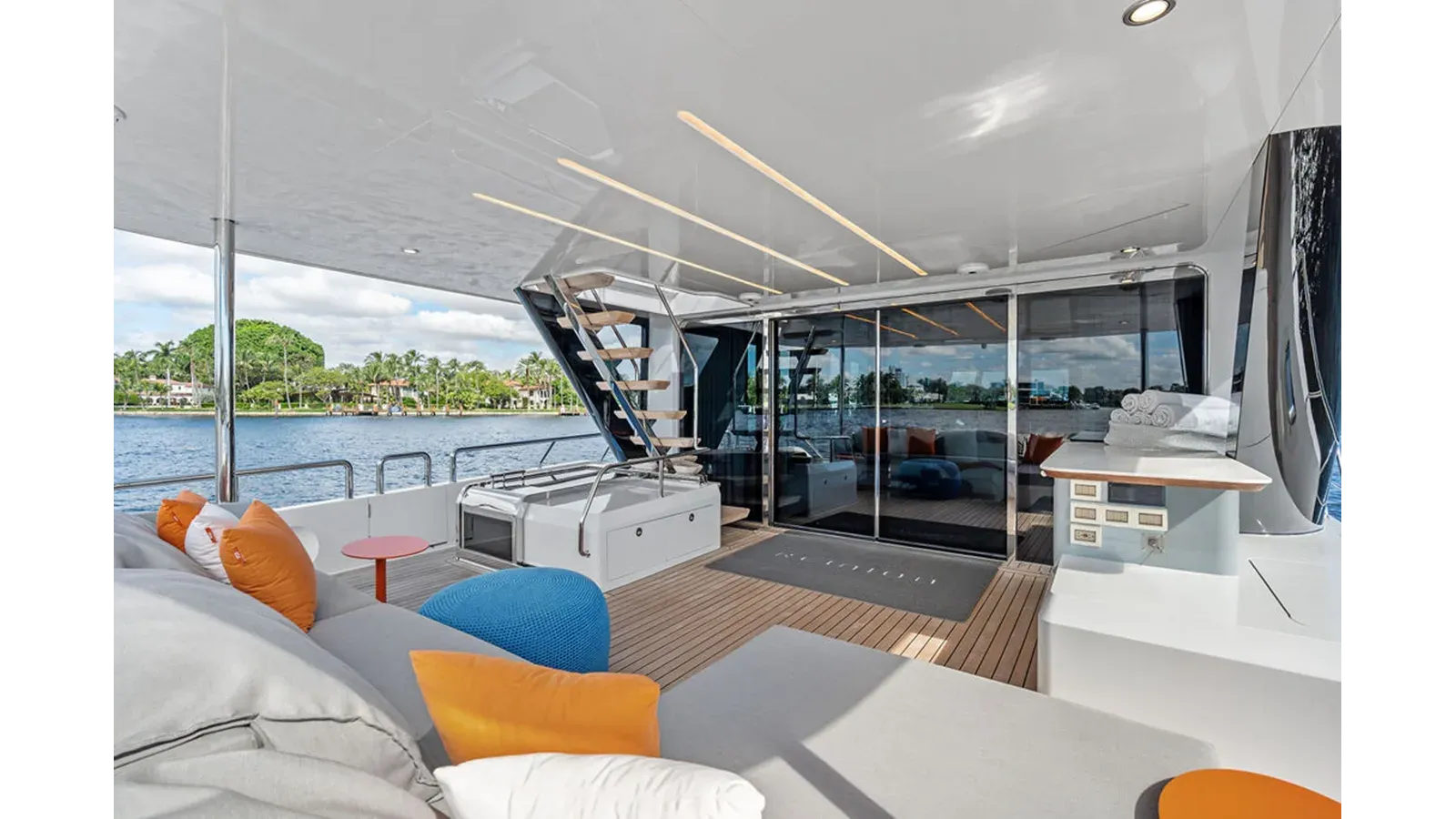

Aft deck

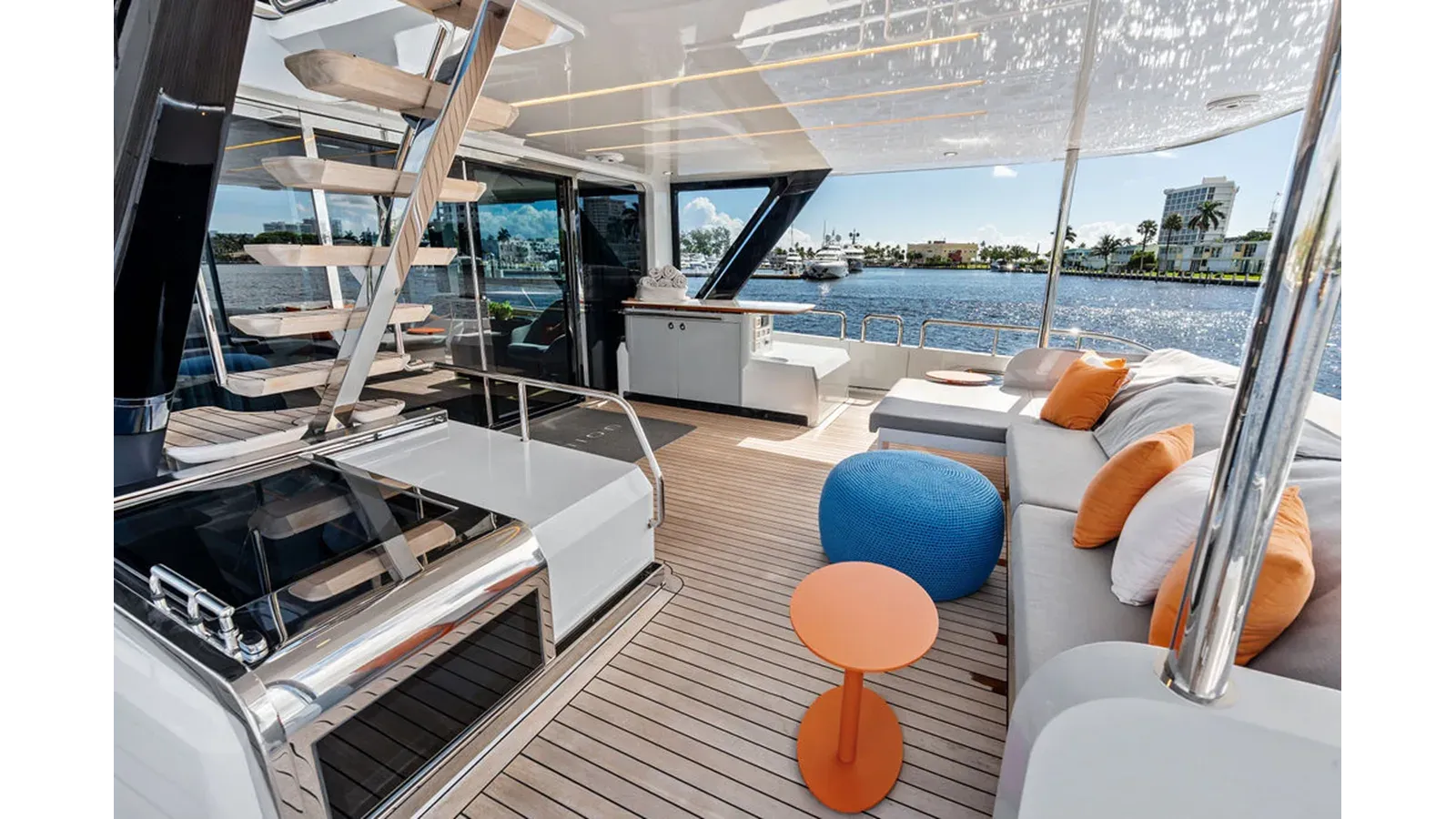

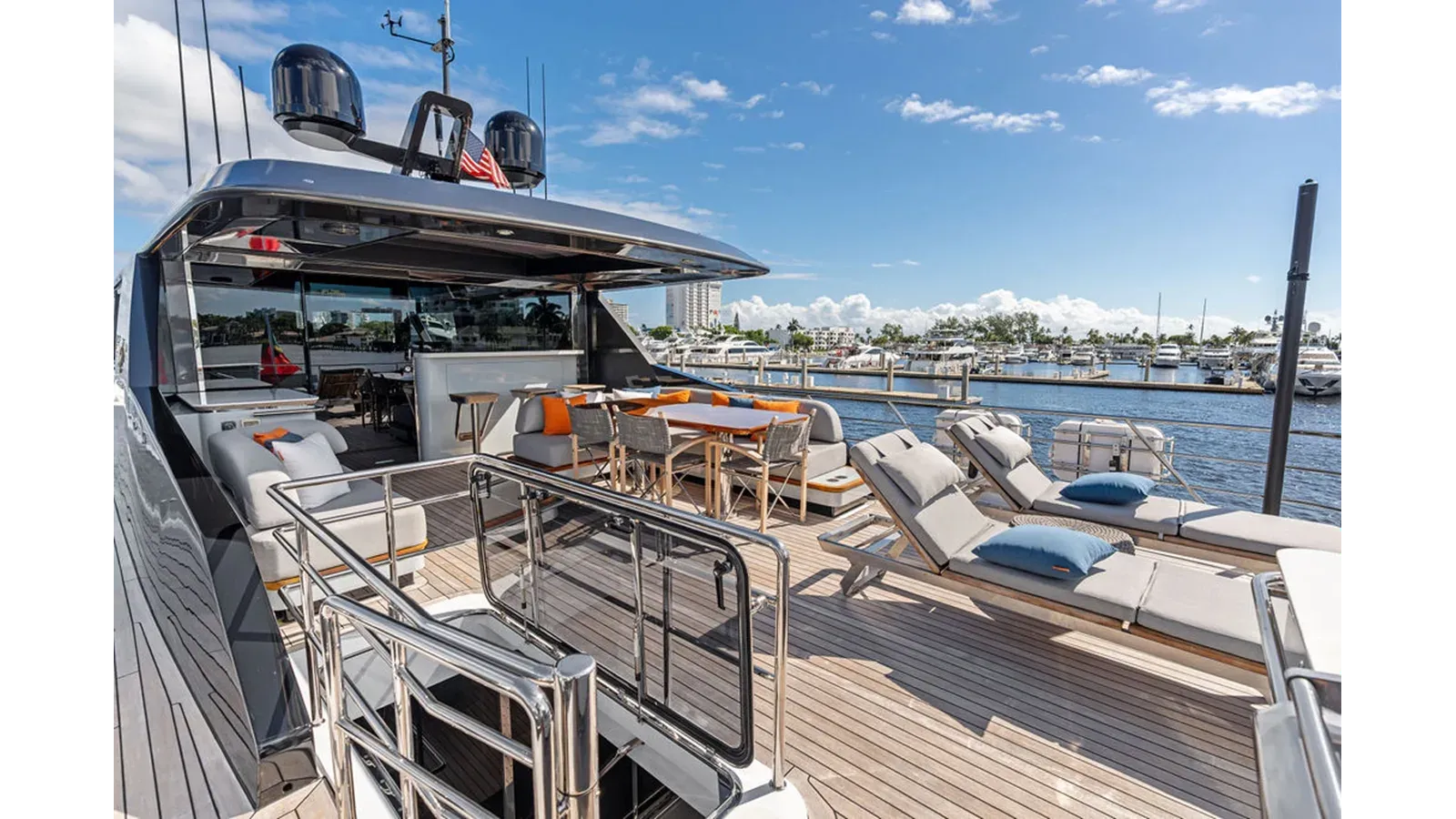

Step onto a teak deck where stainless-steel stairs rise to the flybridge, their teak treads and courtesy lights guiding the way. A convertible fiberglass seat with upholstered cushions invites flexible lounging, while a painted fiberglass wet bar, crowned with a CORIAN countertop, is equipped with a wash basin and faucet, a fridge, and an icemaker. A fresh water washdown hose bib is tucked inside a cabinet alongside convenient storage lockers. Twin stairs descend to the transom sport deck, secured by stainless-steel gates, and overhead lights with dimmer control and switch set the mood. Practical touches abound with USB power outlets and AC GFI outlets, a sliding hatch to the crew quarters for discreet access, port and starboard capstans for confident handling, a ZF remote engine control plug-in for precise maneuvering, and a stereo and speakers to complete the ambiance.

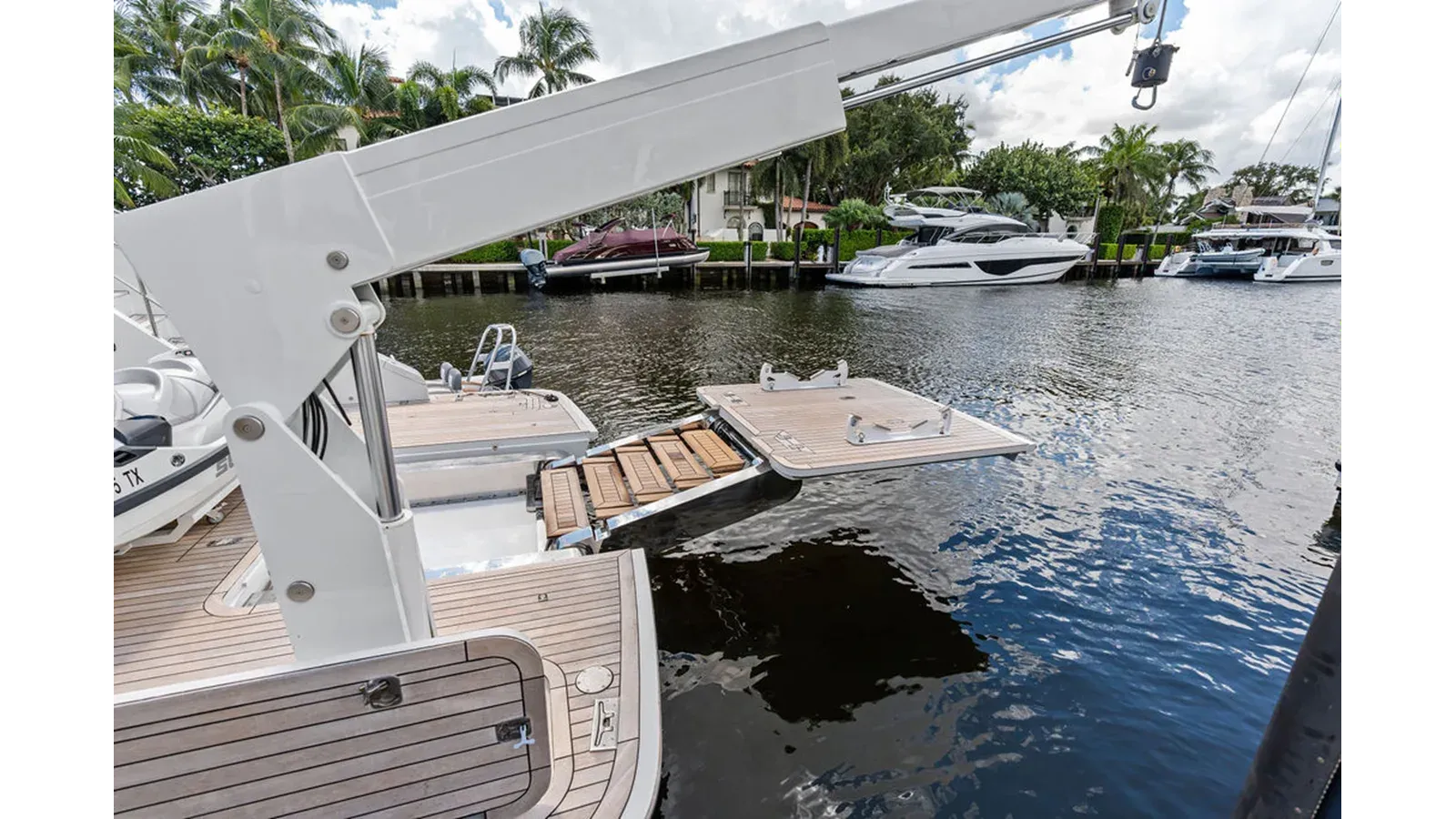

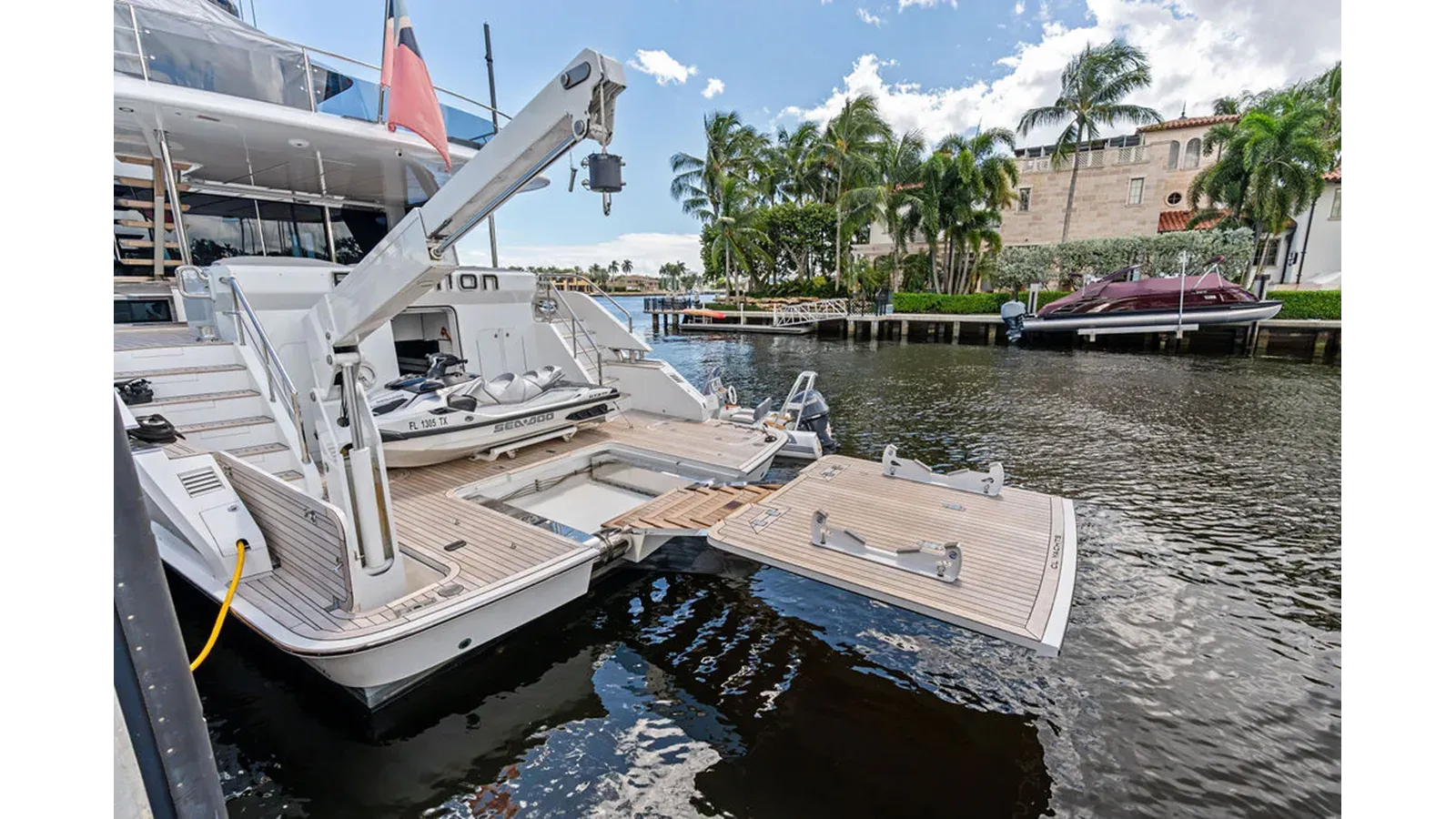

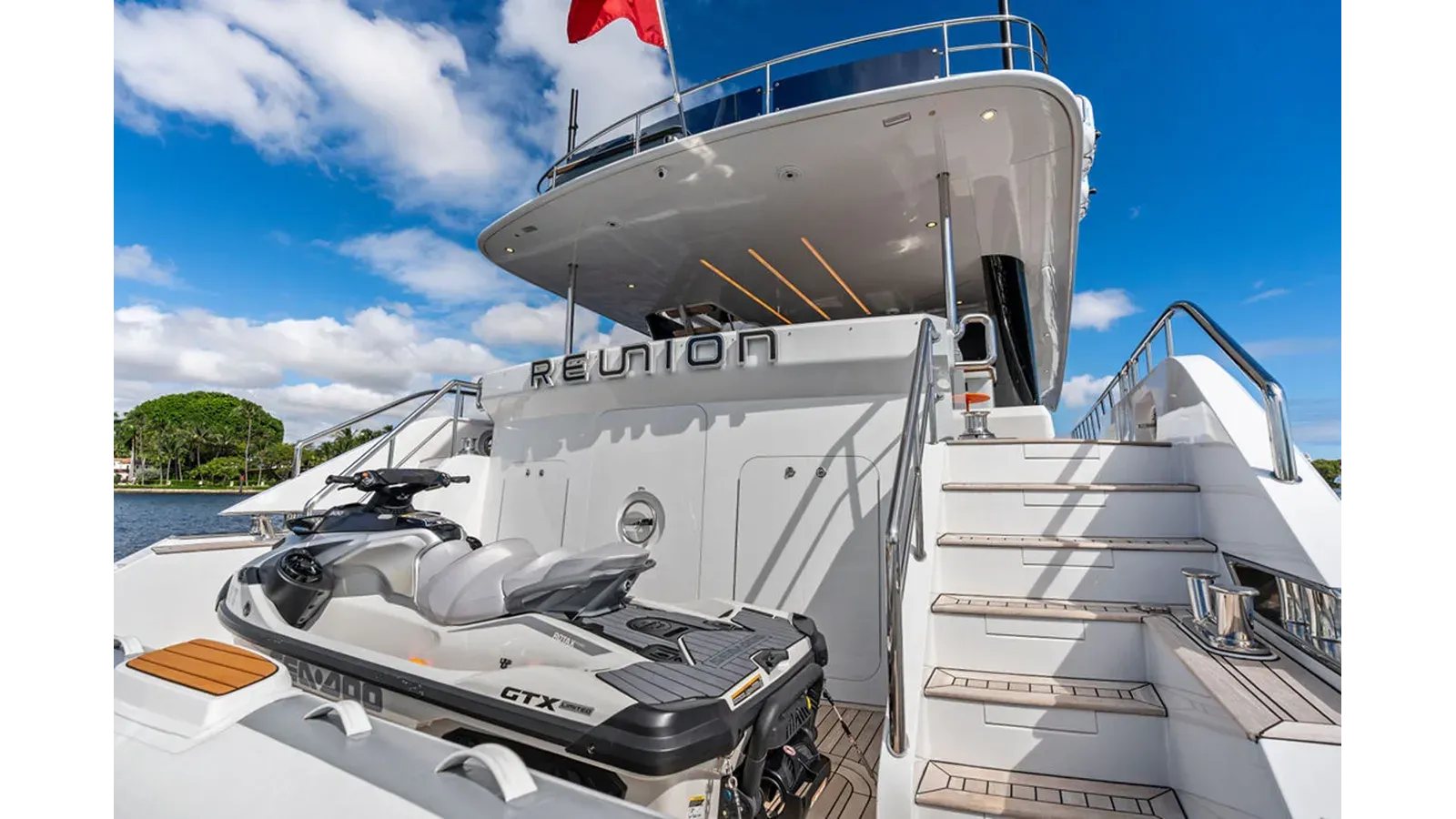

Transom swim deck

The teak-clad transom swim deck sets the stage for effortless waterside living, featuring port and starboard shore power lockers complemented by a dedicated locker for the shore power cable, along with a freshwater shower delivering both hot and cold water for post-swim comfort. Practicality meets safety with a watertight door to the engine room and watertight hatches accessing the gyro compartment, while ample storage lockers keep gear neatly stowed. Pop-up cleats to port and starboard provide secure tender tie-up (not for towing), step lights illuminate the stairs to the aft deck for added evening ambiance, and a versatile Z-Lift boarding platform streamlines boarding and water access.

Navigation package

A comprehensive Garmin suite elevates confidence at sea, integrating a Garmin 4 kW marine radar, Garmin GPS, depth sounder, chart cartridge, a Garmin 25 W VHF, Garmin AIS800, and a Garmin gWind wind sensor, complemented by a 5G wifi network and a CCTV camera system. All systems are interfaced to 22-inch Garmin displays, and the yacht is pre-wired for TracPhone V3/V3-IP.

AV package

The AV package features a Samsung 4K TV paired with Bose interior speakers and soundbar, Apple TV for seamless streaming, and a Fusion stereo driving JL Audio speakers, all complemented by an HDTV antenna for crisp over-the-air reception.

AV electronics

At the skylounge helm, one H25 DirecTV High Definition MPEG-4 receiver is safeguarded by one APC UPS 600VA Battery Backup & Surge Protector, while one Samsung 50-inch 4K Smart QLED Ultra HDTV with Quantum HD R and one Apple TV 4K 64GB deliver stunning content controlled effortlessly through one RCA-HT2 five-unit IR kit. Audio is commanded by one Fusion MS-RA770 Apollo and rendered with authority by one pair of Sonance VP62R six-and-a-half-inch (165 mm) speakers featuring textured polypropylene cones and rubber surrounds, all complemented by one Fusion SVX300 Sirius radio receiver.

On the flybridge, one Fusion MS-RA770 Apollo powers one pair of JL Audio 93728 M6-770X-C-GWGW 7.7-inch coaxial speakers for open-air listening that remains rich and precise underway.

At the bow, one JL Audio M6-650X-C-GWGW 6.5-inch coaxial with a one-inch tweeter partners with one Apollo MS-SRX400 Marine Zone stereo featuring built-in Wi‑Fi, AM/FM, Bluetooth, Apple AirPlay, Wi‑Fi audio streaming, and UPnP.

On the Portuguese bridge, one Apollo MS-SRX400 Marine Zone stereo with built-in Wi‑Fi, AM/FM, Bluetooth, Apple AirPlay, Wi‑Fi audio streaming, and UPnP feeds one pair of JL Audio M6-770X-C-GGWGW 7.7-inch coaxial speakers with one-inch silk dome tweeters, Gloss White Trim Ring, and Gloss White Grille.

Aft, two JL Audio M6-770X-C-GWGW 7.7-inch coaxial speakers with one-inch silk dome tweeters, Gloss White Trim Ring (GW), and Gloss White Grille (GW) are configured as a pair serving both the aft deck and the swim platform—one aft deck, one swim platform—while one Samsung UN32N5300 31.5’ 1080p LED‑LCD TV, one H25 DirecTV High Definition MPEG-4 receiver, and one Apple TV 4K 64GB provide versatile entertainment. Control and power are assured by one Fusion MS-RA770 Apollo with a 4.3-inch capacitive-touch glass LCD color display offering AM/FM, Bluetooth, Wi‑Fi audio streaming, digital optical input, USB audio, AUX x2, UPnP, MTP, and SiriusXM‑Ready, together with one RCA-HT2 five-unit IR kit.

In the main salon, one Samsung 75-inch 4K Smart QLED Ultra HDTV with Q HDR 8X pairs with one Apple TV 4K 64GB and one H25 DirecTV High Definition MPEG-4 receiver, all streamlined by one RCA‑HT2. Immersive sound is delivered via three pairs of Sonance VP62R six-and-a-half-inch (165 mm) speakers with textured polypropylene cones, rubber surrounds, and pivoting design, powered by one Denon 9.2 channel AVR‑X4500H 4K AV receiver supporting IMAX Enhanced, Dolby Atmos, DTS:X, and Auro‑3D. Continuous protection and clean power come from one Tripplite:SU1000RTXLCD2U Smart online 1kva double conversion 2u UPS, while depth and impact are supplied by one Niles SW 6.5’ powered compact subwoofer rated at 800 watt.

The master stateroom features one Samsung Q60R 65-inch 4K Smart QLED Ultra HDTV with Q HDR 4X paired with one Bose Sound Bar 500, one DirecTV H25 High Definition MPEG-4 receiver, one Apple TV 4K 64GB, and one RCA‑HT2 five-unit IR kit, all protected by one APC UPS 600VA Battery Backup & Surge Protector with USB Charging Port.

In the VIP stateroom, one Samsung 55-inch 4K Smart QLED Ultra HDTV with Quantum HD R joins one Apple TV 4K 64GB and one DirecTV H25 High Definition MPEG-4 receiver, enhanced by one Bose SoundTouch 300 soundbar with Bluetooth, NFC pairing, and WiFi technology, and streamlined via one RCA‑HT2 five-unit IR kit.

Each of the two guest staterooms is equipped with one LG 24L J4540 HD 720p LED TV (24-inch), one DirecTV H25 High Definition MPEG-4 receiver, one Bose Smart Soundbar 300 powered sound bar with built‑in Wi‑Fi and Bluetooth, one Apple TV 4K 64GB, and one RCA‑HT2 five-unit IR kit.

In the crew area, one LG 24LH4830‑PU 24‑inch Class HD Smart LED TV with built‑in Wi‑Fi and Ethernet connectivity teams with one DirecTV H25 High Definition MPEG-4 receiver and one Bose Smart Soundbar 300 with built‑in Wi‑Fi and Bluetooth, coordinated through one RCA‑HT2 five-unit IR kit.

The crew cabin features one LG 24‑inch HD Smart LED TV 24LH4830‑PU with built‑in Wi‑Fi and Ethernet connectivity, one DirecTV H25 High Definition MPEG-4 receiver, one Apple TV 4K 64GB, and one Bose Smart Soundbar 300 with built‑in Wi‑Fi and Bluetooth.

In the captain’s cabin, one LG 24‑inch HD Smart LED TV 24LH4830‑PU with built‑in Wi‑Fi and Ethernet connectivity pairs with one DirecTV H25 High Definition MPEG-4 receiver, one Apple TV 4K 64GB, and one Bose Smart Soundbar 300 with built‑in Wi‑Fi and Bluetooth.

Impeccable galley audio is delivered by one Fusion MS‑RA770 Apollo with a 4.3‑inch capacitive‑touch glass LCD color display supporting AM/FM, Bluetooth, Wi‑Fi audio streaming, digital optical input, USB audio, AUX x2, UPnP, MTP, and SiriusXM‑Ready, playing through one pair of Sonance VP62R six-and-a-half-inch (165 mm) in‑ceiling speakers with textured polypropylene cones, rubber surrounds, and pivoting architecture.

For satellite television, one KVH TracVision UHD7 provides DIRECTV ultra‑high‑definition 4K TV entertainment at sea with built‑in support for DISH Network and Bell, complemented by one KVH TracVision UHD7 Empty Dome/Baseplate and one TracVision HD7/HD11 SWM Expansion Kit with sixteen tuners. The vessel is also prepared with prewire cables for off air antenna and prewire cables for VSAT system.

Navigation electronics

Command with confidence from a helm anchored by three Garmin GPSMAP 8622 chart plotters, each with a 22-inch full HD, sunlight-readable screen, complemented by a Garmin GRID (Garmin Remote Input Device) and a Garmin card reader with two SD card slots for mapping. A Garmin GPSMAP 742 Plus touchscreen combo is located in the crew quarters for convenient redundancy and monitoring. Long-range awareness is delivered by a Garmin GMR Fantom 56 six-foot, 50 W solid-state open-array radar with pedestal, whose MotionScope technology detects and highlights moving targets in different colors to help avoid collisions, find flocks of birds, and track weather. Network capacity is expanded via three Garmin GMS 10 Network Port Expanders, while a Garmin AIS 800 Blackbox Transceiver with an internal VHF antenna splitter allows the VHF and AIS to share a single antenna and includes a built-in GPS with a connector for an optional external antenna.

Clear, authoritative communications come from two Garmin VHF 215 VHF Marine Radios with Standard Class D Digital Selective Calling (DSC) functionality and 25-watt transmit power with built-in GPS, backed by two Newmar PA-60/40 Hailer Horn deck horn/hailer units, plus an additional Garmin VHF 215 VHF Marine Radio located in the crew quarters.

Precise bottom tracking is provided by a Garmin GSD 25 Advanced Sonar Module paired with a Garmin Airmar B744VL bronze transducer for depth readings from 800 to 1,200 ft. Real-time meteorology arrives via a Garmin GXM 53 Sirius XM weather antenna, while performance data for depth, speed, temperature, and wind is displayed on a Garmin GMI 20 Digital Marine Instrument Display, integrated through a Garmin GND™ 10 Black Box Bridge and a Garmin gWind™ Transducer, and complemented by an Airmar DST800L-235-N2K bronze thru-hull – Long Stem.

Effortless course-keeping is handled by a Garmin Reactor 40 steer-by-wire Standard Core pack, which includes a GHC 20. Vigilance underway and at anchor is enhanced by five GC 200 Marine Camera - IP Camera 2 - Engine Room, Port/Stbd Wings & AFT.

Onboard connectivity is exceptional, starting with an AN-7000 dual-band, high power Wi‑Fi client—the industry’s first high power, dual-band marine Wi‑Fi solution—which features high power radios, Gigabit Ether and a lightning fast chipset, operating at 2.4 GHz (802.11bgn) @ 1000mW (1W) and 5 GHz (802.11an) @ 1000mW (1W), with two 4’ Comrod antennas. The 4G cellular system further extends reach with an MDS-242-A 4G LTE Advanced high speed modem with dual SIM card slots, six MAP-7 dual band marine access points delivering dual-band (2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n) coverage, an SX-24P8 24-Port Managed Switch with 8 PoE or up to 4 PoE+, and a SMART750R... SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rackmount.
