Inace Yachts 126' Aft House Explorer Yacht - INACE FOR SALE

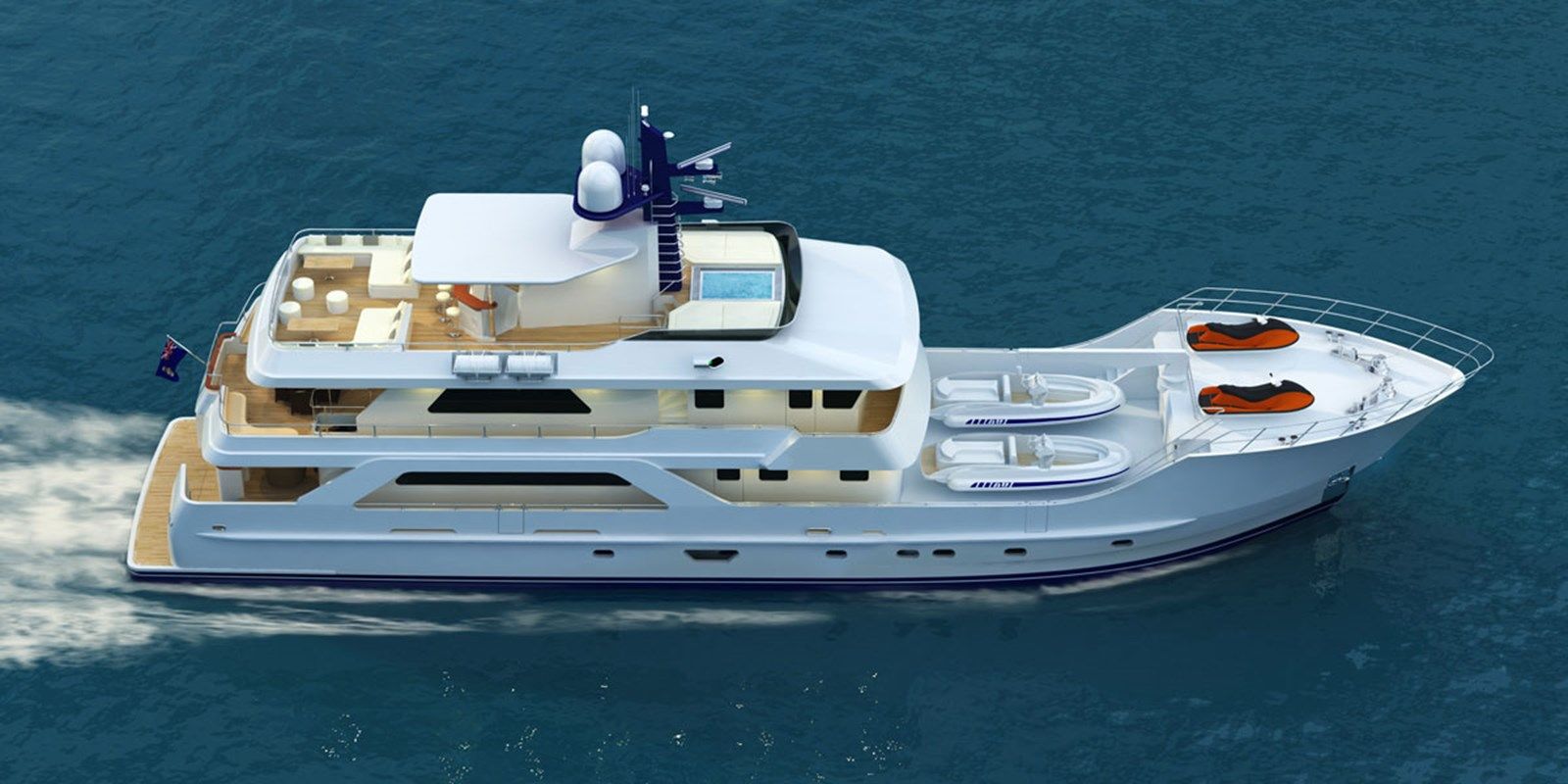

Delivered in 2027 and lying in Brazil, this 126-foot steel expedition motor yacht is purpose-built for bluewater discovery, merging explorer-grade engineering with superyacht poise. A full-displacement hull with a bulbous bow and steel decks announces serious ocean-going intent, while the generous 26-foot beam creates impressive volume and a sense of calm, measured power. She moves with quiet confidence—cruising at 11 knots and reaching 13—an elegant pace that underscores the yacht’s long-range character and comfort-first demeanor.

Inside, the ambience is shaped by Luiz Debasto, whose signature balance of proportion and harmony elevates every moment at sea. Accommodations for up to nine guests are fashioned as restful private retreats complemented by expansive living areas, with eight heads thoughtfully distributed throughout for effortless privacy and ease during extended passages. Dedicated crew spaces—four cabins for seven professionals—ensure polished service and smooth operations wherever the itinerary leads, enhancing the seamless luxury that defines modern expedition yachts.

Beneath the refinement lies reassuring capability. A single Caterpillar inboard diesel delivers efficient, straightforward propulsion, perfectly matched to the yacht’s displacement form for poised seakeeping and range-minded economy. Substantial tankage—approximately 16,300 gallons of fuel and 2,300 gallons of fresh water—supports ambitious, off-the-beaten-path cruising, while the yacht’s deep draft and steel construction speak to unwavering stability and strength. As a true expedition yacht within the motor yacht realm, she invites you to push beyond the horizon in quiet, confident luxury, carrying the spirit of exploration with the grace and serenity only a finely built steel yacht can provide.

Introduction

A touch more style defines the next generation of expedition yachts: the superb 126' aft house explorer by Luiz de Basto, carrying the renowned seakeeping qualities for which Inace is famous. As the second yacht in this explorer/expedition series created with Luiz de Basto and Inace Yachts, she delivers a 6000 nm range and was conceived from the very first line to fulfill a world-cruising mission, capable of extended time in remote regions with limited shoreside support.

A vast full-beam master stateroom is positioned low and amidships at the heart of the yacht, complemented by four additional, exceptionally comfortable guest cabins. She carries a 22' tender along with extensive additional toys. Outdoor living is exceptional, with a huge, fully equipped flybridge, a large lounge and dining deck aft of the skylounge, a welcoming aft deck for dining or entertaining, a massive, well-protected boat deck forward, and an excellent foredeck.

Crew spaces are outstanding, designed for service and separation so the team can reach every area discretely without intruding on guests. The properly sized, fully equipped engine room is arranged for ease of service, and a large lazarette provides even more capacity for toys. Altogether, the 126' represents outstanding value among true world-cruising explorer yachts.

Dimensions and tolerances

With a length overall of 36.61, this yacht carries an approximate full-load displacement of 255.0 MT and a light-load displacement of 180.0 L tons. Fuel oil capacity is approximately 62.000 liters (16,358 US gal), fresh water capacity approximately 8.820 liter (2,330 US gal), grey water capacity approximately 1,580 liter (417 US gal), and black water capacity approximately 2,300 liter (607 US gal). Power is provided by two C18 Caterpillar "B" rated main engines delivering 600 BHP at 1800 rpm, yielding an 11-knot cruise at 90% max rpm and a 13-knot maximum speed.

Accommodations

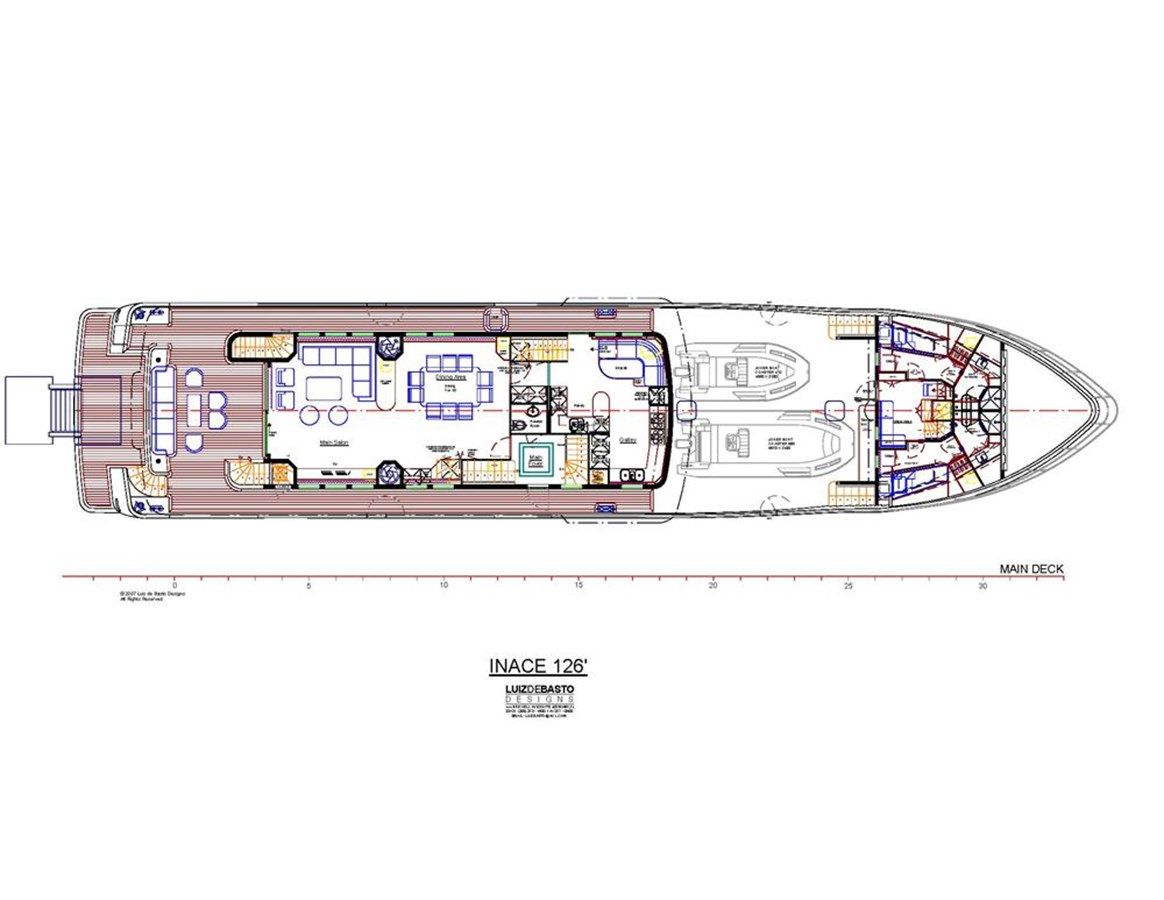

Accommodations aboard the 126-foot yacht are far more expansive than typically found on a vessel of this size. On the main deck, a spacious lounge leads to a separate dining area, with a large professional galley to port and a foyer and day head to starboard, while the aft deck offers a comfortable settee with table for relaxed al fresco moments.

Designed for serious culinary service, the galley features a dedicated chef’s zone with double sink, six-burner cooktop, stacked ovens, microwave, a full-size side-by-side refrigerator/freezer, and dishwasher. To port, a crew lounge with table enhances efficiency and comfort. Aft of the chef’s area, the U-shaped stewardess station adds a second double sink, dishwasher, trash compactor, under-counter refrigerator, and an expansive counter—part of which forms a plating station dividing the two work zones—backed by extensive storage throughout. Just aft to port, a door opens directly to the side deck, with adjacent stairs rising to the pilothouse and a separate doorway into the pantry that buffers the dining room from the galley. The pantry itself is thoughtfully appointed with an ice maker, storage, coffee area, service counter, and a wine cooler.

Forward on the main deck ahead of the boat deck are two identical crew cabins with two upper-and-lower bunks and ensuite heads, flanking a crew lounge arranged with a settee, desk, table, and TV. Stairs from here descend to the laundry and provide convenient access to the lower guest area.

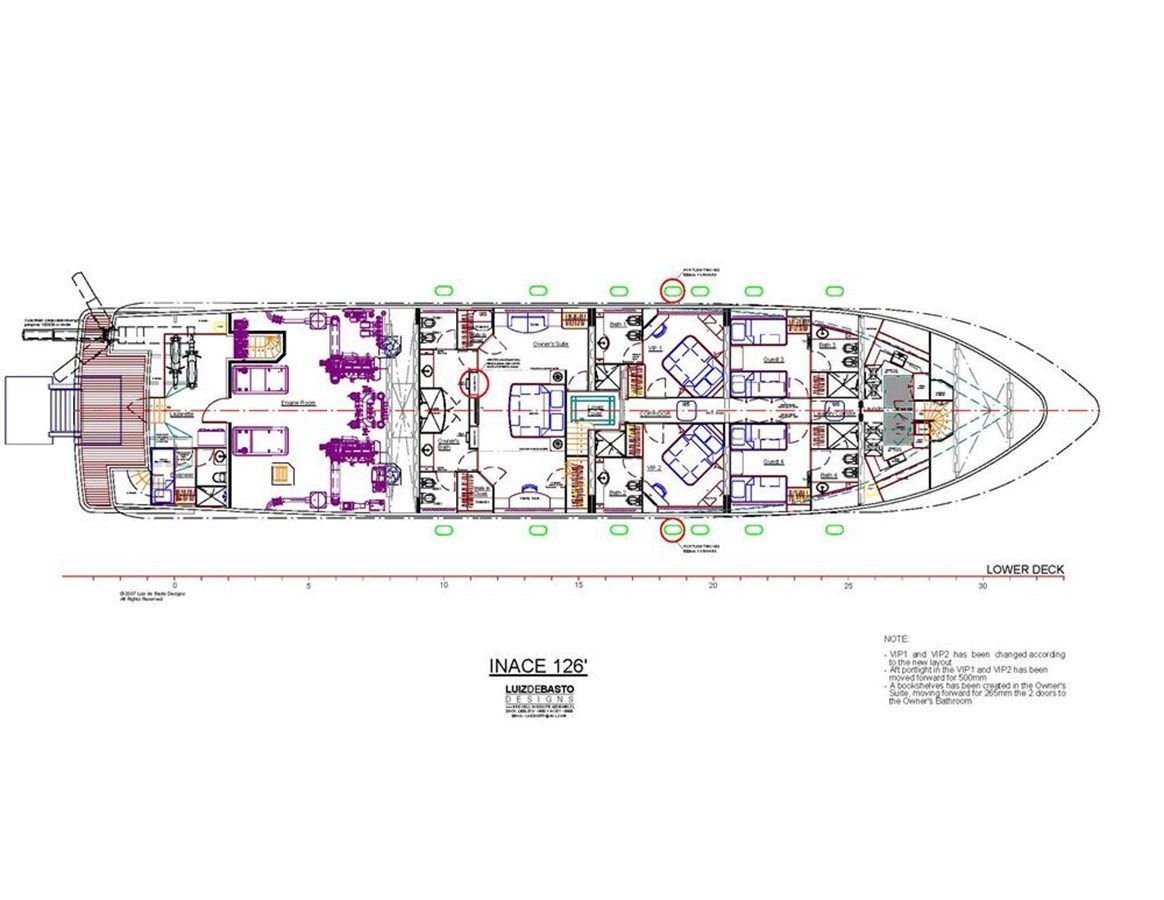

The lower deck hosts the full complement of guest accommodations: the master stateroom, two VIP queen staterooms, two twin staterooms with Pullman berths, a laundry, and additional refrigerator and freezer space.

Positioned amidships below, the full-beam 27-foot master stateroom is notably larger than one would expect on a 120-foot yacht. It centers on a king-size bed and offers two matching walk-in closets with built-in drawers and shoe storage, supplemented by two additional large hanging lockers. A settee graces the port side, while to starboard a desk/dressing table provides a refined workspace and vanity. Aft lies the his-and-hers head with a large central shower, all finished in rich Brazilian granite.

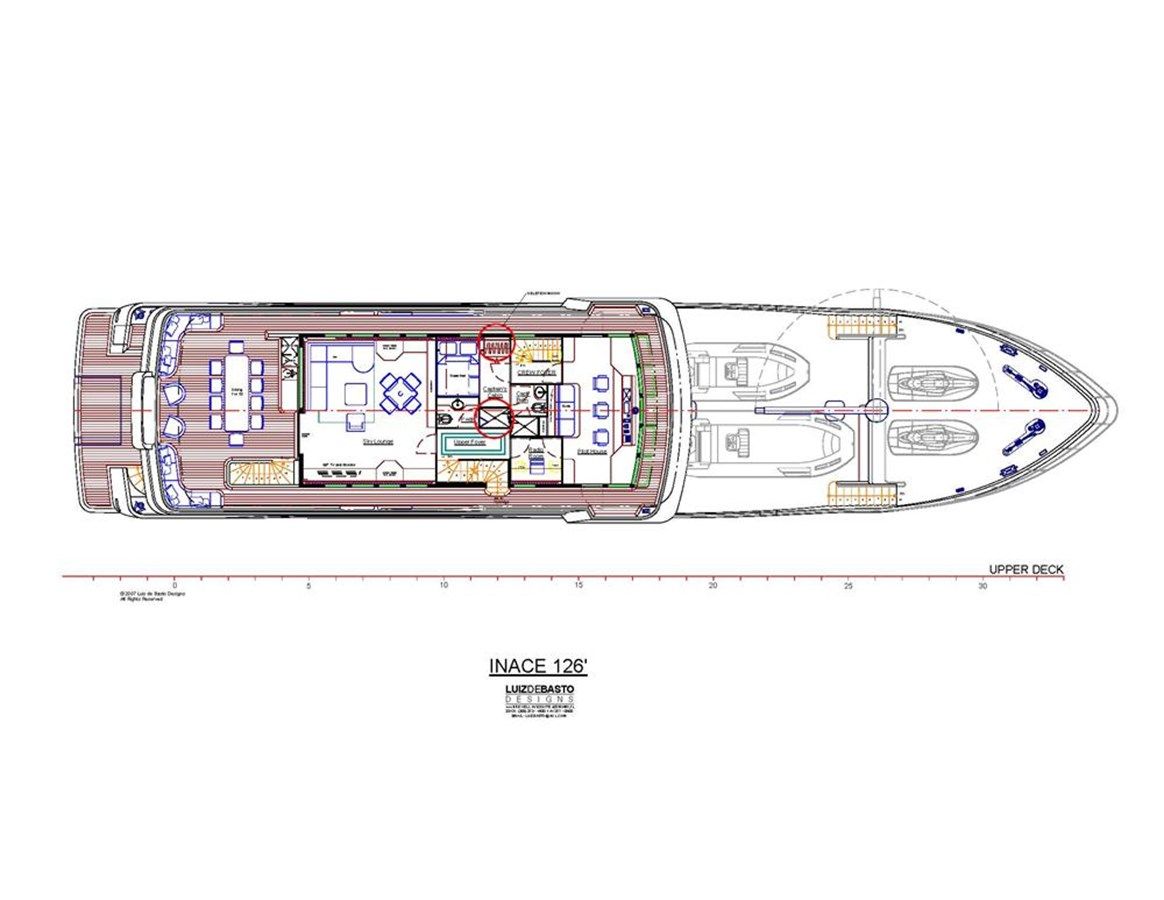

On the pilothouse deck, a substantial wheelhouse forward includes a settee, and to port a passage leads either down to the galley or aft to the Captain’s cabin with double bed and ensuite head. Aft on the starboard side, the radio room opens to the upper foyer with day head, flowing into a welcoming sky lounge arranged with a settee, TV area, and office desk. Outside, the aft deck features a large dining table complemented by a wet bar.

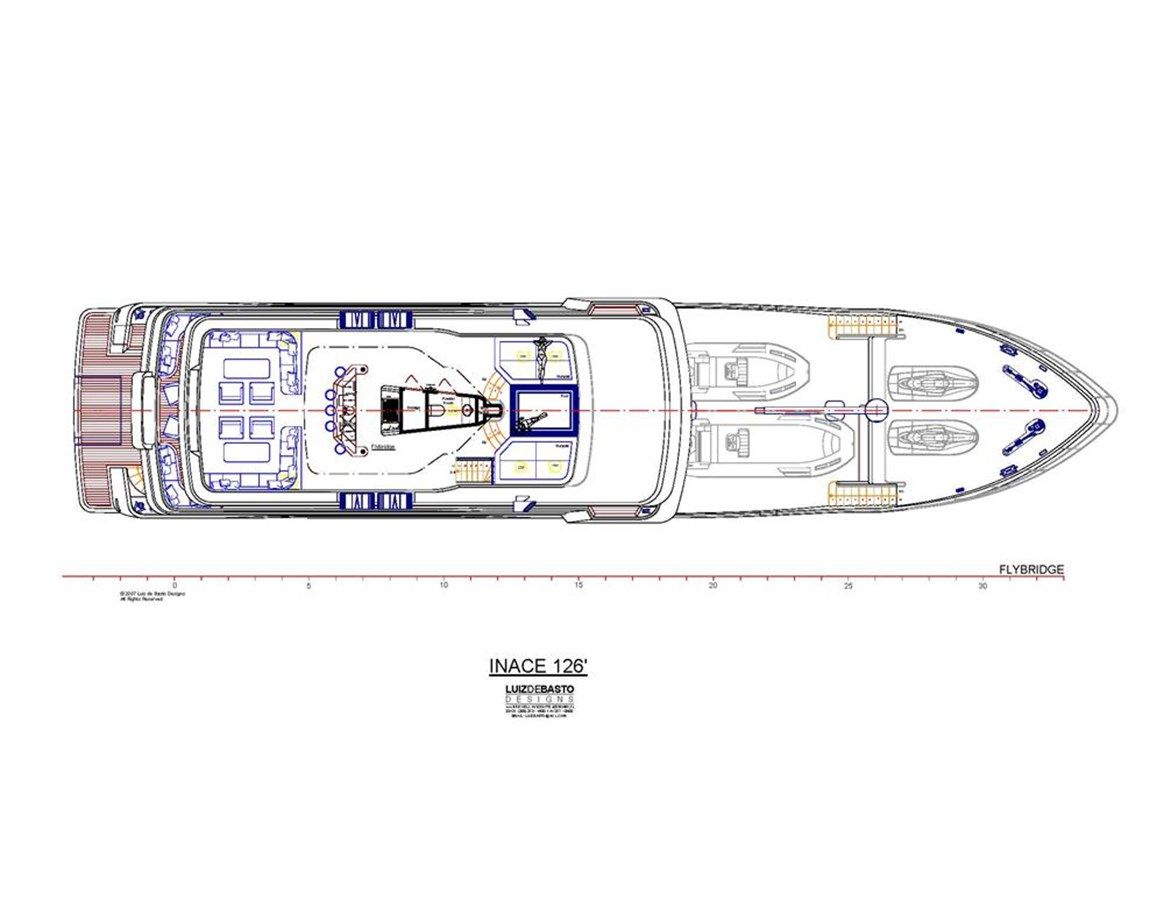

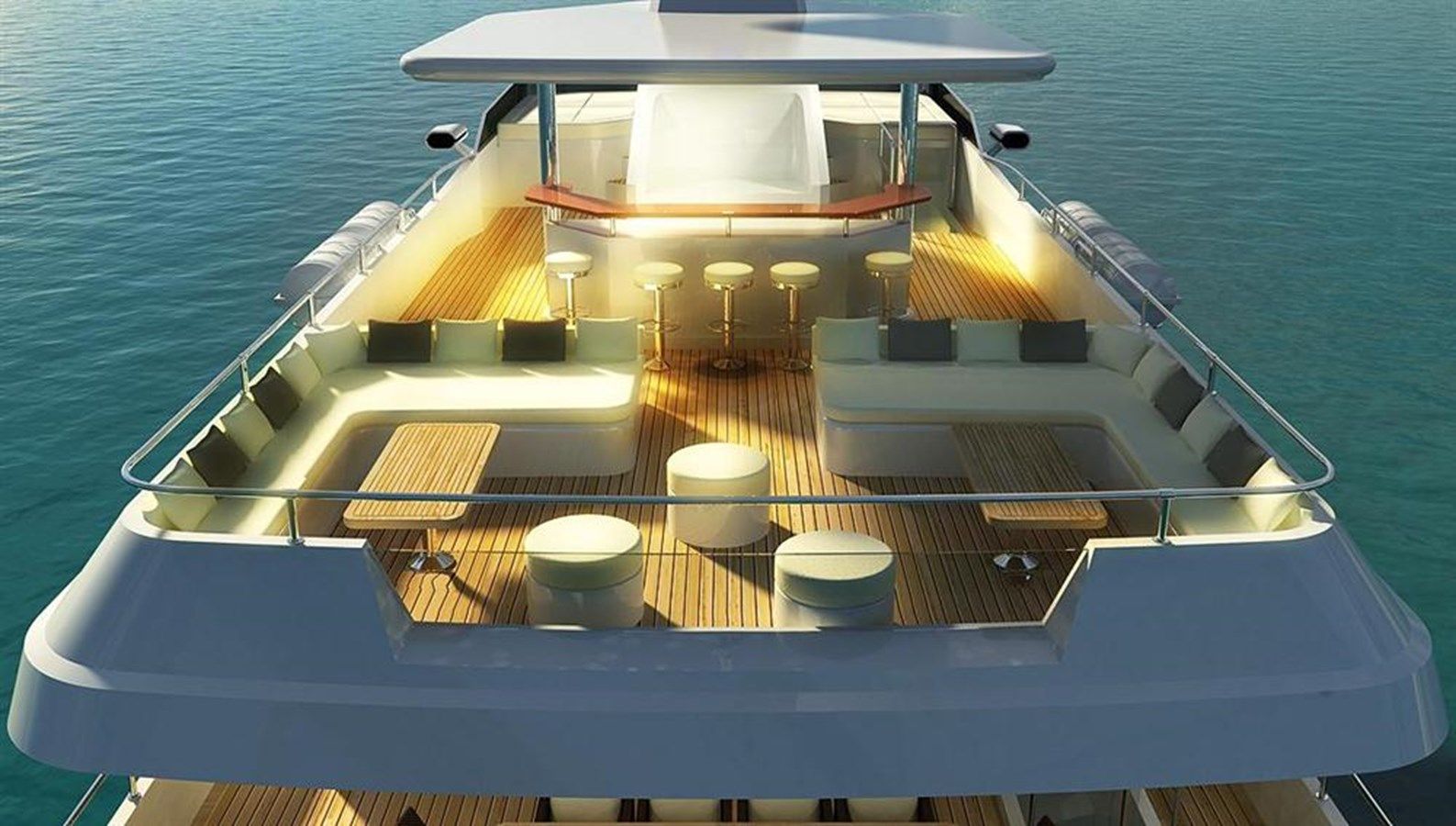

The expansive flybridge elevates open-air living with a full bar and BBQ, built-in seating, ample storage, a day head with outdoor shower, and a full-size Jacuzzi framed by an oversized sun pad area. The boat deck carries an extensive assortment of toys, accommodates a 22-foot tender, and provides additional storage, while the large foredeck can be outfitted to carry more toys or storage boxes as desired.

Major equipment list and systems

Power comes from two Caterpillar C-18 main engines, B-rated at 600 BHP at 1,800 RPM, with 24V electric start, lubricating oil filters, dry exhaust manifolds, a 24V alarm system, and a mechanical instrument panel, and the engines are to be painted white. Propulsion is matched to two Twin Disk Mod 5114 reduction gears or similar with a 3.50:1 ratio and engine-mounted oil coolers, and the gears incorporate a power take-off system with an electric clutch to drive the bow thruster, windlasses, and crane. Ship’s power is provided by two Caterpillar, Kilo Pak or similar 50 kW generators at 1,800 rpm, 400/230 V, three phase, 50 Hz, mounted on double mounts with fiberglass sound shields and gas-water separators. The propellers are a matched pair—one right-hand and one left-hand—fabricated in bronze with five blades. Engine exhaust is of the wet type by Centek or similar, with exhaust lines looped up from the engine and water injected high on the downward run before the muffler to ensure optimal silencing and safety.

Command is delivered through ZF Mathers, Kobelt or similar electronic controls with console-mounted control heads installed in the wheelhouse, the flybridge, and at the two wing stations. Steering is Kobelt or similar with four stations—wheelhouse, flybridge, and two wing stations—and includes twin steering pumps and twin ABS-approved rams; the wheelhouse pump is manual to provide full backup capability. Close-quarters authority is ensured by a 20-inch American Bow Thruster unit rated at 75 HP, driven from the main engine gears; per the manufacturer’s design, the system delivers 75 HP even at main engine idle.

For comfort underway, stabilization is by Quantum Marine or TRAC in a two-fin configuration. The hydraulic architecture is specified by Quantum Marni or TRAC, with the two-fin stabilizer system, bow thruster, crane, and windlasses sharing a common hydraulic power source. Pumps are driven off the PTOs installed on the transmission gears, and the system is engineered to deliver full power to the bow thruster and windlasses at main engine idle speed, with an integrated common bow manifold providing proper pressure and flow to both bow thruster and windlasses.

Ground tackle is robust, with two Maxwell or Muir 6,000 lbs windlasses and 450 feet of 5/8-inch high-tensile chain on each side, port and starboard, and a 240 kgs Navy-type anchor stowed in two polished stainless steel anchor pockets located to port and starboard at the bow. Tender handling is via a 2,000 kgs Opacmare or similar hydraulic boom crane with an independent electro-hydraulic backup system, while boarding is facilitated by an Opacmare or similar model 5335/40 hydraulic passerelle.

Climate control is provided by an Aquair model A18-3-1 VHD plant consisting of three compressors with an 18-ton Aqua Air Alpha Series capacity or equivalent, with chillers installed in the engine room. Seawater cooling is handled by two self-priming pumps—one as a stand-by unit—and fan coil thermostats are Tempwise-2000. Fan coil units cool designated areas as furnished and installed per manufacturer-recommended BTU estimates.

The fuel oil system features tanks integral with the hull, fitted with sounding tubes and level indicators tied to the tank monitoring system. Total capacity is 16,000 gallons in six tanks: two main tanks, three forward tanks, and one day tank. An Alfa Laval or similar MIB 303 fuel system is installed, and a mechanical reset-type Fill-Rite or equal flow meter totalizer is fitted in the transfer line with a manual fuel transfer pump. Fuel filtration is arranged per engine and generator manufacturer specifications, with both main engines on duplex Racor filters and generators on single Racor filters, all with isolation valves and vacuum gauges. Specifically, the system includes two Racor Mod. 75900MAX30 units for the main engines and a Racor Mod. 900MA30 single unit for the generator. Sight gauges are placed adjacent to the tanks, with fuel tank level monitors at the wheelhouse, and drip trays are provided for all pumps, drains, and fuel filters.

For lube oil management, two storage tanks are installed—one for clean lube oil and one for waste oil—each filled within the engine room via a 25 mm fill pipe with screw cap and vented into the engine space with a 25 mm screened vent. A dipstick is provided on the clean oil supply, and both tanks are fitted with sounding pipes and clean-out plates akin to the manhole covers of the large integral tanks.

The seawater system employs two sea chests in the engine room using eight-inch pipe sized for combined service plus a thirty percent overage for downstream losses. Removable filter screens are located in the sea strainer pipes, which terminate at or above the waterline for easy filter removal. Bronze flanged angle globe sea valves are fitted per classification requirements, and all flanged joints are fully isolated against dissimilar metal contact; the strainer pipe bottoms are flanged for easy removal. A crossover pipe with a shut-off valve supplies the system and is sized to maintain adequate flow under full usage with only one suction. The sea chest crossover includes a fresh water connection to allow filling the seawater piping while dry-docked, and the chests have removable tops. A vent valve is arranged to accept compressed air for clearing the system. Engine room seawater inlets serve the main engines, generators, air conditioning, hydraulics cooling, refrigeration, water maker, and fire system, with bleed valves on main engine and generator seawater cooling pumps and heat exchangers to release entrapped air. External sea chest grills are of the removable type for diver cleaning.

Navigation lights are Aqua Signal or similar. Engine room ventilation is powered by two fans—one supply and one exhaust—each variable speed and separately switched, with variable frequency drives included. Intake and exhaust air are ducted through grills, water traps, baffles, or trunks per the builder’s design, and remote-actuated fire flappers/doors are provided for both intake and exhaust as part of the fixed fire suppression system.

The fresh water system employs two pressure pumps piped in parallel, controlled by automatic pressure switches set at slightly different pressures, and a large-volume pressure tank downstream to deliver steady supply to all sinks and showers. The hot water system branches from the fresh water main and consists of three 40-gallon electric water heaters with an integrated circulating pump. Fresh water independence is extended by two FCI or similar 1,800 GPD water makers.

Sanitation is engineered around a Head Hunter toilet system, with a Head Hunter or Hamman or similar USCG-certified Type II MSD installed. The black water tank is of steel construction, integral with the hull, fitted with a 38 mm (1 1/2-inch) vent led into the deck stack and mast, with stop valves at tank connections. Tank discharge is managed by one diaphragm pump actuated by high and low level switches that also trigger indicator lights and an audio alarm; there is no automatic pump-out, and pumps are manually controlled. Discharge is via a Y-valve either overboard below the waterline as far aft of the water maker inlet as possible through a vented loop using the black water pumps, or to a deck plate for shore-side pump-out; the vent from the vented loop is plumbed back into the main vent. The black tank includes access hatches, one for each frame bay, sized for easy maintenance. The gray water tank is likewise steel and integral, with a diaphragm pump of the same make and model as the black water pump, and two level switches—high and low—for automatic operation with a manual override. Gray water discharges directly overboard below the waterline through vented loops. Sinks and showers have individual traps and drain to the gray water tank; air conditioning condensate and refrigerator condensate pans from chill and freeze boxes also drain to the gray tank via a separate common drain line with appropriate traps. Galley sinks have oversized drains and discharge to the gray water tank or directly overboard through a Y-valve, and the dishwasher and washing machines also discharge either to the gray water tank or directly overboard via a Y-valve. No other drains connect to the galley sink and dishwasher drains.

A dedicated air compressor powers the air horns, with quad horns and an auto fog system, and outlets are provided in the engine room and on the boat deck. Aft main saloon and skylounge doors are stainless steel automatic sliding units, while weathertight and manual watertight doors are custom yard-built. Exterior decking features a 15 mm finished teak surface on the swim platform, the stairs to the lower aft deck, the lower aft deck, and the lower side decks up to the boat deck, with the boat deck and all other deck areas finished in durable non-skid paint.

Structure general

Engineered for unwavering strength, the hull carries a full-length 3/4 inch by 10 inch keel paired with a 3/4 inch by 10 inch stem, while floors are executed in 1/4 inch plate and the skeg is built with 5/16 inch sides and a 5/16 inch cross section. Bottom plating in 5/16 inch plate rises cleanly to the chine, with side and transom plating in 1/4 inch and the main deck clad in 1/4 inch plate. Bulkhead plating combines 1/4 inch plate and 3/16 inch, the tank top plating is 1/4 inch, and transverse frames at the deck and sides are 3 inch by 3 inch by 5/16 inch, complemented by transverse frames at the floors in 1/4 inch. The engine foundation measures 8 inch by 3/4 inch, supported by 5/16 inch longitudinal floors, 3 inch by 3 inch by 5/16 inch deck girders, 5/16 inch bottom longitudinals, and side longitudinals in 3 inch by 3 inch by 5/16 inch or plate, with deck longitudinals at 5 inch by 3 inch by 5/16 inch. Bulwark frames are formed from 4 inch by 1/4 inch plate, bulwark longitudinals are 3 inch by 1/4 inch, and the bulwark cap plate is a 2 1/2 inch stainless steel pipe. Both vertical and horizontal bulkhead stiffeners are corrugated, hawse piping ranges from 4 inches to 5 inches, anchor plates are stainless steel, and the chain locker is 5/16 inch. The profile is finished with rub rails (9"x3"x9") x 1/4 inch, elegantly capped in polished stainless steel.

Above, the superstructure is shaped for rigidity and refinement with cabin side uprights, cabin side longitudinals, cabin top transverse framing, cabin top girders, and cabin top longitudinals all in 4 inch by 1 1/2 inch by 3/16 inch, while cabin side plating and cabin top plating are both in 5 mm.

For absolute security at sea, the watertight compartments comprise the forepeak, fresh water tanks, bow thruster compartment, guest stateroom compartment, master stateroom compartment, fuel oil tanks, engine room, and steering gear compartment.

Piping systems

Engineered to exceed classification standards, the yacht’s piping architecture is executed with precision, and there is no plastic piping in the engine room. For seawater service, copper‑nickel 90/10 pipe is specified with welded or flanged joints and threaded or flanged connections, with threaded interfaces minimized wherever possible. Sea cocks are in copper‑nickel 90/10, and every valve is ABS type‑approved for its specific duty. Where copper‑nickel lines penetrate steel decks or bulkheads, a steel sleeve approximately 350 mm in length, of larger diameter than the adjoining pipe, is fitted to safeguard integrity and longevity.

Scupper drains are fabricated in steel or aluminum with PVC piping, and stainless‑steel grates are set flush on deck; there are no sea cocks on the main deck scuppers, and all connections are hard‑plumbed. For internal scuppers, steel or aluminum threaded fittings and plastic piping are employed according to location, and the system categorically excludes hose‑and‑clamp connections.

Fuel and lube oil systems utilize steel pipe with welded or flanged joints and steel fittings, while engine‑room valves are stainless steel, true union ball type, ensuring robust, precise control.

The hydraulic installation is built around HERMETO high‑pressure seamless steel pipe with socket‑welded joints, complemented by marine‑grade hose connections sized to system pressure, HERMETO high‑pressure steel fittings, and 316L stainless steel true union ball valves for absolute reliability under load.

In the air‑conditioning plant, copper‑nickel piping serves seawater runs within the engine room, CPVC is used in the engine room for chilled‑water circuits, CPVC is continued outside the engine room, and flow is managed by CPVC or bronze ball valves.

Black and gray water lines are executed in PVC DWG (schedule 40) with solvent‑welded joints, employing steel/plastic flanged and plastic/plastic union connections, welded sch 80 steel sea cocks, and PVC true union ball valves to ensure clean, serviceable runs.

For fresh water, both hot and cold, CPVC (schedule 80) pipe is fitted and wrapped in l2 mm insulation, with solvent‑welded CPVC joints, union connections throughout, and polypropylene or CBVC true union ball valves for dependable, drip‑free service.

The fire‑main is executed in copper‑nickel 90/10 with welded or flanged joints and threaded or flanged connections; where fitted, sea cocks are copper‑nickel 90/10, and valves are bronze to meet the rigors of emergency duty.

The bilge system draws through copper‑nickel 90/10 seawater intakes with galvanized pickups, with welded or flanged joints and threaded or flanged connections throughout; where installed, sea cocks are copper‑nickel 90/10, and valves are bronze, delivering uncompromising durability and performance in the harshest conditions.

Noise and vibration criteria

Underway, with the main engine in operation at 85% of its maximum continuous rating and one generator in operation, the yacht preserves an impressively hushed ambiance: the salon registers 65 decibels (A-weighted), the wheelhouse records 60 decibels, guest staterooms measure 62 decibels, and the owner's stateroom holds at 64 decibels. Dockside, with the main engines shut down, one generator running, and the air-conditioning operating at half speed, the serenity deepens further, with the salon at 55 decibels (A-weighted), the wheelhouse at 50 decibels, guest staterooms at 50 decibels, and the owner's stateroom at 52 decibels.

Electrical system

The yacht’s AC network is a 380/220 VAC, three‑phase plus ground, four‑wire, 50 Hz system, with power supplied by two diesel‑driven generators or from two 100‑amp sources. Each source is equipped with two seventy‑amp circuit breakers located within seven feet of the inlet, and the inputs are engineered so they cannot backfeed to one another. Power is distributed on a four‑wire arrangement, enabling single‑phase equipment to be served from one phase and the neutral at 220 VAC.

All cabling is installed in accordance with ABS rules, using thermoplastic‑coated conductors rated to 75°C in the engine room and 60°C elsewhere, fully compliant with ABS standards. High‑voltage cables are segregated from lower‑voltage runs, clearly identifiable, mounted on an approved cable support system, and provided with a continuous metallic screen, sheath, or armor effectively bonded to earth to enhance personnel safety.

Switchboards and all electrical panels are custom‑built, dead‑front, and drip‑proof, of approved regulatory construction, and arranged for ready access to all devices for replacement and service. Components—including selector switches and magnetic‑type circuit breakers—are marine‑approved, with all breakers, switches, and indicators clearly labeled by function. Wherever possible, switchboard interconnections are executed with properly sized copper bus bars. The switchboard is divided into two primary circuits—circuit number one and circuit number two.

Low‑voltage supply is equally robust. Each main engine is served by a separate bank comprising four 12‑volt batteries configured as two 8D marine‑grade 12‑volt units in series per bank, with full paralleling capability. Generator starting power is delivered by four 8D marine‑grade 12‑volt batteries, two for each generator, wired to permit paralleling. Electronics are supported by two 8D marine‑grade 12‑volt batteries wired in series, with a 24 VDC distribution panel in the Pilot House dedicated to electronics, navigation lighting, and Pilot House lighting. House service is provided by two 8D marine‑grade 12‑volt batteries.

Charging is handled with precision: one 220 VAC 50 Hz/24 VDC 60‑amp charger for the main engine batteries supplemented by the engine alternators, one 220 VAC 50 Hz/24 VDC 30‑amp charger for the generator batteries, and one 220 VAC 50 Hz/24 VDC 30‑amp charger for the electronics batteries. Battery chargers are Sentry or Mastervolt. An Atlas or similar 60 kVA power conversion system is integrated into the installation. For added assurance, a 24‑volt DC emergency lighting system—independent of all other lighting circuits—is installed in full accordance with the classification society’s regulations.

Electronics and navigational equipment and AV

The comprehensive electronics package, encompassing all navigation and communication systems, is to be supplied by the owner, with selection and integration aligned to the published Electronics and AV allowances.

Allowances

Allowances are thoughtfully allocated to ensure a refined finish throughout. Carpet with pad is budgeted at $100.00 per sq. m, while granite flooring and countertop are allotted at $100 per sq. m. Interior settee fabric and/or Brazilian calves leather carry an allowance of $90.00 per sq. m. A dedicated budget of $30,000.00 covers soft goods, including wall, overhead, and window treatments. Electronics and entertainment are assigned $280,000, complemented by $6,000.00 for cable runs and equipment installation. The lighting allowance comprises exterior light fixtures at $50.00 each, with a total of 100 fixtures, together with interior light fixtures budgeted at $12,000.00. The galley equipment allowance stands at $28,000.00. Hardware allowances include $30,000.00 for plumbing and bathroom fixture hardware and $12,000.00 for interior hardware. A tender allowance of $85,000 is designated for two tenders, including a life boat. Note: $ means U.S. Dollars.
