JOHNSON 80' FLYBRIDGE wFISHING COCKPIT - Johnson FOR SALE

FOB Taiwan pricing for this luxury motor yacht. Duties and tariffs excluded.

I. Hull & deck – exterior general

The foredeck and side decks are laid in 14 mm teak, while the ground tackle is handled by stainless steel and Nylac integral rollers with a chain stopper and a groove machined into the roller, fed by 250 feet of 3/8" galvanized chain to a single Maxwell hydraulic VWC4000 windlass and a single 120 lb stainless steel anchor. A fresh‑water anchor chain washdown is complemented by a foredeck outlet for hose attachment. Heavy‑duty 316# stainless steel elliptical handrails and stanchions pair with 316# stainless steel cleats and fairleads, augmented by two extra pop‑up cleats on the aft platform. The superstructure features black tempered safety glass, laminated 5 mm + 5 mm, and a stainless steel pneumatic saloon sliding door operated by push button with integrated safety sensors, plus a pantograph‑style side door in the deckhouse to port only. Manship elliptical stainless steel port lights, a stainless steel rub rail with rubber insert around the hull‑to‑deck joint, and twin 24 V Maxwell VC1500 stern capstans underscore robust detailing. The aft deck invites relaxation with seating upholstered in Sunbrella outdoor fabric, a removable cover, and a matching table with protective cover, all subtly lit by low‑level LED courtesy lights on the side and aft decks. Teak‑tread stairs lead to the flybridge, while a large teak‑inlay swim platform with a curved stairway to the aft deck serves waterside living, complete with hot and cold swim shower and a stainless steel swim ladder. Practicalities abound with a lazarette dedicated to fender stowage and a single set of engine and thruster controls positioned on either the starboard or port aft coaming.

II. Underwater gear

Below the waterline, twin five‑blade bronze propellers work in concert with two bronze P‑brackets and dual Aquatech 22HS stainless steel shafts at 3 1/2" diameter. Shaft integrity is ensured by Tides Marine shaft lip seal glands sized 3 1/2" x 5 1/2", paired with Duramax Marine cutlass bearings. High‑performance stainless steel rudders built on Aquatech 22 stocks carry Tides Marine shaft lip seal glands and bronze bearings. The bottom is protected by Sea Hawk primer systems Tuff Stuff 1284 Grey or 1285 White and finished with Sea Hawk self‑polishing copolymer antifouling Cukote 3445 Black or 3430 Dark Blue, complemented by a 3" boot‑top stripe in your choice of black, blue, or red. A full cathodic bonding network ties to zinc anodes, while seawater strainers safeguard engines, genset, and air‑conditioning, and seacocks are fitted to all underwater penetrations. Maneuverability and comfort are assured by ABT 12" 38 HP hydraulic bow and stern thrusters and ABT stabilizers with 250/6 square‑foot fins, while an underwater exhaust system with mufflers and bypass preserves quiet operation. Steering authority arrives via Hynautic hydraulic steering, model PSHC5803, with power steering assist.

III. Flybridge

The flybridge is finished with an FRP non‑skid deck and an instrument console protected by a Perspex cover, accessed via a stainless steel hatch and teak‑tread stairs from the saloon. Generous FRP seating with Sunbrella outdoor cushions and a matching table flanks a wet bar featuring a sink, ice maker, and refrigerator, all served by Hynautic PSHC5803 hydraulic steering, full engine controls and instrumentation, and a magnetic compass. Navigation is your choice of Garmin or Raymarine suites. The Garmin package comprises twin GPSMAP 8617 17" fully integrated multi‑touch MFDs, one GMI 20 marine instrument display, one GMR 404 xHD open‑array radar with 4 kW pedestal, one GMR Fantom 4" 40 W 72 NM solid‑state open‑array radar, one Garmin VHF 210 marine radio, one Garmin AIS 600 Class B transceiver, one GHP 20 marine autopilot system with SmartPump, and one Garmin GSD 25 marine network sounder rated 2 kW. Alternatively, the Raymarine package provides two Raymarine GS 15.4" Glass Bridge multifunction displays with Wi‑Fi, one Raymarine i70 multifunction color display, one 48" HD color open‑array with 4 kW pedestal, one Raymarine Ray218E VHF, one Raymarine AIS 650 Class B transceiver, one Raymarine Evolution autopilot with P70R control head and ACU‑400 actuator control unit, and one Raymarine CP100 DownVision fishfinder. Comfort and control are further refined with a stabilizer control and monitoring display, bow and stern thruster controls, a CCTV system with an eight‑channel network DVR and five cameras—two in the engine room, two on the aft deck, and one on the foredeck facing the winch—plus a rudder indicator and a Headhunter TS‑3000 series fuel gauge. An acrylic deflecting windscreen, PAR 60010‑2024 searchlight with joystick control, and a Fusion entertainment system featuring the MS‑AV700I DVD/receiver with Fusion‑Link, four MS‑CL602 6" marine ceiling speakers, and an MS‑BT200 Bluetooth adapter elevate life on deck, joined by a pop‑up TV cabinet with a 32" LCD and Apple TV. Nighttime ambiance comes from low‑level 24 V LED courtesy lights, LED lighting under the radar arch, a stainless steel grab rail around the bar, and LED indirect lighting beneath the wet bar and seating. Signature touches include a Buell air horn, a Lebroc LX double‑wide two‑seater helm seat, a stainless steel steering wheel, and a hydraulic davit by BENSENZONI with 1,322 lbs lifting capacity at 24 V.

IV. Engine propulsion & E/R equipment

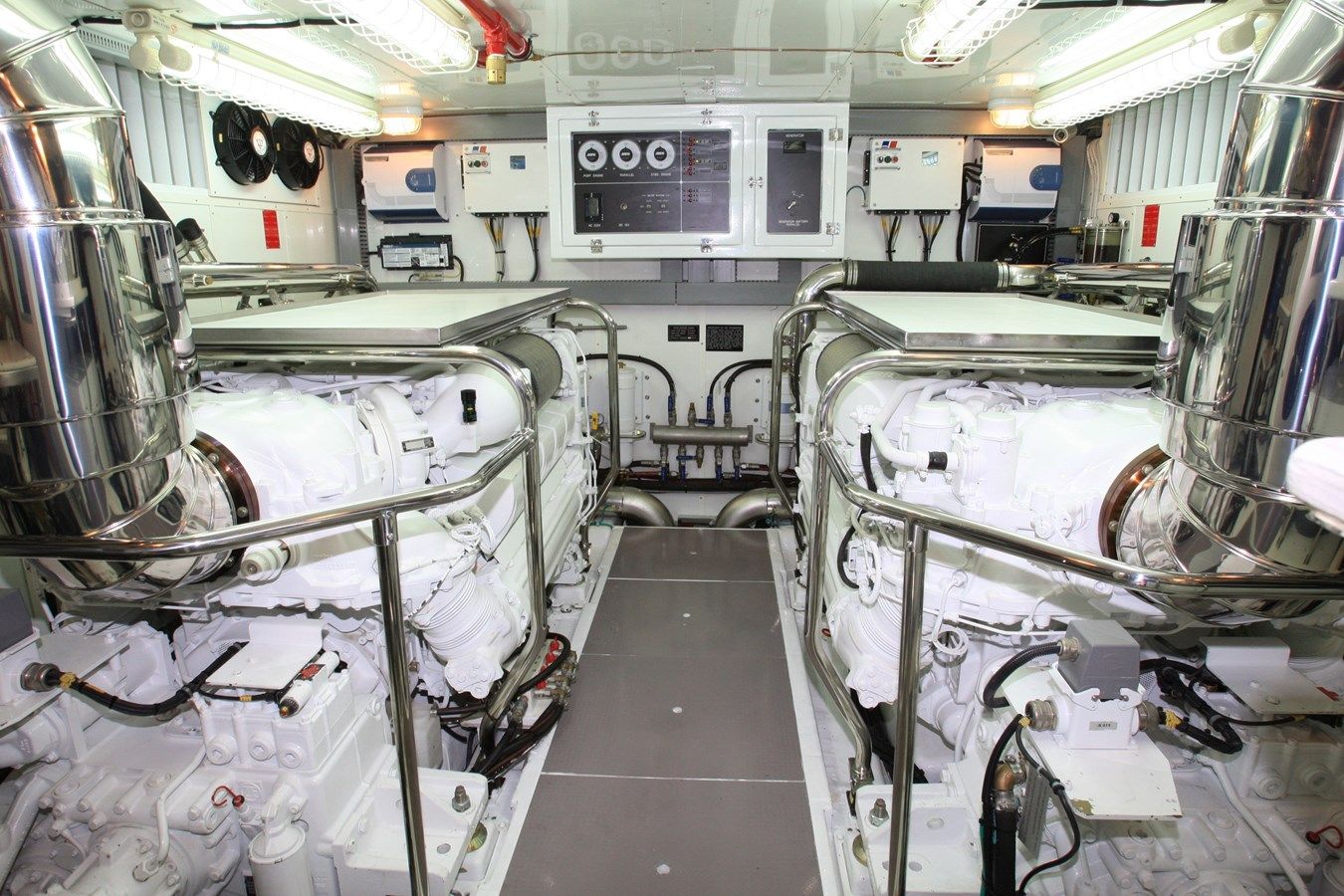

Power comes from twin MAN D2842 LE433 engines rated 1,550 HP at 2,300 RPM, each turning through a ZF2050A transmission with a 2.029:1 ratio. Each engine is protected by its own dual Racor filters, and each genset is served by dedicated Racor filtration as well. The engine room is comprehensively insulated with Van Cappellen–designed double sound and heat materials using foam and lead combination, finished in bright white with grey non‑skid rubber flooring and planned for exceptional space and serviceability. Fuel tanks with electric sending units are monitored via the Headhunter TS‑3000 series, while a SeaFire FM‑200 automatic fire‑extinguishing system and Delta “T” extractor fans with automatic vent closure in case of fire provide safety and ventilation. Illumination is assured by AC fluorescent lights and DC LED dome lights. A manual bilge pump draws from the lowest point when the vessel is at rest, and a high‑volume AC fresh‑water pressure pump is backed up by a 24 V DC pump, specifically a Headhunter March 5 M5‑115 AC pump and a Groco PSR 4000004‑24 24 V DC pump. Climate control is via chilled‑water Cruisair air conditioning rated 96,000 BTU. Long‑range autonomy is supported by twin Aqua Whisper DX 450 watermakers at 450 GPD each. Maintenance is simplified with an oil‑changing pump serving engines, generators, and transmissions. Electrical generation is provided by Onan QD MDKDS 29 kW 60 Hz as Generator 1, with an optional Onan QD MDKBU 29 kW 60 Hz as Generator 2. Domestic hot water arrives from two Torrid 20‑gallon heaters. An emergency tiller is fitted, and hydraulic pumps on each engine power the thrusters, stabilizers, and steering. Convenience is enhanced by a central vacuum cleaner, Nutone CV352, supporting 110 V/220 V operation.

V. Electrical

A robust 110 V/220 V AC electrical system pairs with a 24 V DC architecture, supported dockside by two 75' Glendinning Cable Masters rated 50 Amp. Dedicated chargers serve both the 24 V and 12 V circuits, while an alternator split‑charging system links to the house banks with BEP high‑charge regulators fitted. Ship’s service reserves comprise four 255 Ah 12 V gel‑cell sealed batteries, engine starting is entrusted to four 225 Ah gel‑cell sealed batteries, and the genset benefits from one 210 Ah gel‑cell sealed battery. AC sockets are distributed throughout the yacht with GFI protection where required, and selection is via a BEP battery switch. The main electrical panel consolidates AC and DC breakers across four panels—engine room, helm, AC and DC—with automatic backlighting when the door opens, while an anti‑electrolysis bonding system protects metalwork. Shore power stability is assured by two automatic isolating and booster transformers at 50 Amp each. Generating capacity includes two Onan QD MDKDS 29 kW units.

VI. Plumbing system

Onboard systems are engineered for reliability with a 100‑gallon blackwater holding tank serviced by a macerator pump and a Y‑valve for overboard pump‑out, monitored by a Headhunter holding tank level indicator. Showers drain to a dedicated sump pump, while the fresh‑water system uses marine‑grade lines and a 350‑gallon stainless steel water tank with sending unit. Sight gauges are provided for both fuel and water tanks, and a dockside fresh‑water inlet streamlines replenishment. Color‑coded piping simplifies identification, bronze intake valves serve all thru‑hull fittings, and a discharge manifold minimizes the number of thru‑hulls. Fresh‑water Sealand vacuum toilets ensure efficiency. Safety is enhanced by six high‑water bilge alarms in the engine room, forward bilge, and lazarette compartments with a mimic panel at the helm, backed by six Rule 3700 GPH bilge pumps with float switches and high‑water alarms.

VII. Interior finish

The interior is crafted in mahogany or cherry with burr wood accents and ivory lacquer, elevated by your choice of fine upholstery fabrics to create a timeless, tailored ambiance throughout.

VIII. Galley

The galley is fully appointed with a G.E. latest‑model electric refrigerator/freezer, cooktop, oven, and a microwave with extractor fan, complemented by a stainless steel sink with hot and cold water, a G.E. latest‑model trash compactor, and a G.E. latest‑model dishwasher. Power is close at hand with two double AC sockets, while abundant cupboards, drawers, and stowage keep provisions organized. Underfoot, select either a teak floor or marble floor, with overhead storage maximizing space above the galley bench.

IX. Saloon

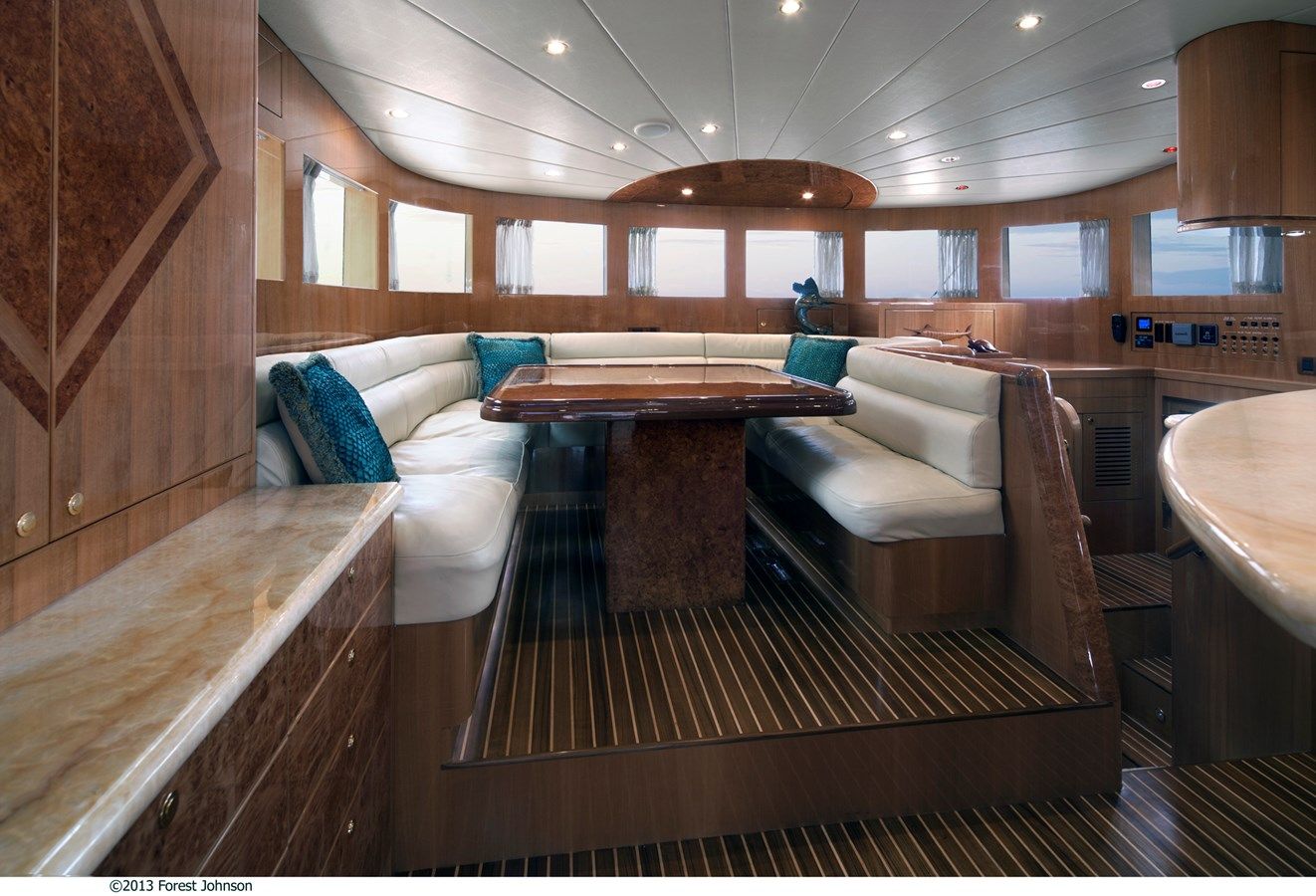

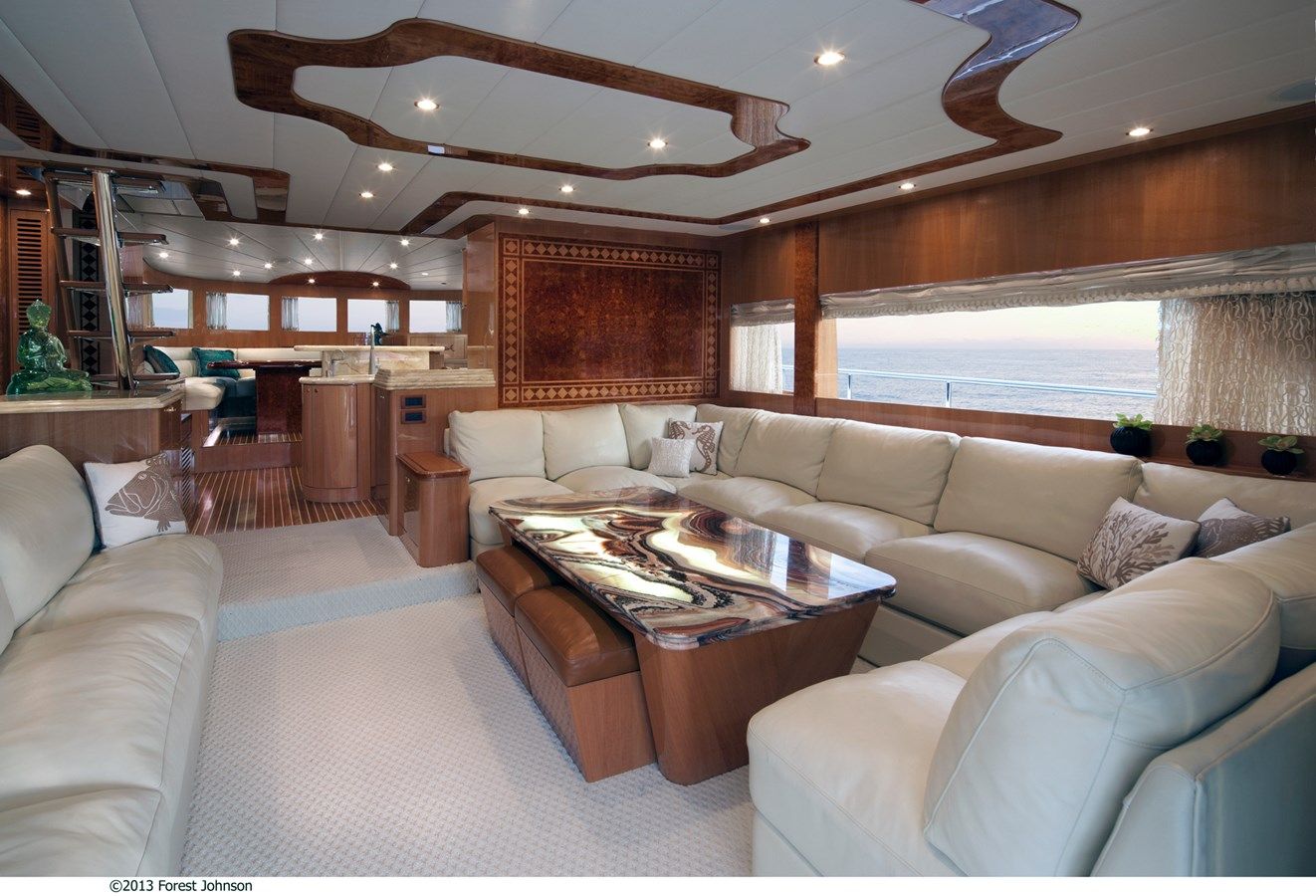

The upper saloon welcomes dining in style, accessed through a pneumatic sliding door with push‑button control and safety sensors. Entertainment is immersive with a 42" LCD TV, a Bose Lifestyle 535 Series III home theater system, a Pioneer BDP‑160 Blu‑ray disc player, and Apple TV, while the lower saloon features a high‑quality leather couch built into a graceful curve. Ship systems are centralized via the AC/DC main control panel, and the mood is perfected by low‑level 24 V LED lights and 24 V LED ceiling lighting.

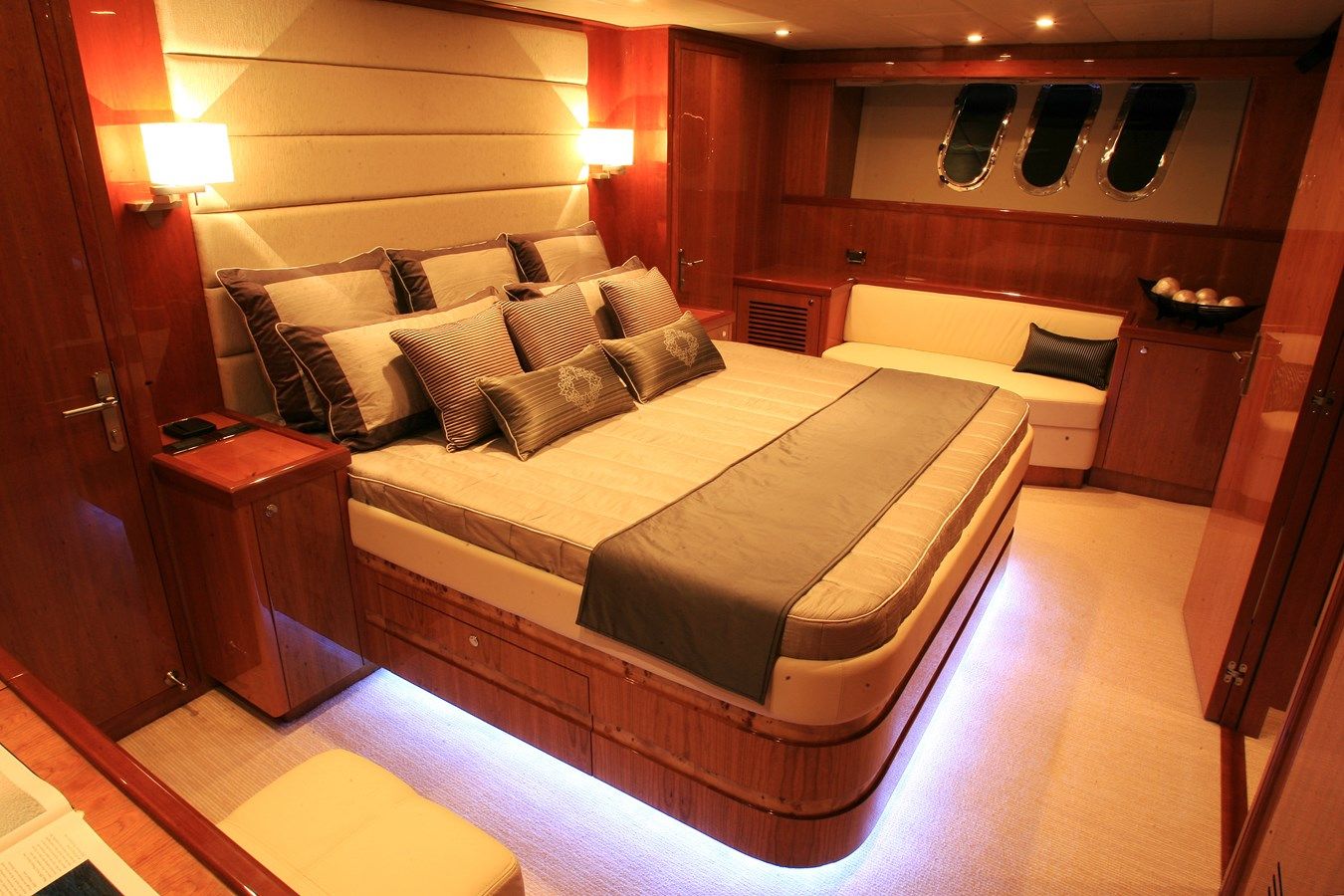

X. Master stateroom

The full‑beam master presents a king‑size berth with generous storage beneath and drawers in the base, complemented by a vanity and a comfortable couch. A cedar‑lined walk‑in closet keeps attire pristine. Illumination is by 24 V LED ceiling lighting and a pair of 24 V reading lights. Natural light filters through three Manship stainless steel side windows—two fixed and one opening—while entertainment comes via a 42" LCD TV, a Fusion MS‑205 receiver/media player with full iPod/iPhone control, four MS‑CL602 6" marine ceiling‑mount speakers, and an MS‑BT200 Bluetooth adapter, alongside a Pioneer BDP‑160 Blu‑ray disc player and Apple TV.

XI. Master en suite shower room

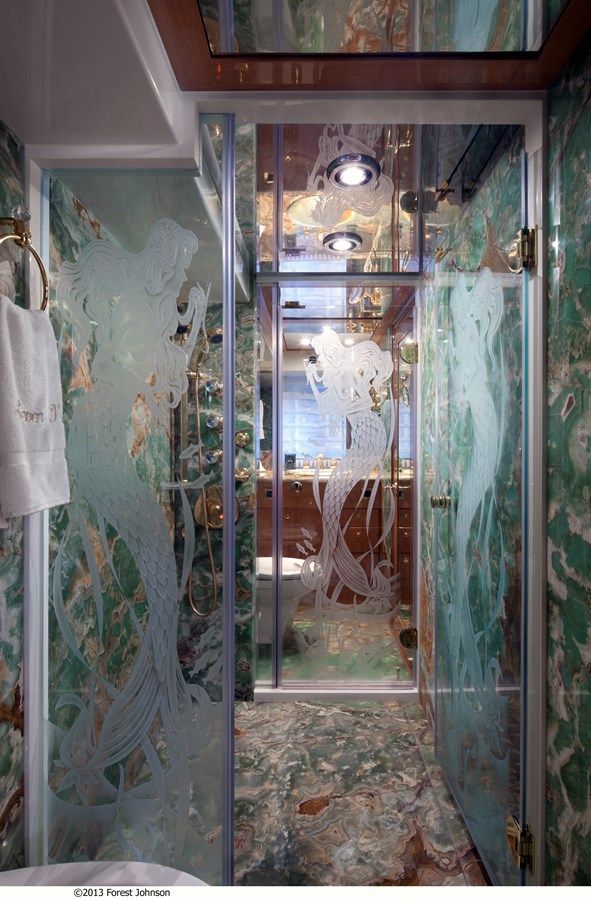

The master en suite features a Sealand vacuum toilet in bone color, a wash basin set into a marble countertop with lacquer finish above and veneer finish below, premium faucet and fittings, and mirror surfaces including a mirrored ceiling. Ventilation comes from an extractor fan, and convenience includes a GFI‑protected AC double socket. A large shower enclosure with lacquer finish and marble floors, 24 V LED ceiling lights, and a matching marble floor complete this refined retreat.

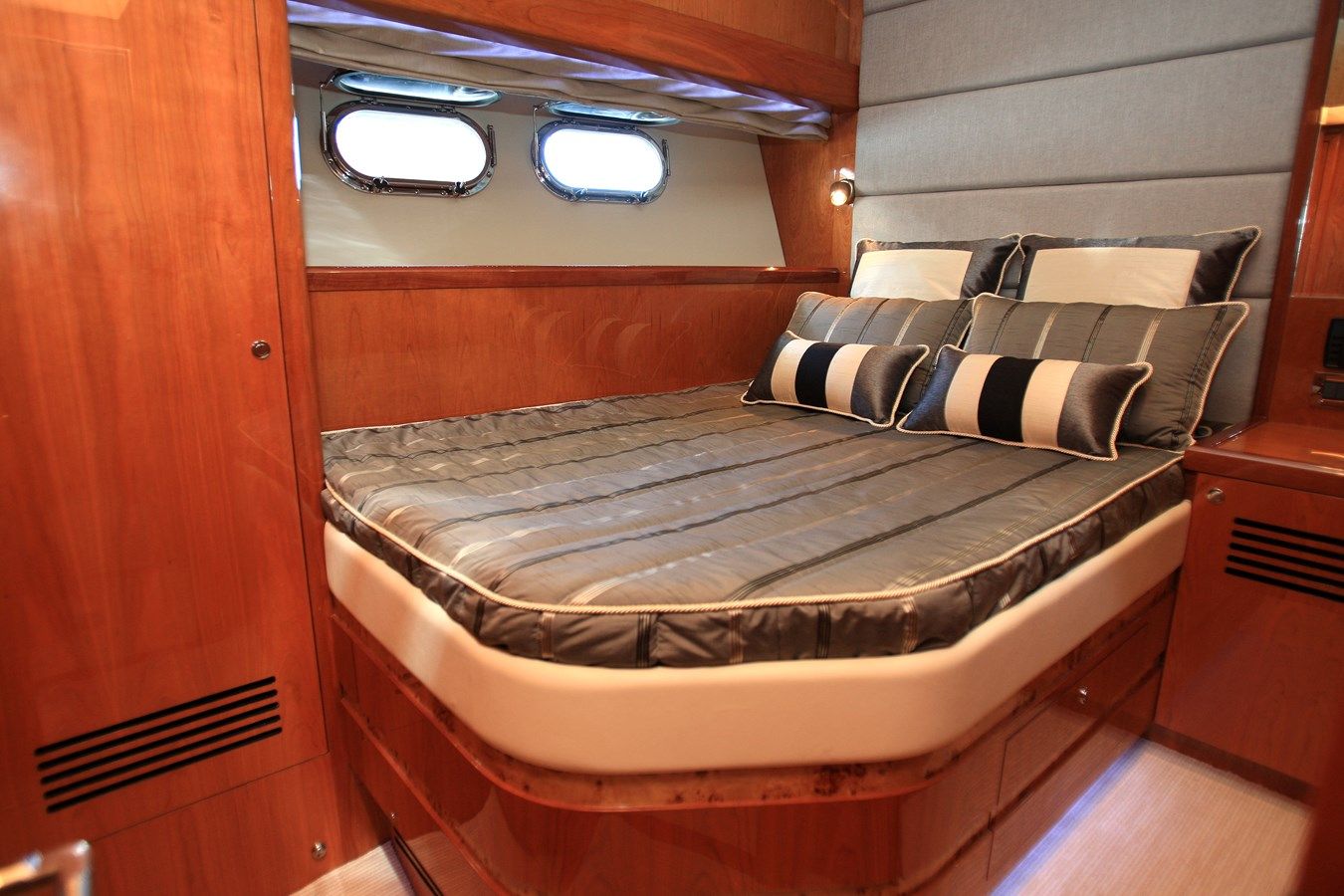

XII. Forward (VIP) stateroom

The forward VIP offers a double berth with storage beneath and drawers in the base, a cedar‑lined walk‑in closet, and a dressing table with stool. A pair of 24 V reading lights and 24 V LED ceiling lights set the mood, with AC double sockets for convenience. Entertainment is assured with a 32" LCD TV and a Fusion MS‑AV700I DVD/receiver with Fusion‑Link, four MS‑CL602 6" marine ceiling‑mount speakers, and an MS‑BT200 Bluetooth adapter, complemented by Apple TV.

XIII. Forward (VIP) en suite shower room

The VIP en suite is specified with a Sealand vacuum toilet in bone color, a wash basin on a marble countertop with lacquer finish above and veneer below, quality faucet and fittings, and mirrored accents including a mirrored ceiling. An extractor fan, a GFI‑protected AC double socket, a large shower with lacquer finish and marble floors, 24 V LED ceiling lights, and a marble floor deliver a bright, elegant space.

XIV. Port guest cabin

The port guest cabin provides two single berths with under‑berth storage, complemented by a Pullman berth for added versatility. Illumination includes two 24 V reading lights and two 24 V LED ceiling lights, while a hanging locker holds wardrobe essentials. Entertainment arrives via a 32" LCD TV and a Fusion MS‑AV700I DVD/receiver with Fusion‑Link, four MS‑CL602 6" marine ceiling speakers, and an MS‑BT200 Bluetooth adapter, plus Apple TV.

XV. Port toilet/shower room

The port shower room features a Sealand vacuum toilet in bone color and a wash basin with a marble countertop, lacquer finish above and veneer finish below, quality faucet and fittings, mirrored surfaces including a mirrored ceiling, and an extractor fan. A separate shower compartment with lacquer finish and marble floors complements an AC double socket with GFI and 24 V LED ceiling lights over a marble floor. A full‑height G.E. latest‑model washer/dryer adds true cruising convenience.

XVI. Starboard guest cabin

The starboard guest cabin offers a double berth with under‑berth storage, two 24 V reading lights, two 24 V LED ceiling lights, and a hanging locker. Entertainment is curated by a 32" LCD TV and a Fusion MS‑AV700I DVD/receiver with Fusion‑Link, four MS‑CL602 6" marine ceiling speakers, an MS‑BT200 Bluetooth adapter, and Apple TV.

XVII. Starboard toilet/shower room

The starboard shower room is appointed with a Sealand vacuum toilet in bone color and a wash basin set into a marble countertop, with lacquer finish above and veneer finish below, paired with faucet and fittings, mirrored surfaces including a mirrored ceiling, and an extractor fan. A dedicated shower compartment with lacquer finish and marble floors joins a GFI‑protected AC double socket and 24 V LED ceiling lighting over a marble floor.

XVIII. Crew quarters

Crew comfort is assured with a transom entrance door leading to quarters with two single berths, two 24 V reading lights, LED ceiling lights, an AC double socket, and a hanging locker. The en suite wet head features hot and cold water to the wash basin and shower with a marble countertop and floor, and a Sealand vacuum toilet in bone color. Entertainment includes a 24" LCD TV and a Fusion MS‑AV700I DVD/receiver with Fusion‑Link, four MS‑CL602 6" marine ceiling speakers, an MS‑BT200 Bluetooth adapter, and Apple TV.

XIX. Fishing cockpit

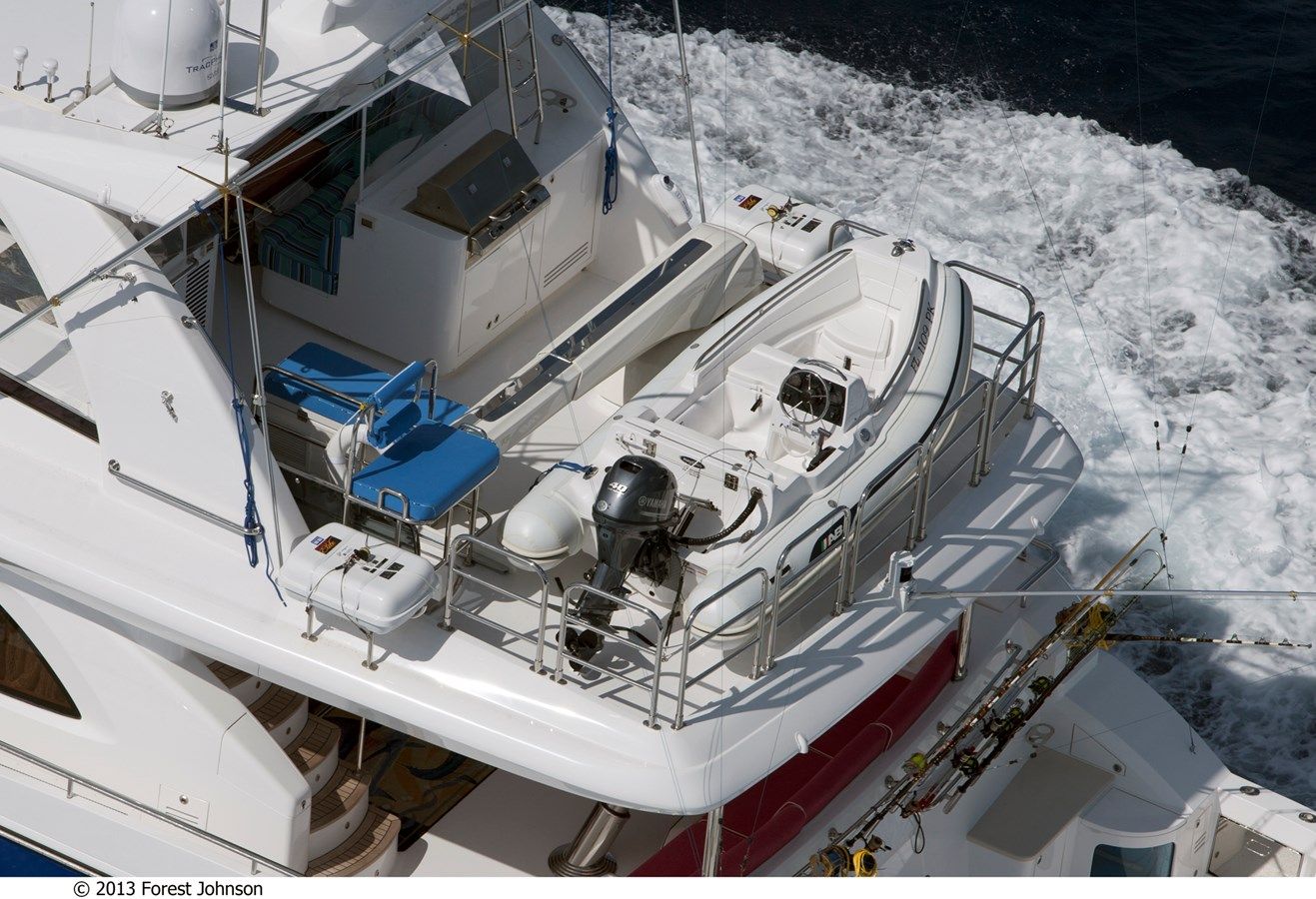

Purpose‑built for sport, the fishing cockpit includes a below‑deck catch well, a live‑bait well with pump and lights, and eight flush‑mount rod holders encircling the cockpit and rocket launcher, all set on durable non‑skid decks.

XX. Remarks

Please note this is an unbuilt new‑construction project that has not yet commenced. A comprehensive list of popular options and pricing is available, yet the standard specification above is notably complete. Depending on other yard projects, estimated completion time is approximately 9–12 months. Options are available upon request, and all specifications are subject to change without notice. The price is FOB Taiwan, and neither duty nor tariffs are included in the price.

Comment

As this is a new‑build offering, all photographs depict previous projects; exact layout, wood, and stone selections are entirely at the buyer’s discretion. Price is FOB Taiwan and includes U.S. Duty and pre‑delivery commissioning.

Disclaimer

Specifications are provided solely for informational purposes. Data has been obtained from sources believed to be reliable, but is not guaranteed by the owner or by brokers. The buyer assumes responsibility to verify all speeds, capacities, consumptions, and other measurements stated herein or otherwise supplied, and agrees to instruct agents to confirm such details prior to purchase. The vessel is subject to prior sale, price and inventory changes, and withdrawal from the market without notice.
